Installation Procedure

  1. Install the power steering gear heat shield.

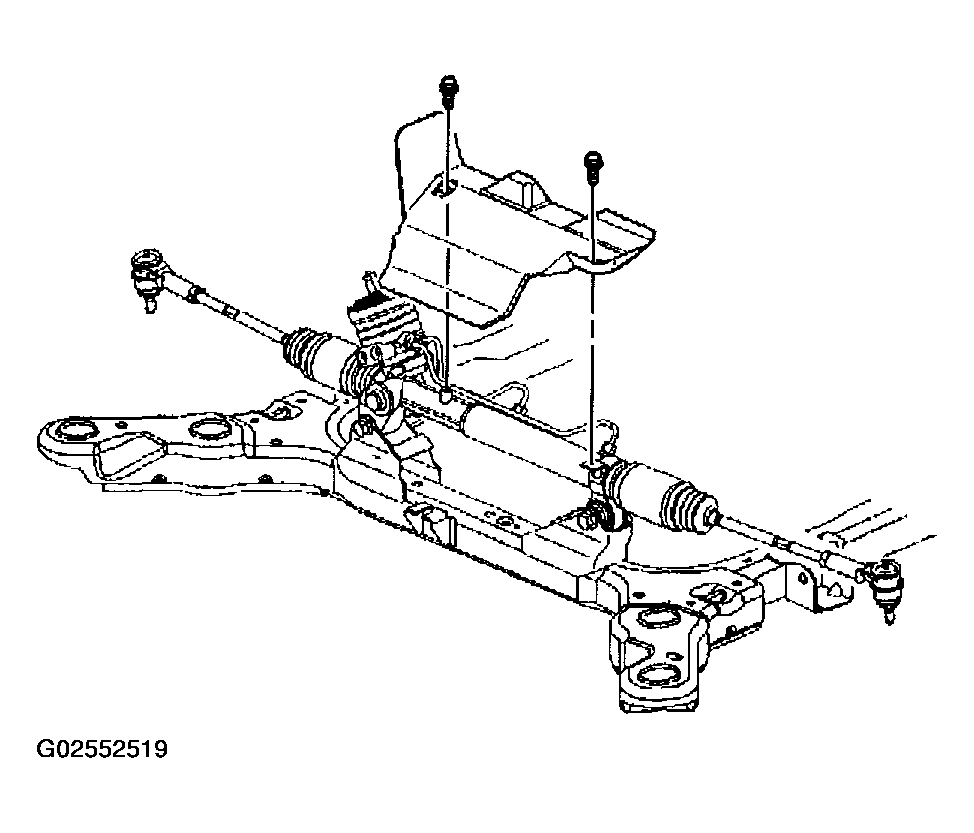

    Fig 1: Installing Power Steering Gear Heat Shield
    G02552519Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering gear heat shield mounting bolts.

    Tighten

    Tighten the power steering gear heat shield mounting bolts to 10 N.m (89 lb in).

  3. Install the electrical harness clip to the power steering gear heat shield.
  4. Rotate the stabilizer shaft into position.
  5. Install the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT in Front Suspension.
  6. Lower the vehicle.
