Upper Right Air Temperature Sensor Connector End View

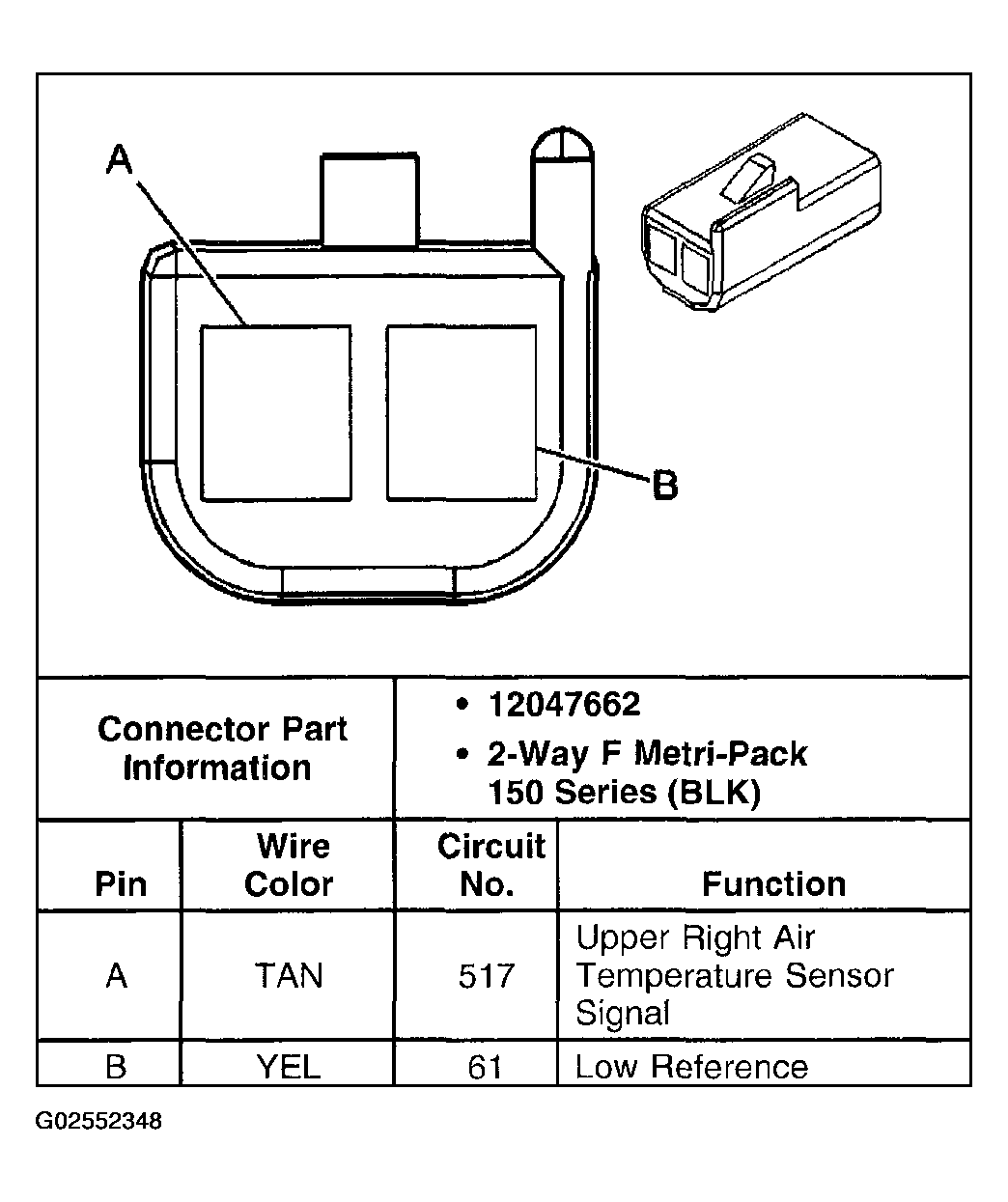

Fig 1: Upper Right Air Temperature Sensor Connector End View

G02552348

Courtesy of GENERAL MOTORS CORP.
