Transmission Fluid Temperature (TFT) Sensor Connector End View

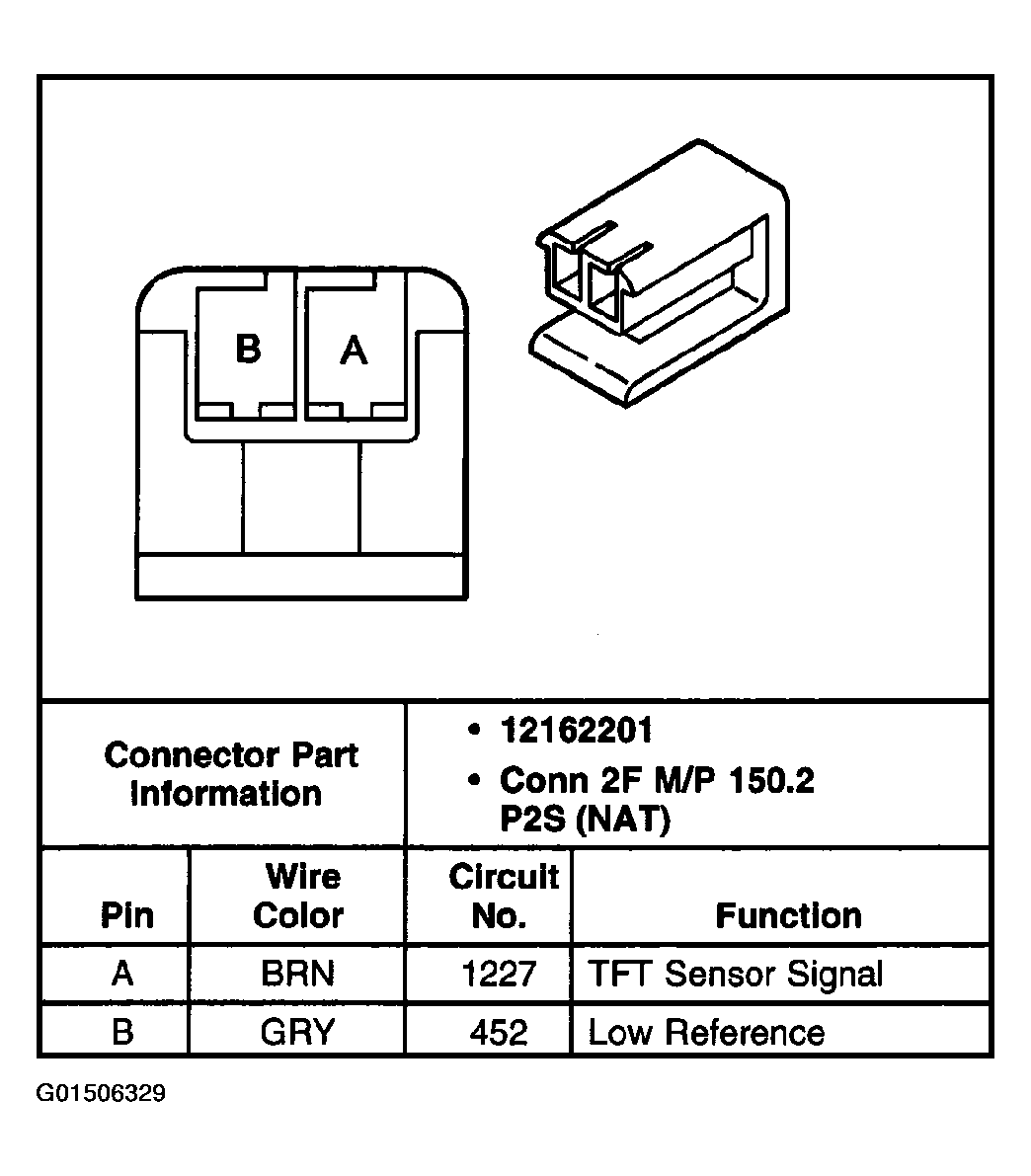

Fig 1: Transmission Fluid Temperature (TFT) Sensor Connector End View

G01506329

Courtesy of GENERAL MOTORS CORP.
