Right Air Temperature Switch Assembly Connector End View

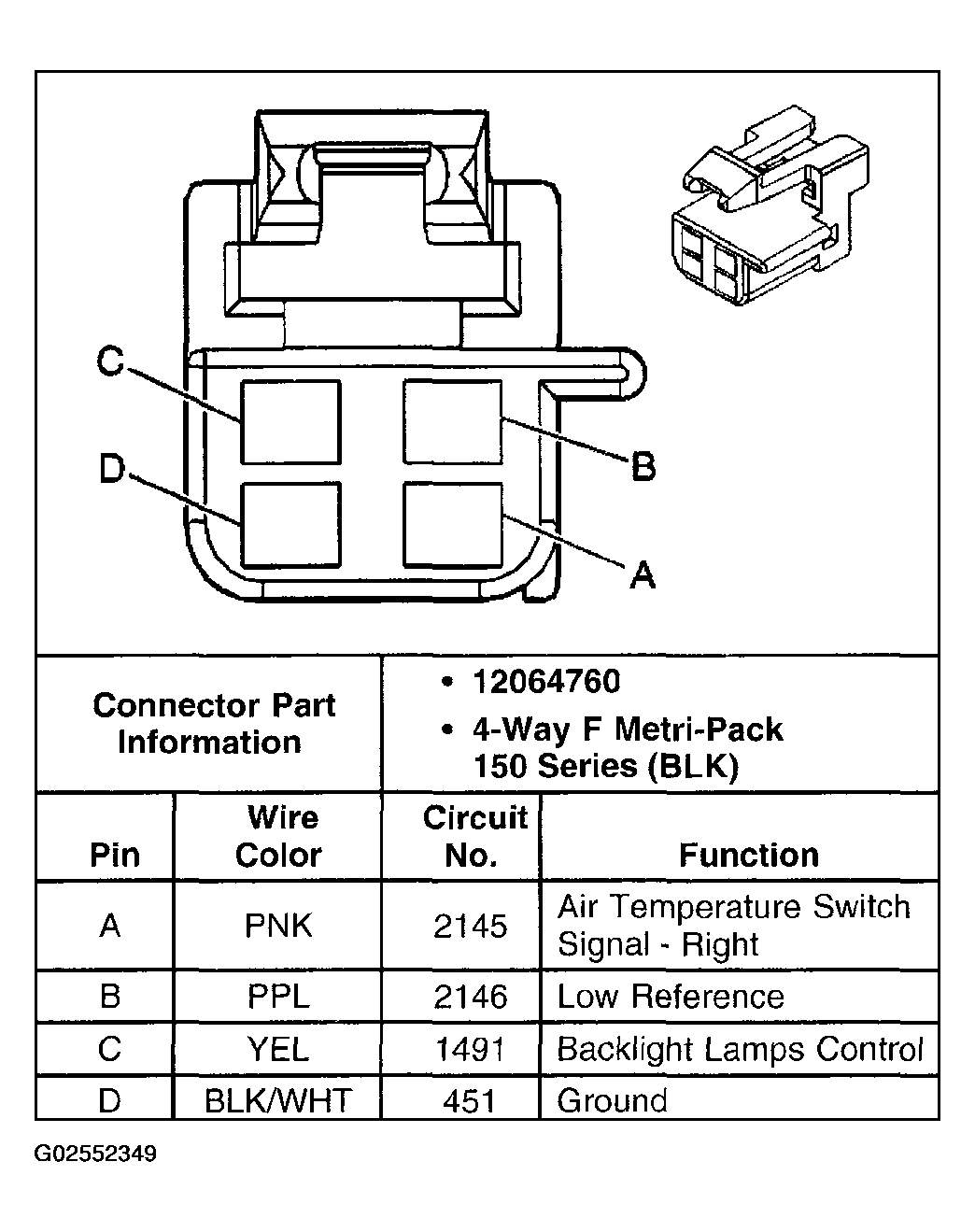

Fig 1: Right Air Temperature Switch Assembly Connector End View

G02552349

Courtesy of GENERAL MOTORS CORP.
