Power Sunroof Switch Connector End View

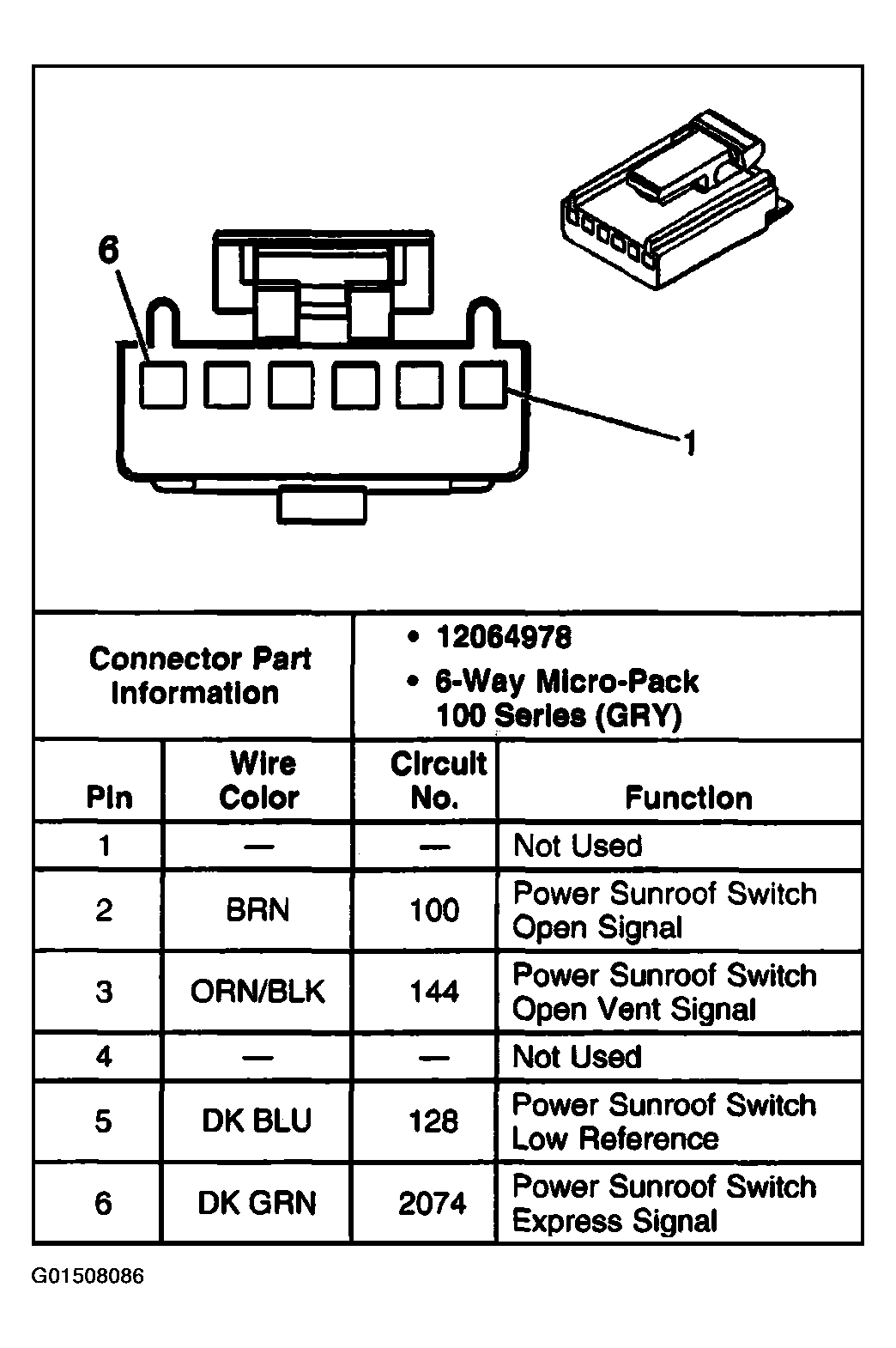

Fig 1: Power Sunroof Switch Connector End View

G01508086

Courtesy of GENERAL MOTORS CORP.
