Mode Actuator Connector End View

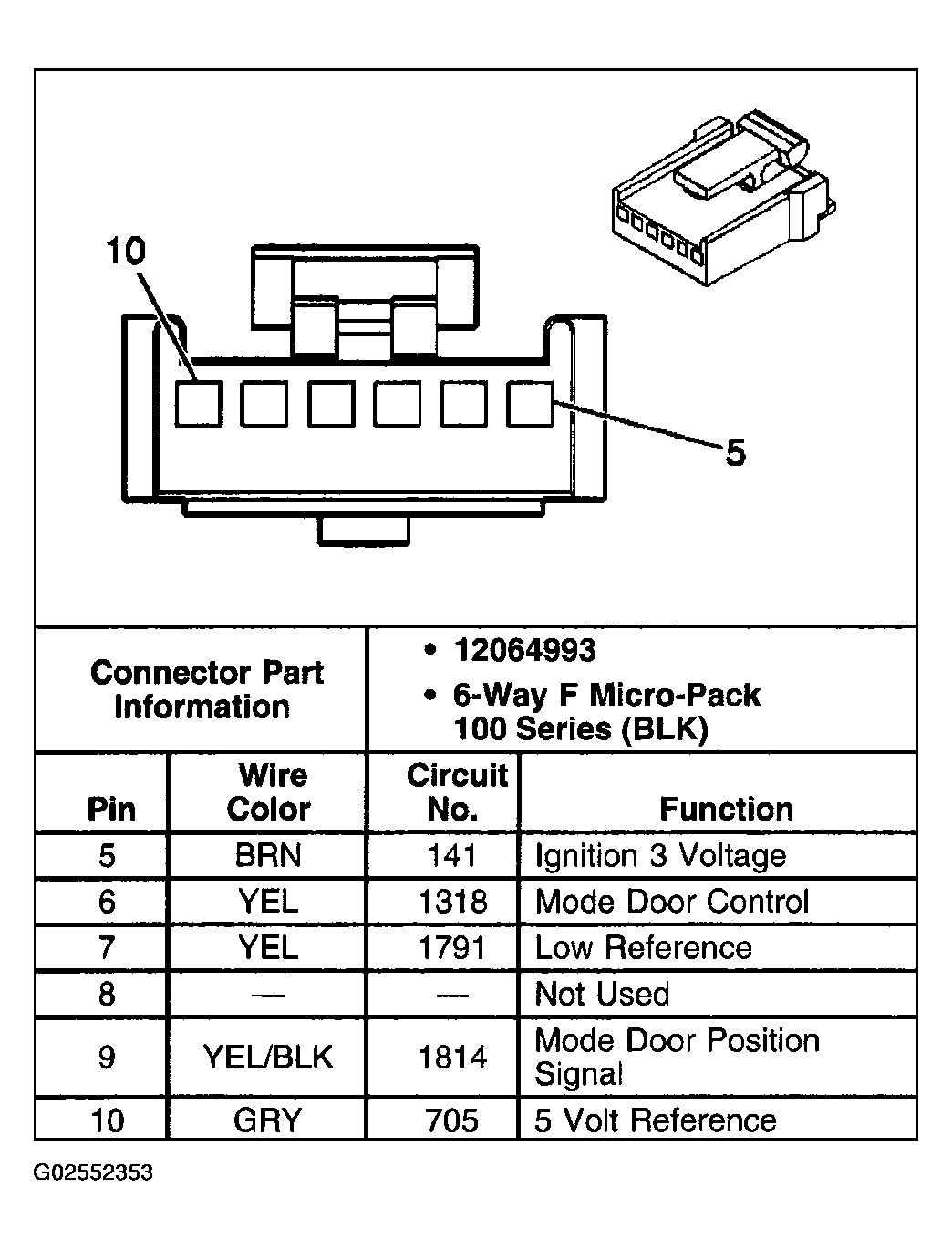

Fig 1: Mode Actuator Connector End View

G02552353

Courtesy of GENERAL MOTORS CORP.
