Lower Right Air Temperature Sensor Connector End View

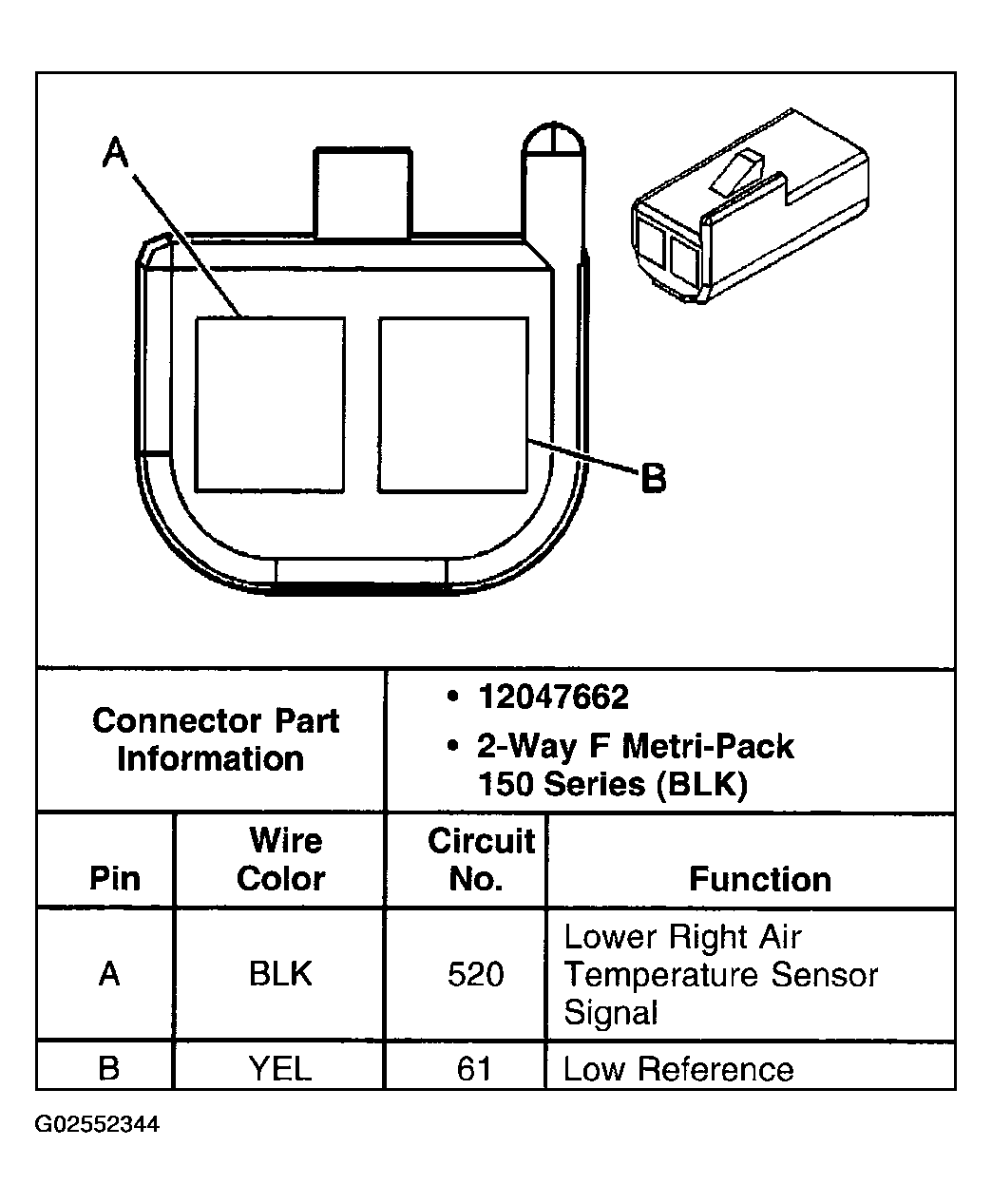

Fig 1: Lower Right Air Temperature Sensor Connector End View

G02552344

Courtesy of GENERAL MOTORS CORP.
