Lower Left Air Temperature Sensor Connector End View

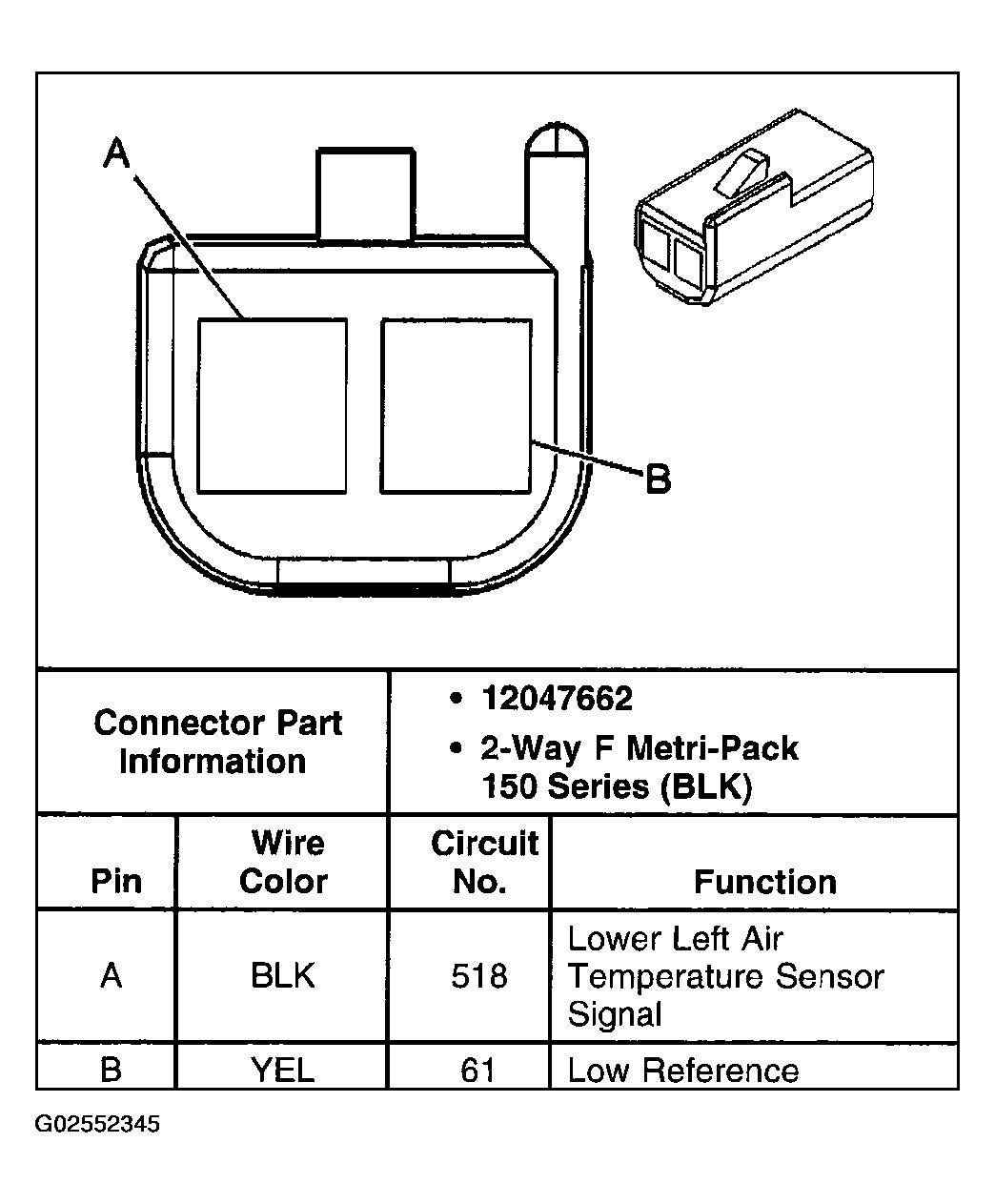

Fig 1: Lower Left Air Temperature Sensor Connector End View

G02552345

Courtesy of GENERAL MOTORS CORP.
