Internal Mode Switch (IMS) Connector End View

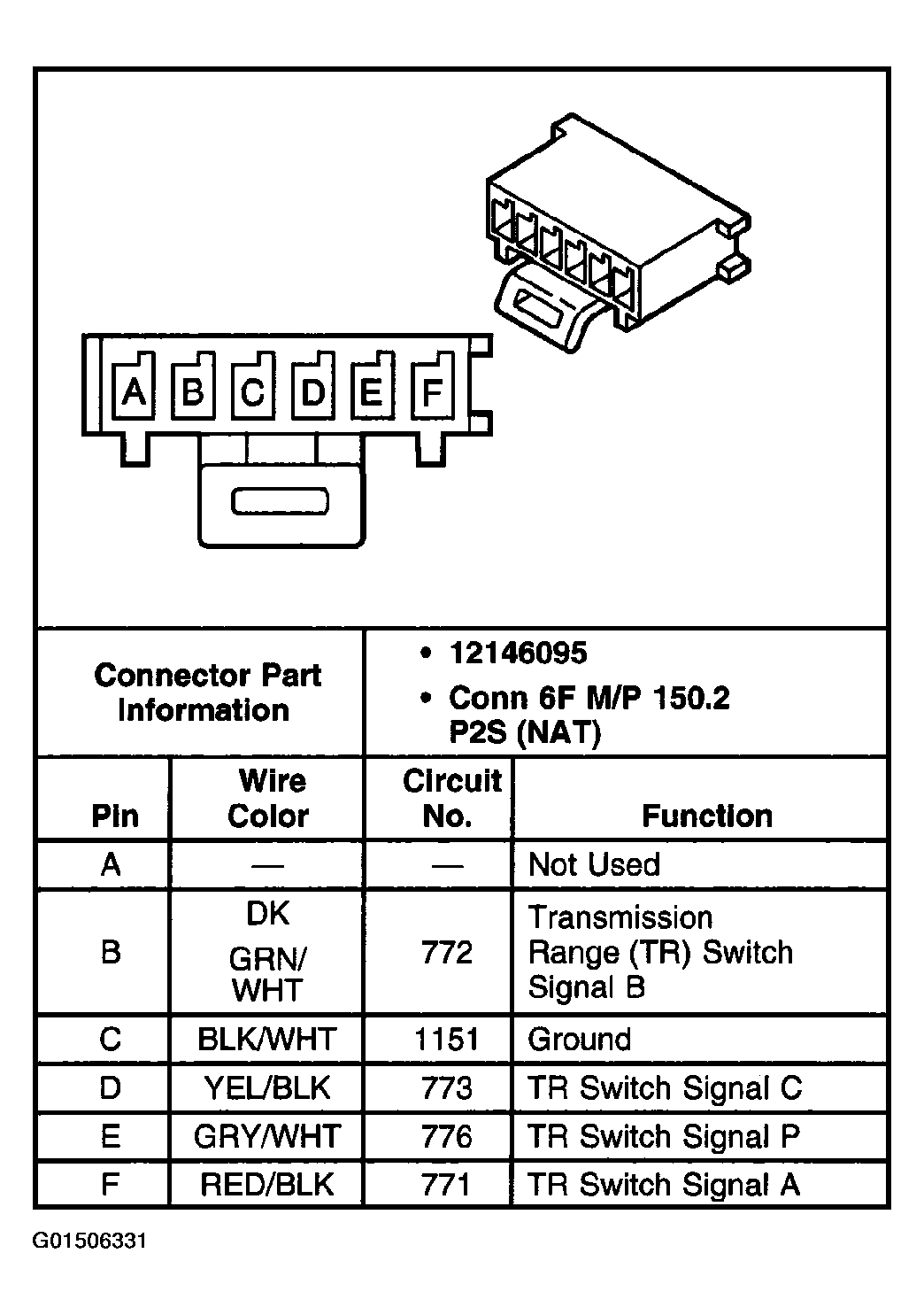

Fig 1: Internal Mode Switch (IMS) Connector End View

G01506331

Courtesy of GENERAL MOTORS CORP.
