Fuse Block - Rear Label

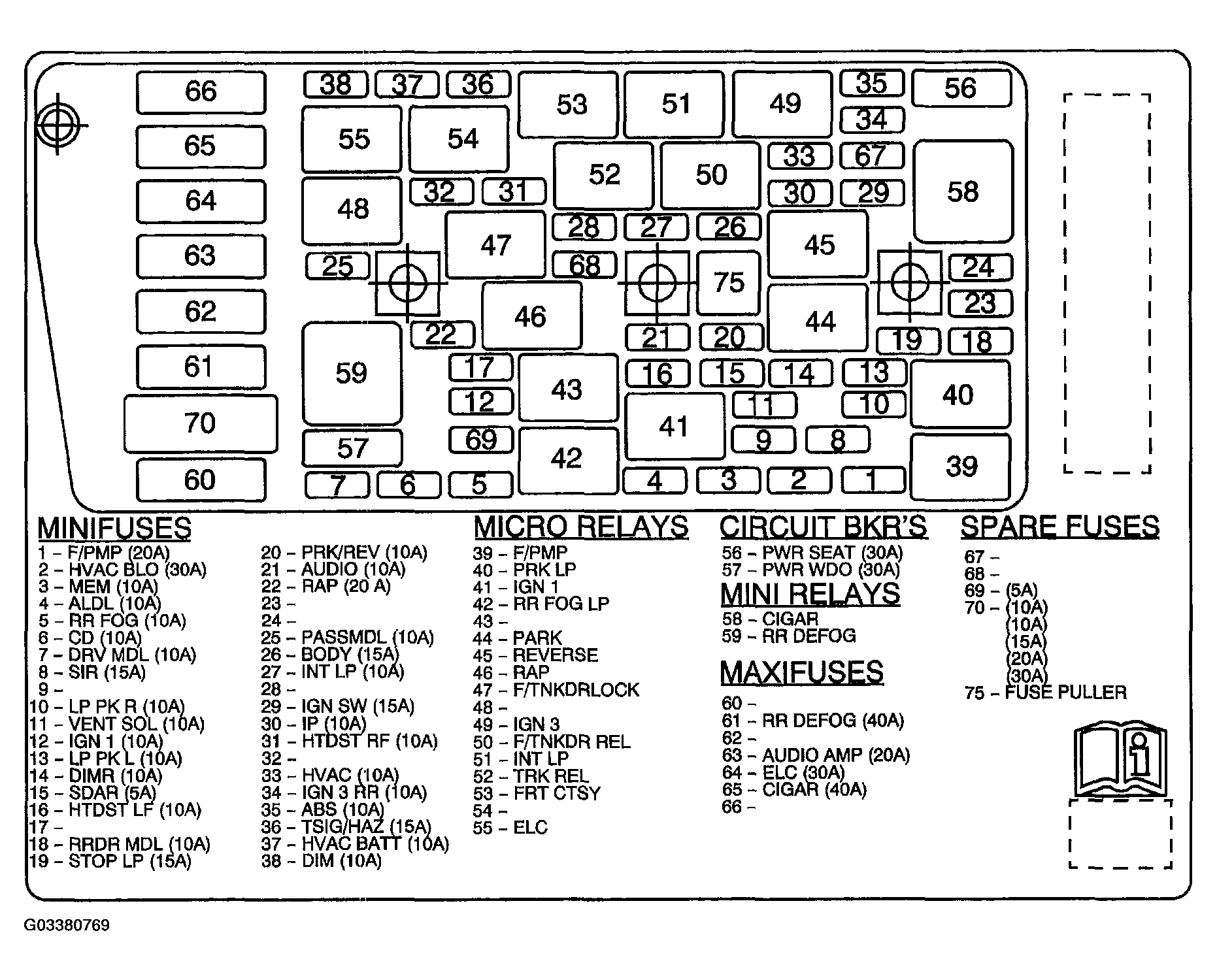

Fig 1: Identifying Fuse Block - Rear Label

G03380769

Courtesy of GENERAL MOTORS CORP.
