DTC P0222: Throttle Position (TP) Sensor Circuit Short: Notes
WARNING: This page is about a different car, the 2004 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

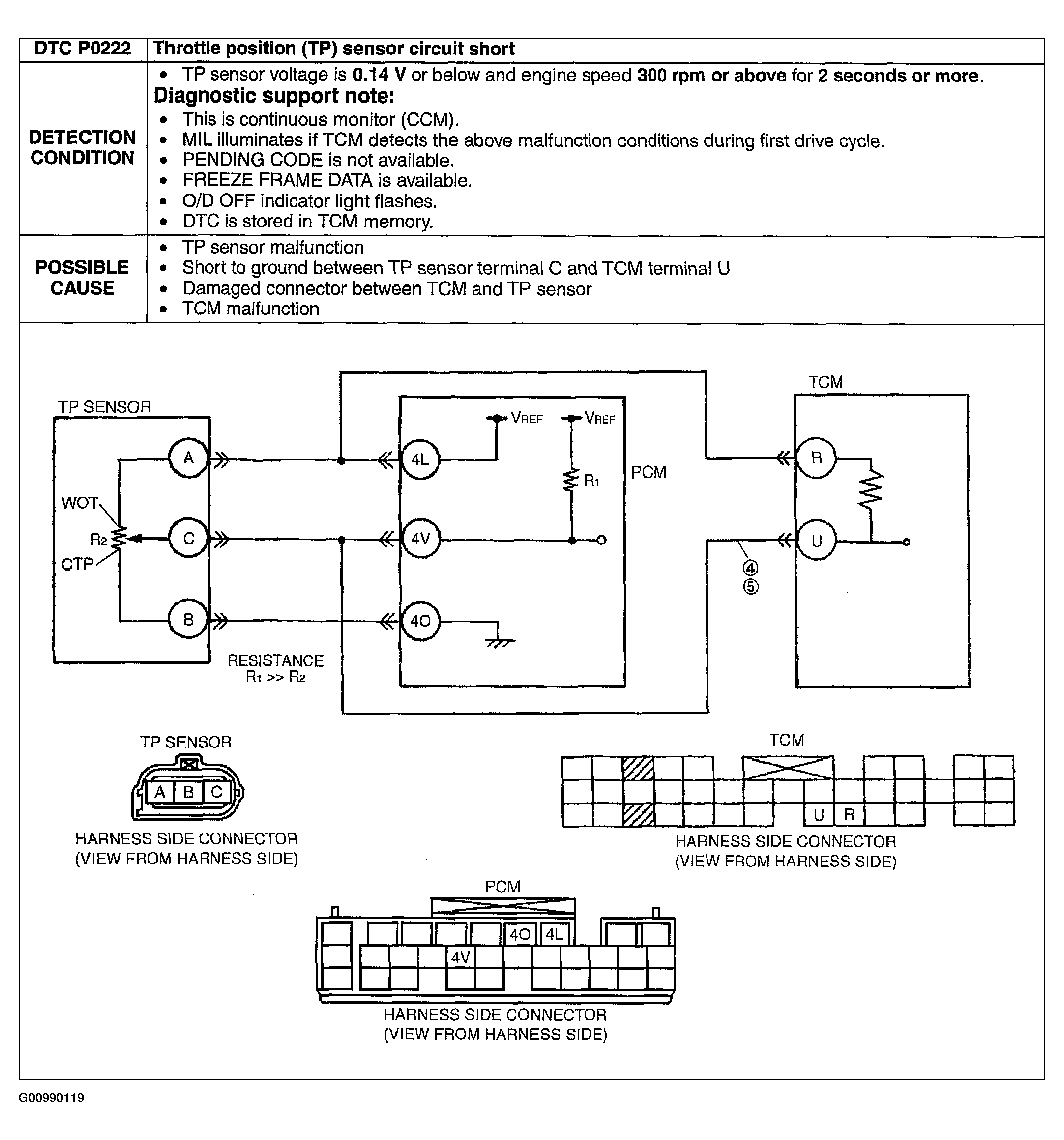

Fig 1: Description, Detection Condition & Possible Cause - DTC P0222
