Removal Procedure

  1. Remove the center console trim plate (2). Refer to TRIM PLATE REPLACEMENT - CONSOLE in Instrument Panel, Gages and Console.
  2. Disconnect the traction control switch electrical connector.
  3. Remove the traction control switch (5).

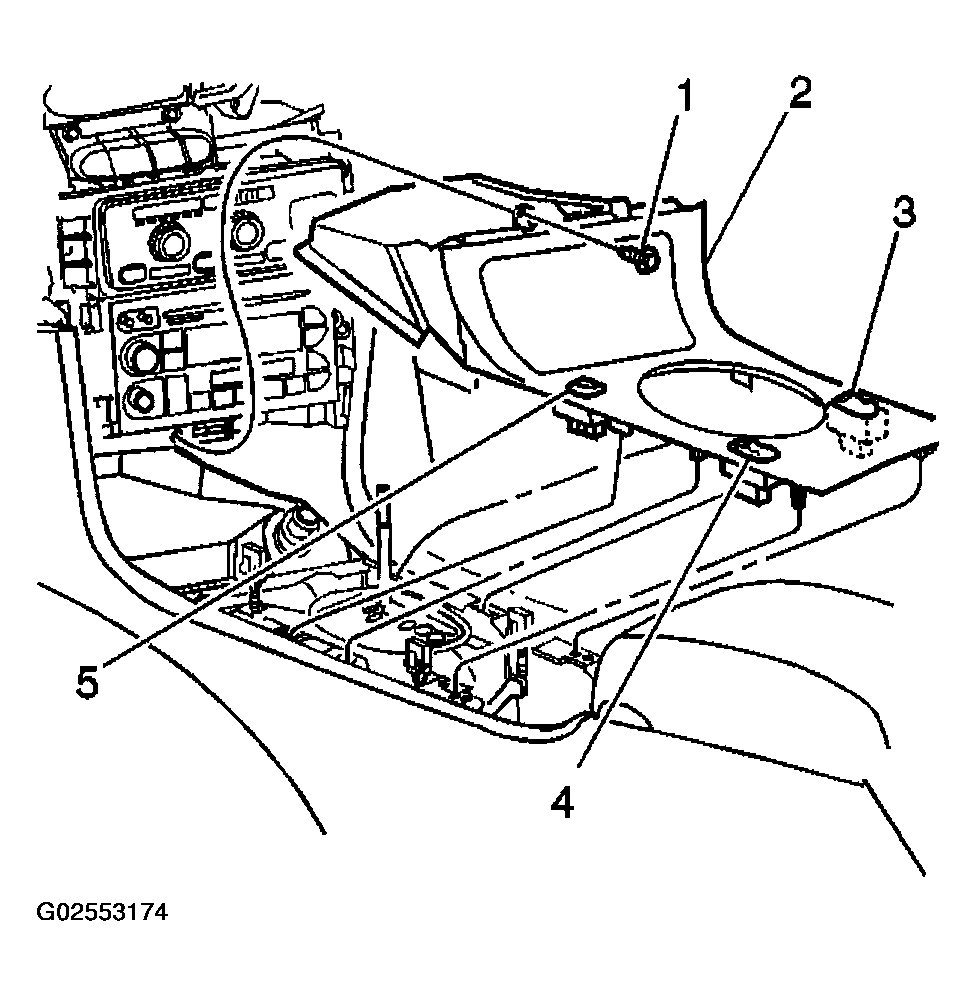

    4. Fig 1: Removing & Installing Center Console Trim Plate & Traction Control Switch
    G02553174Courtesy of GENERAL MOTORS CORP.
