Power Window Schematics

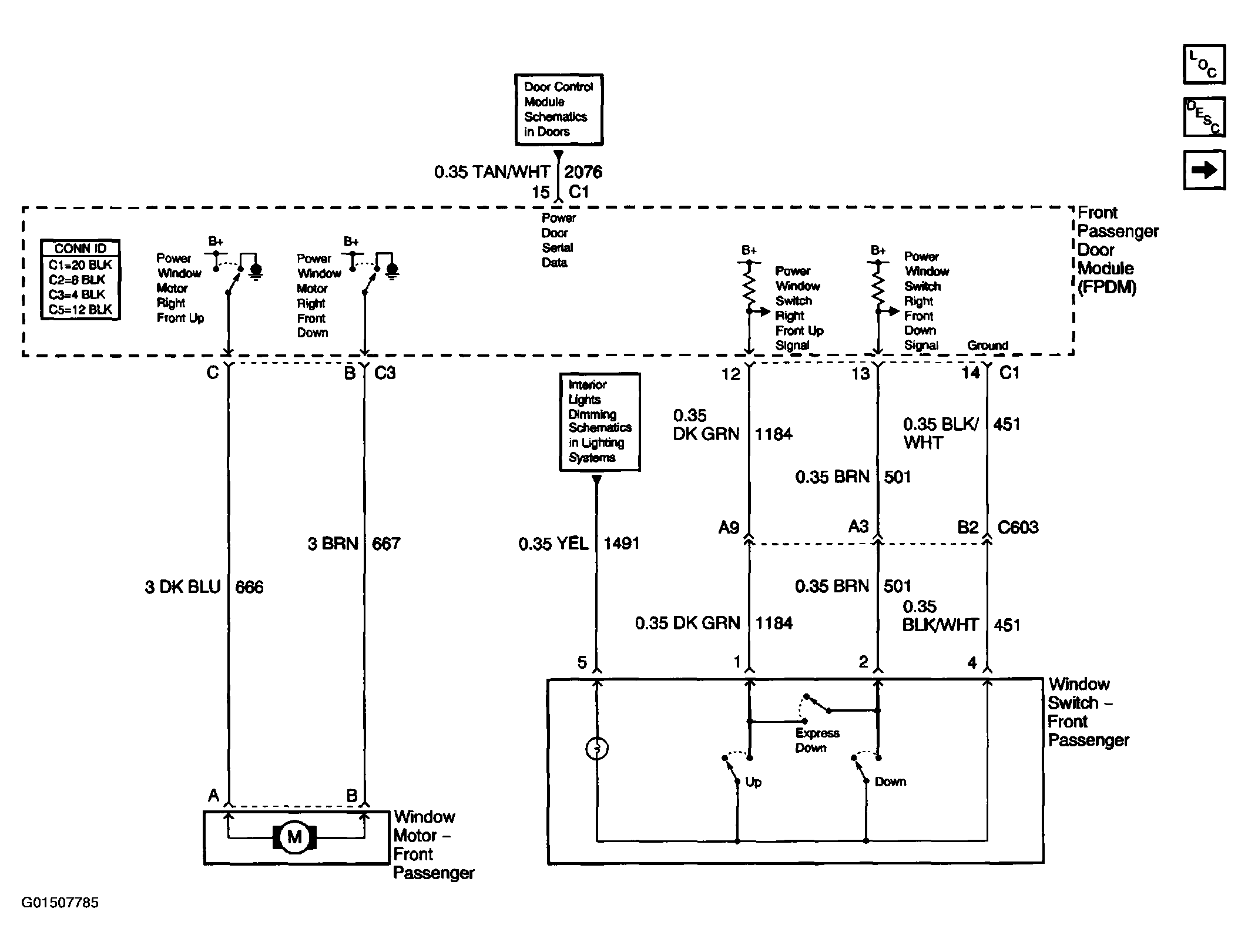

Fig 1: Power Window Wiring Schematic - Front Passenger Window Switch & Window Motor
G01507785Courtesy of GENERAL MOTORS CORP.

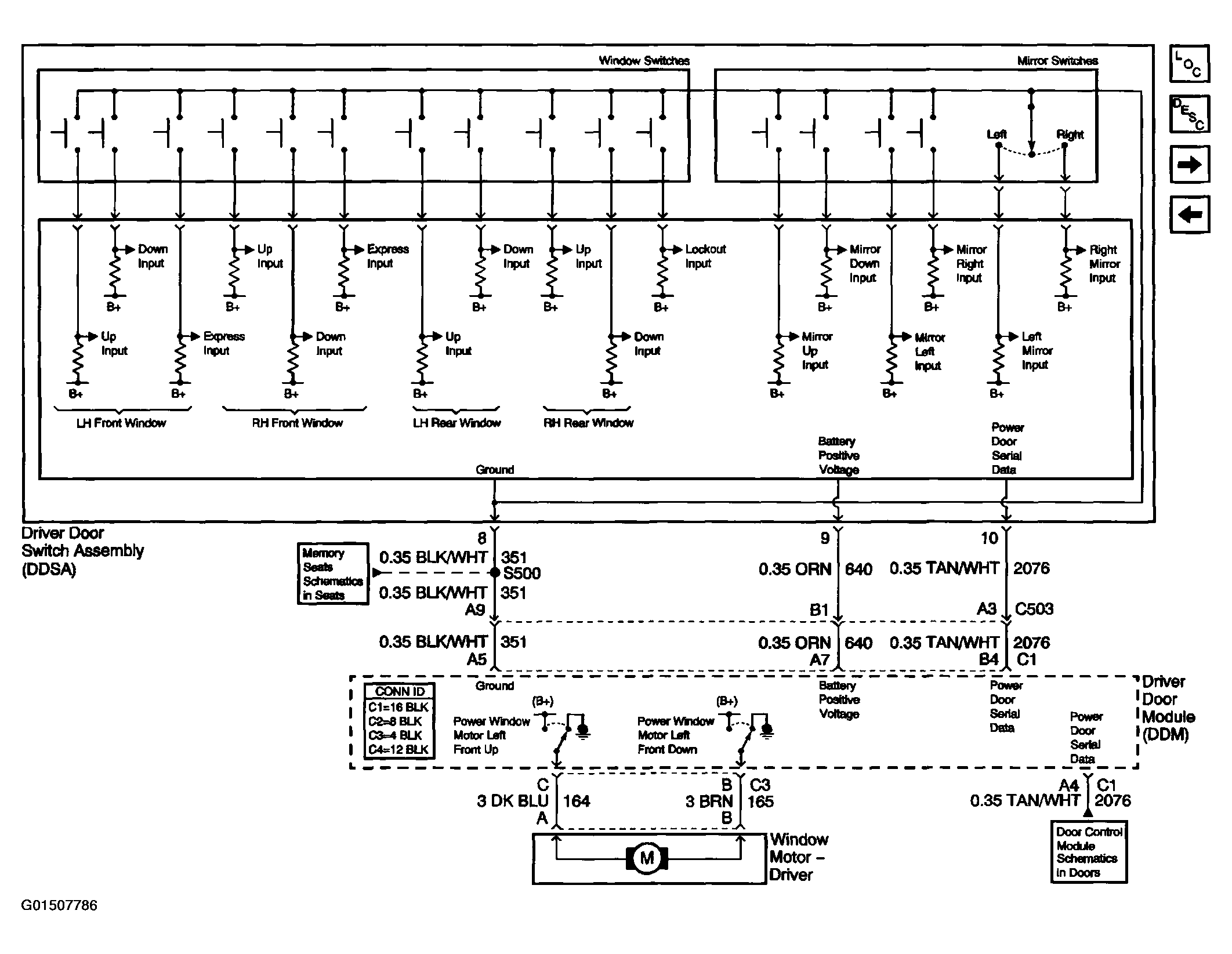

Fig 2: Power Window Wiring Schematic - Driver Door Switch Assembly
G01507786Courtesy of GENERAL MOTORS CORP.

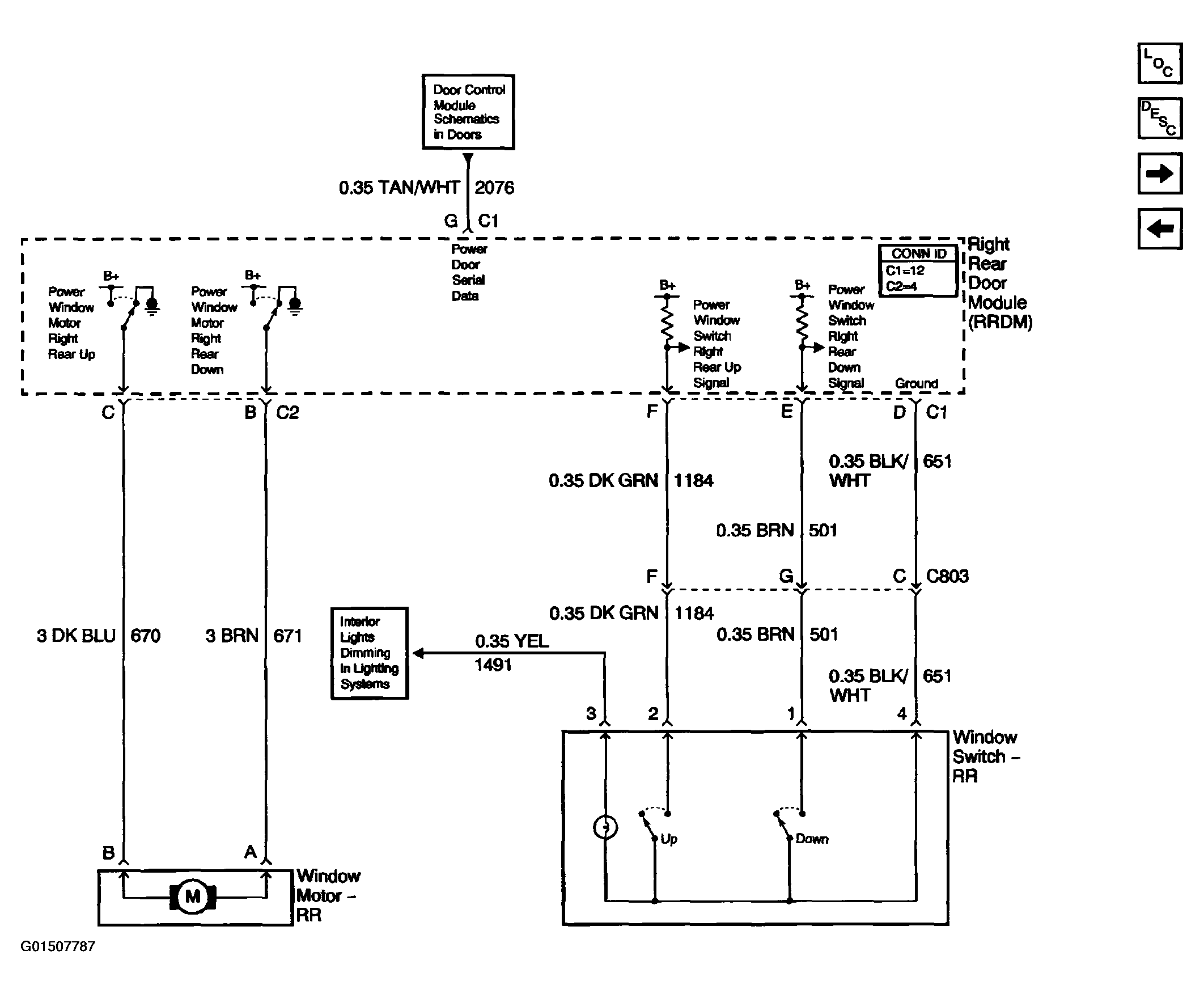

Fig 3: Power Window Wiring Schematic - Right Rear Window Switch & Window Motor
G01507787Courtesy of GENERAL MOTORS CORP.

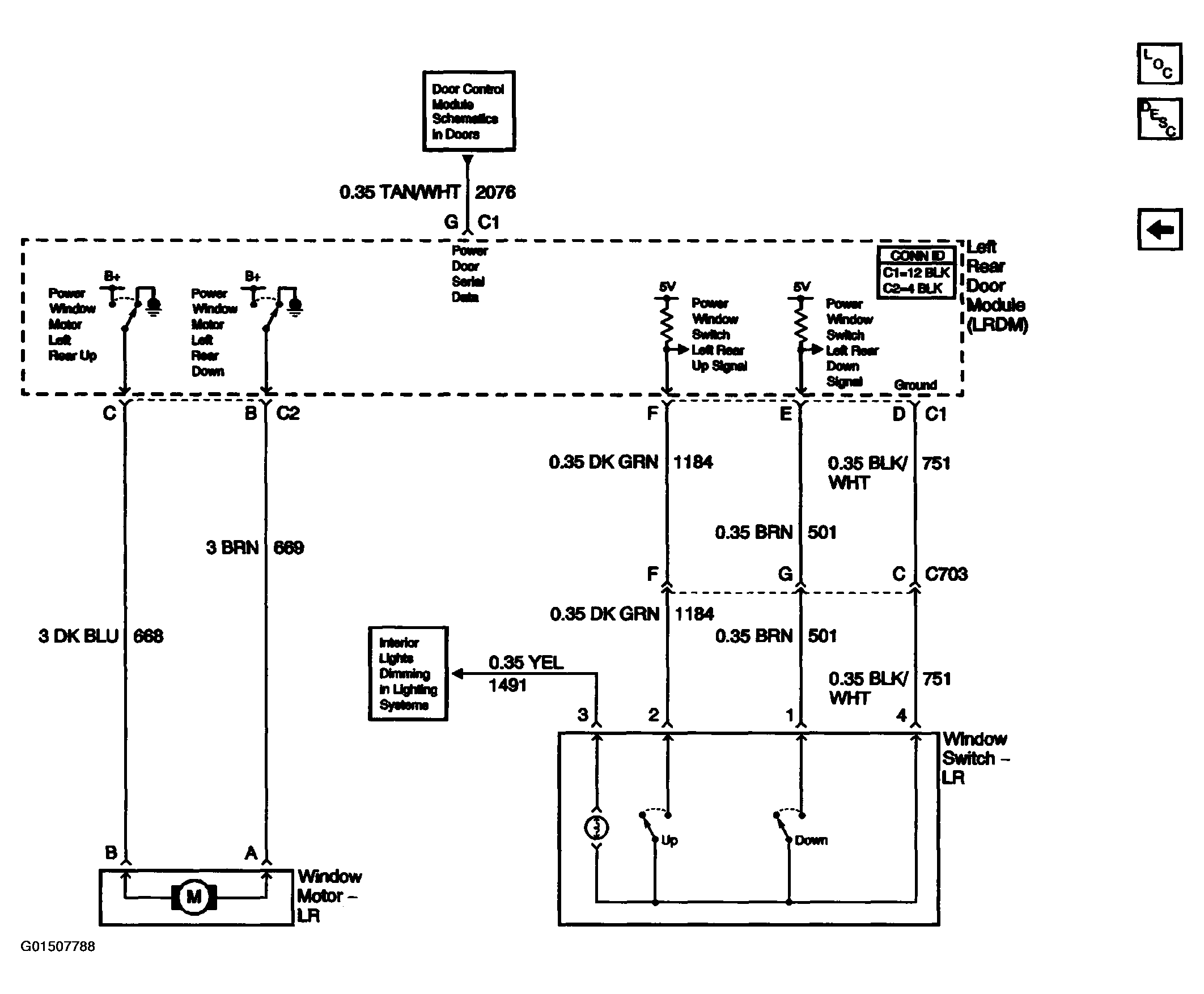

Fig 4: Power Window Wiring Schematic - Left Rear Window Switch And Window Motor
G01507788Courtesy of GENERAL MOTORS CORP.
