Door Lock/Indicator Schematics

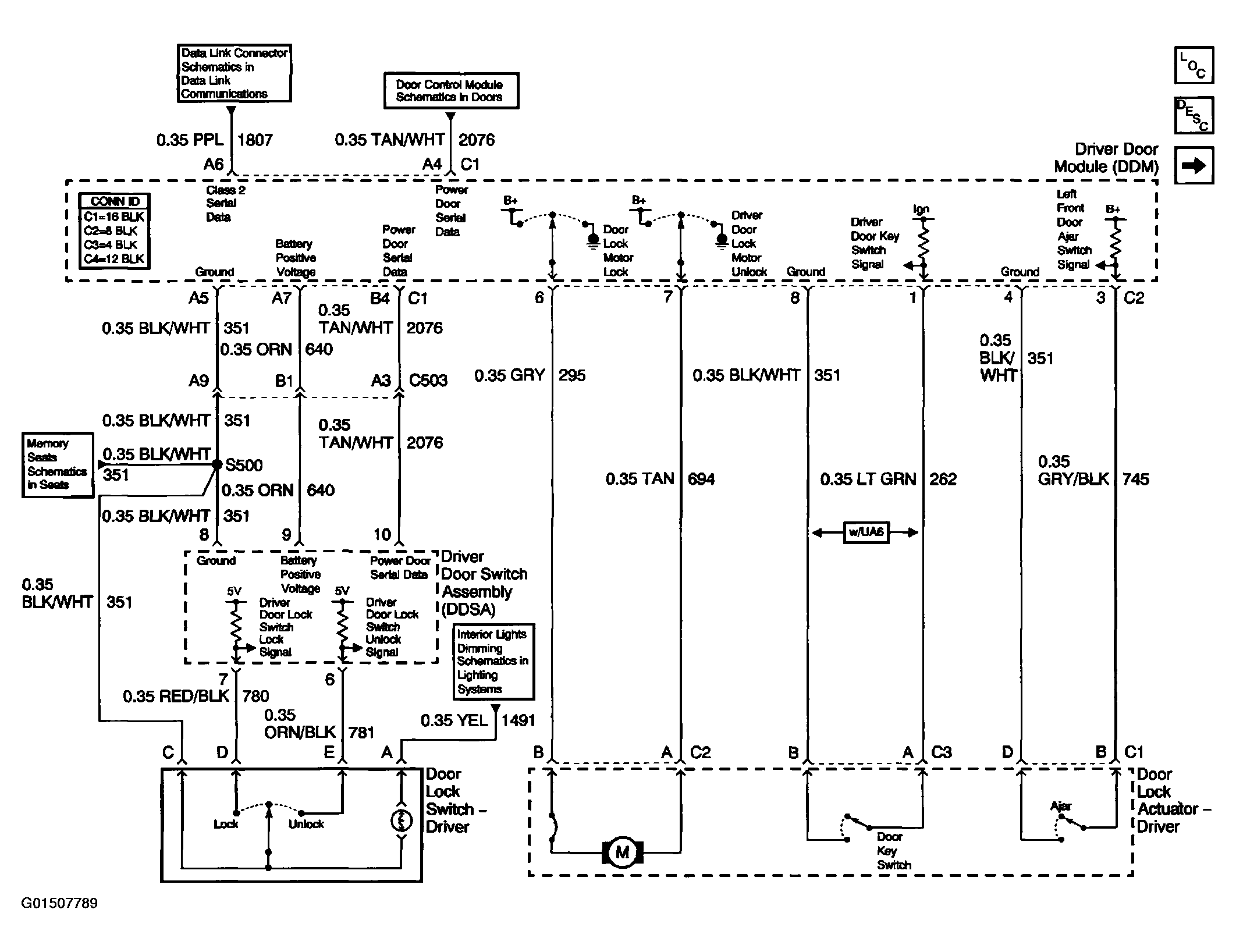

Fig 1: Door Lock/Indicator Wiring Schematic - Driver Door Lock Actuator & Driver Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

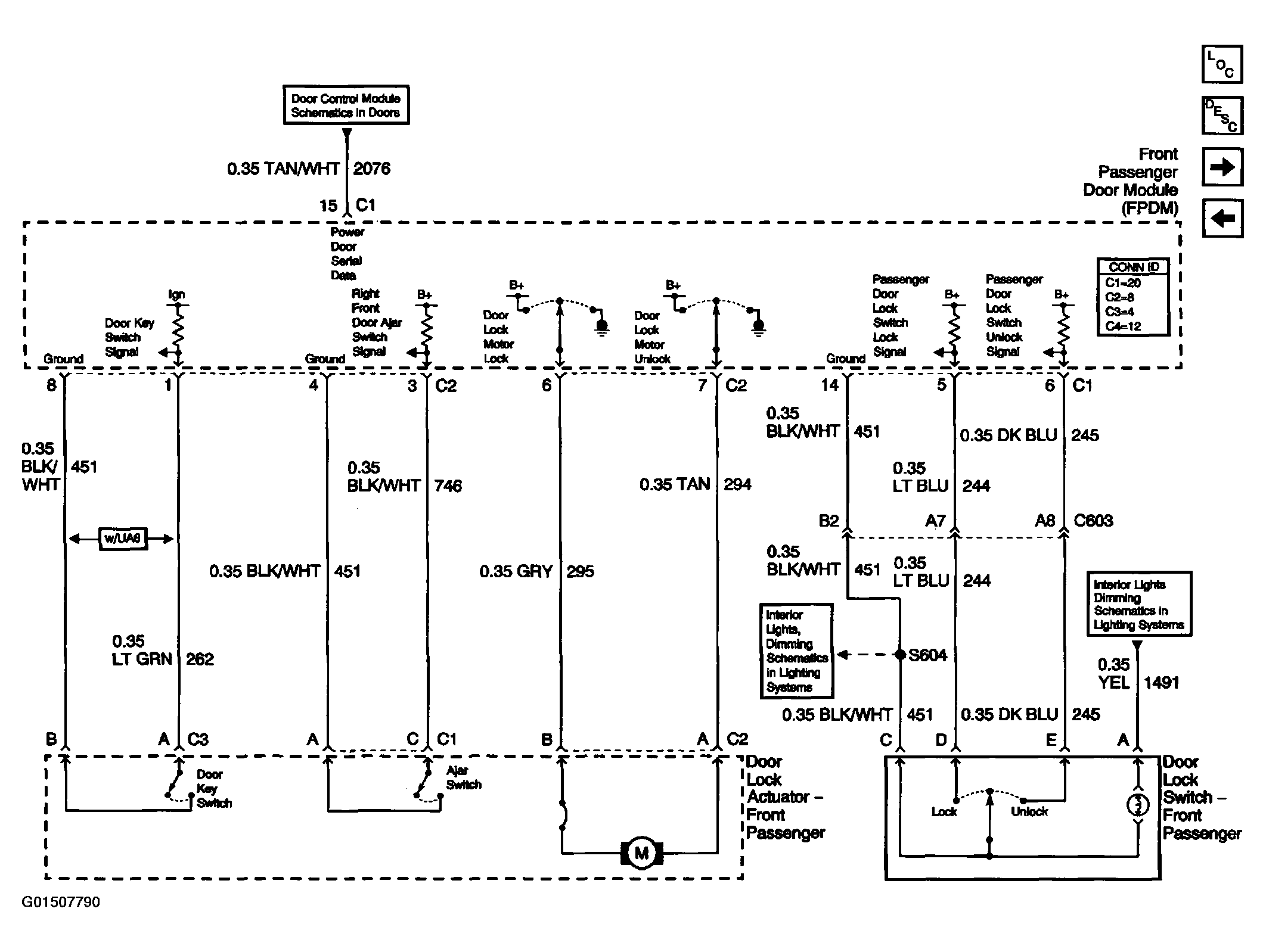

Fig 2: Door Lock/Indicator Wiring Schematic - Passenger Door Lock Actuator & Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

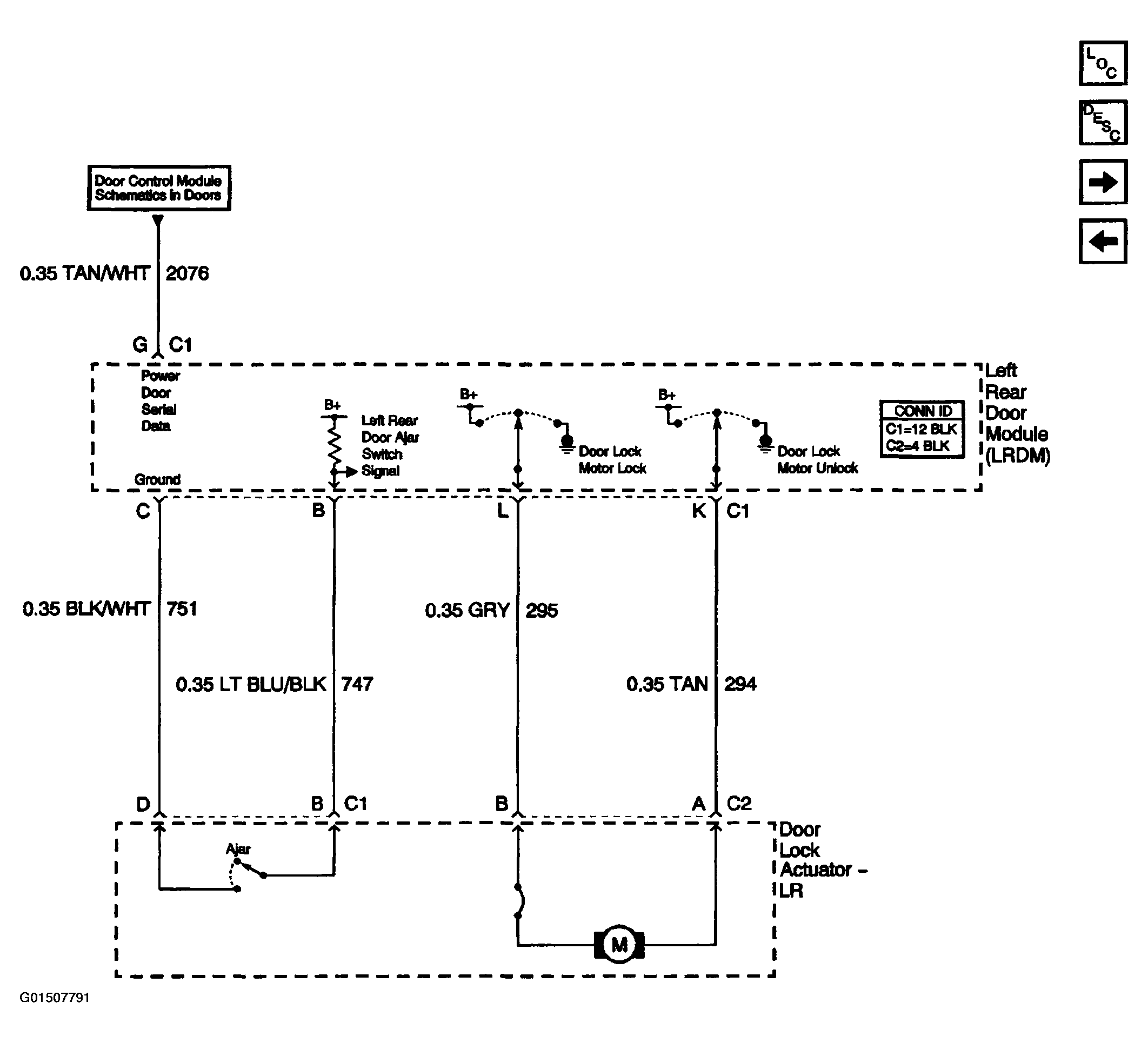

Fig 3: Door Lock/Indicator Wiring Schematic - Rear Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.

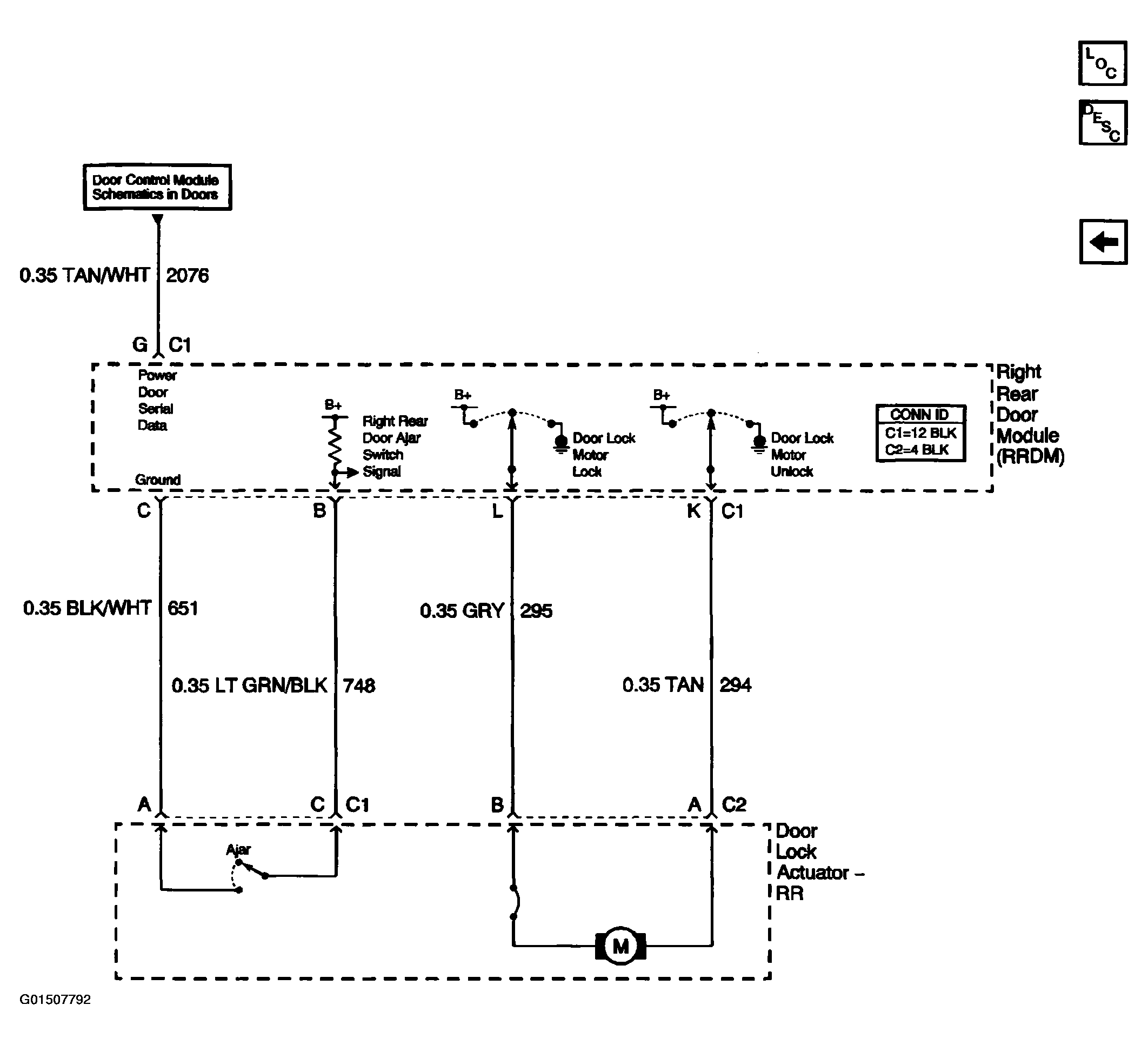

Fig 4: Door Lock/Indicator Wiring Schematic - Right Rear Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.
