Removal Procedure

  1. Put the window in the down position.
  2. Grasp the window weatherstrip at the lower rear corner.
  3. Pull up and forward to release the window weatherstrip from the door frame far enough to expose the door applique fasteners.

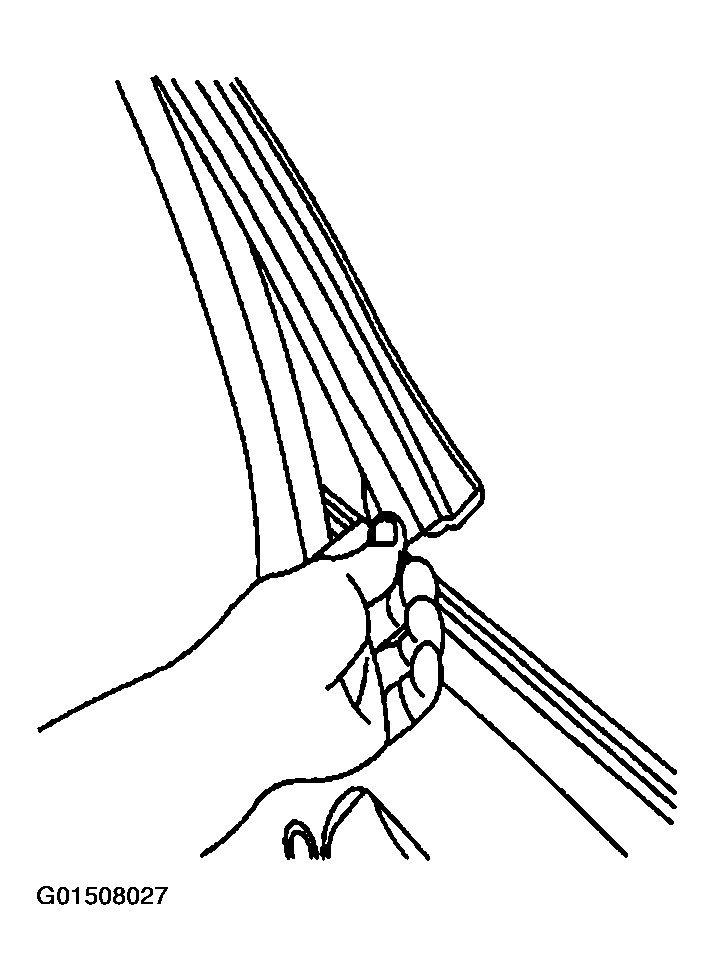

    4. Fig 1: Pulling Out Lower Rear Portion Of Upper Window Seal To Access Door Frame Applique Fasteners
    G01508027Courtesy of GENERAL MOTORS CORP.
  4. Remove the door applique fasteners.
  5. Remove the door applique by sliding forward.

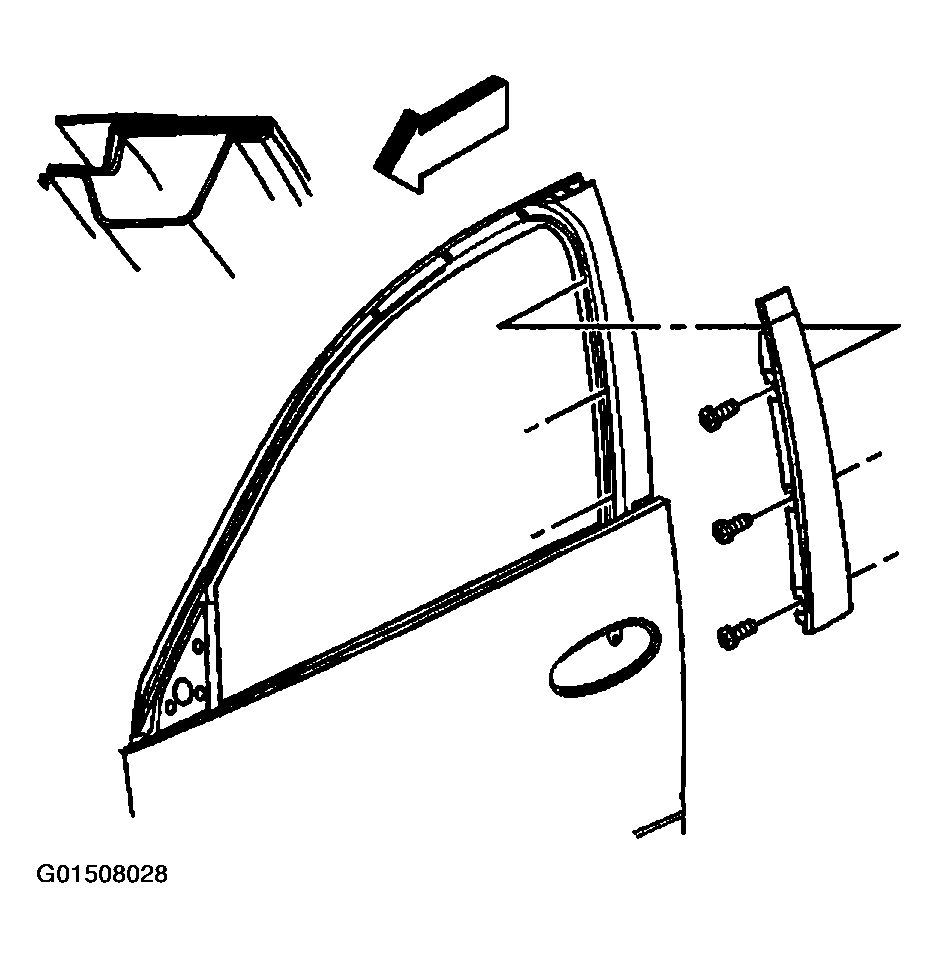

    6. Fig 2: Removing Front Door Frame Applique
    G01508028Courtesy of GENERAL MOTORS CORP.
