Installation Procedure

Connect the electrical connectors to the sunroof control module.

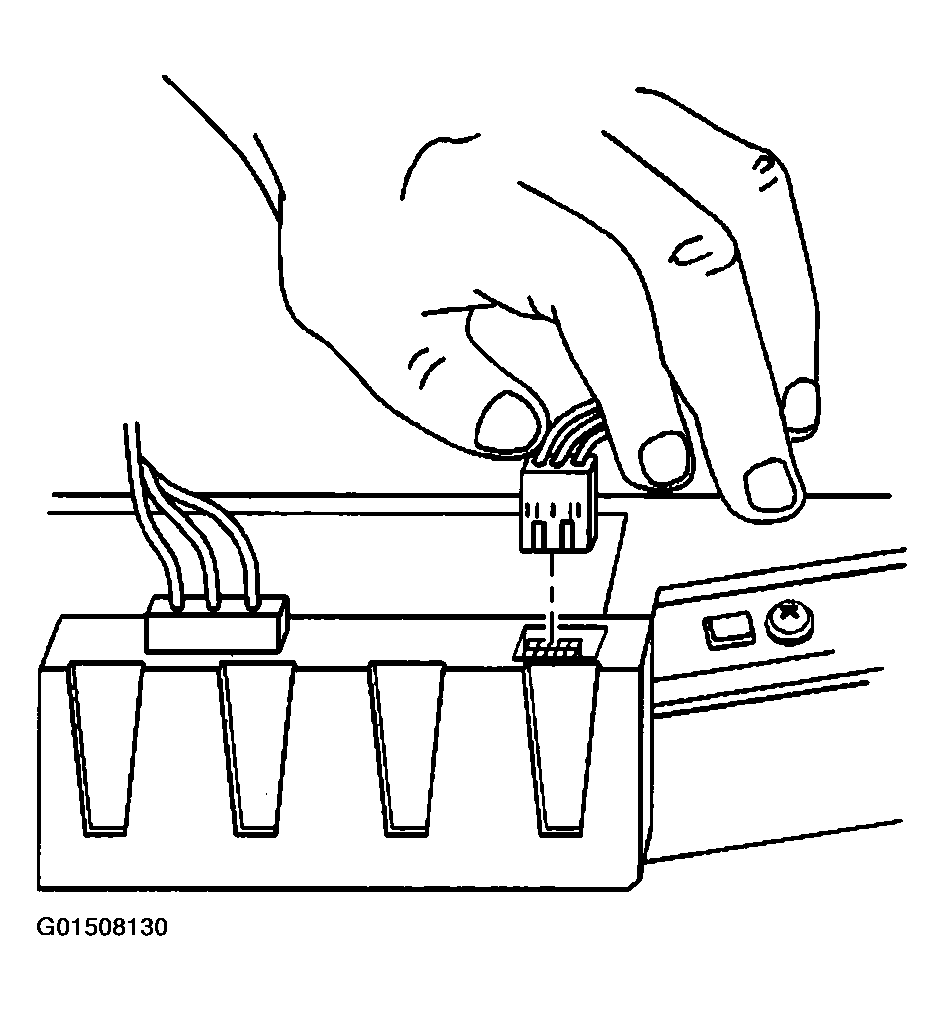

Fig 1: Installing Sunroof Control Module (1 Of 7)
Courtesy of GENERAL MOTORS CORP.
Install the sunroof control module tabs (2) into the sunroof module assembly slots (3) located on the sunroof module.
Slide the sunroof control module (1) away from the sunroof motor/actuator until the sunroof control module is fully engaged to the sunroof module assembly.

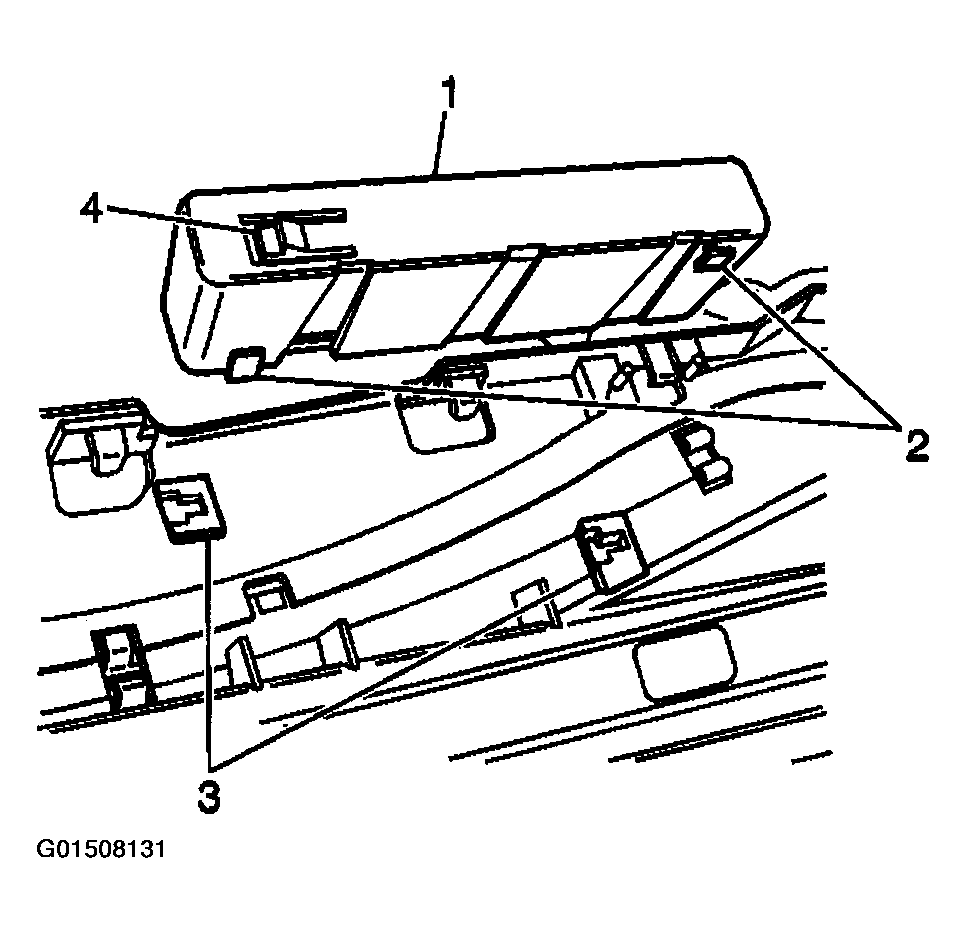

Fig 2: Installing Sunroof Control Module (2 Of 7)
Courtesy of GENERAL MOTORS CORP.

Important: Test the proper operation of the sunroof functions before installing the interior trim components.
Reposition the headliner to the center and rearward roof magnets.
Install the passenger side sail panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER in Interior Trim.

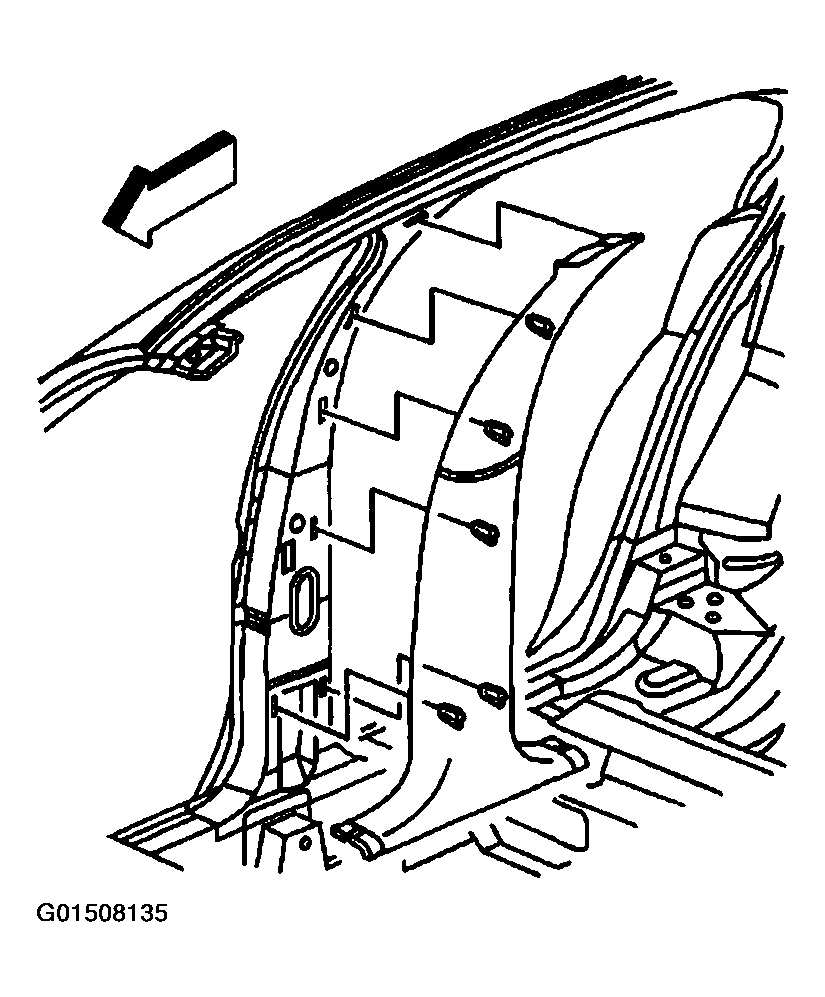

Fig 3: Installing Sunroof Control Module (3 Of 7)
Courtesy of GENERAL MOTORS CORP.
Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.

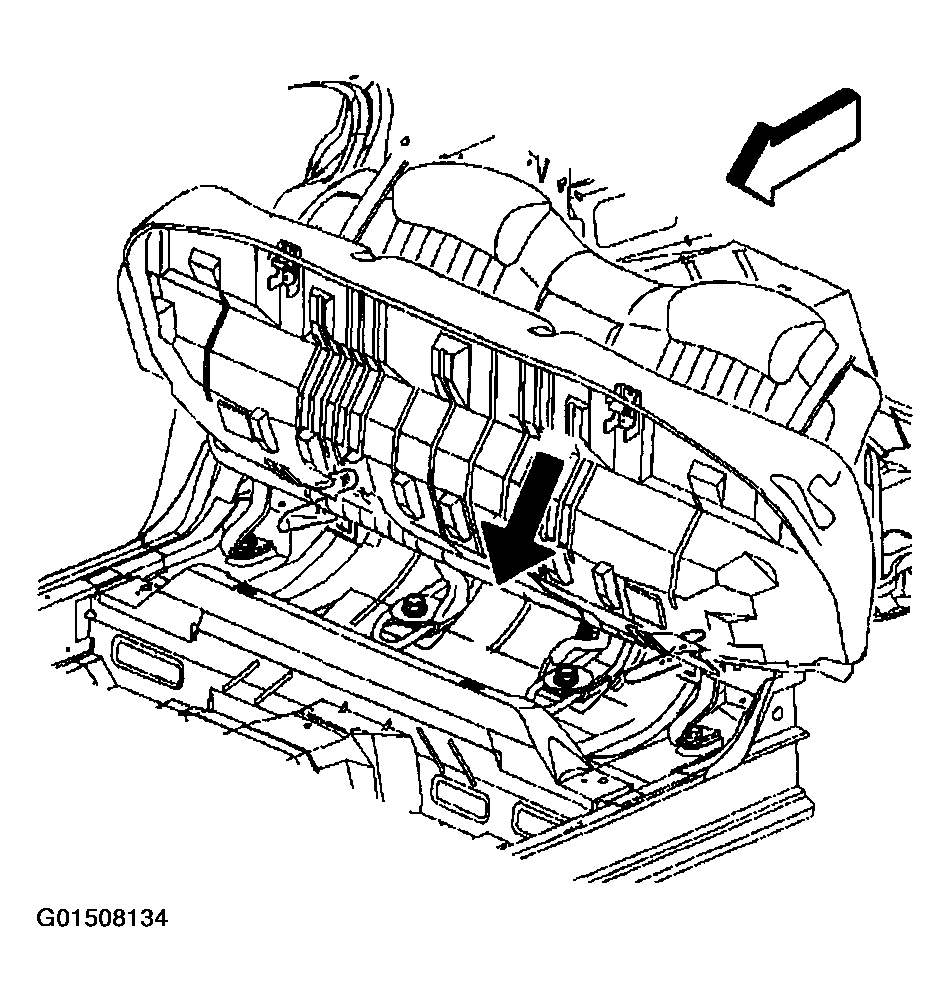

Fig 4: Installing Sunroof Control Module (4 Of 7)
Courtesy of GENERAL MOTORS CORP.
Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.

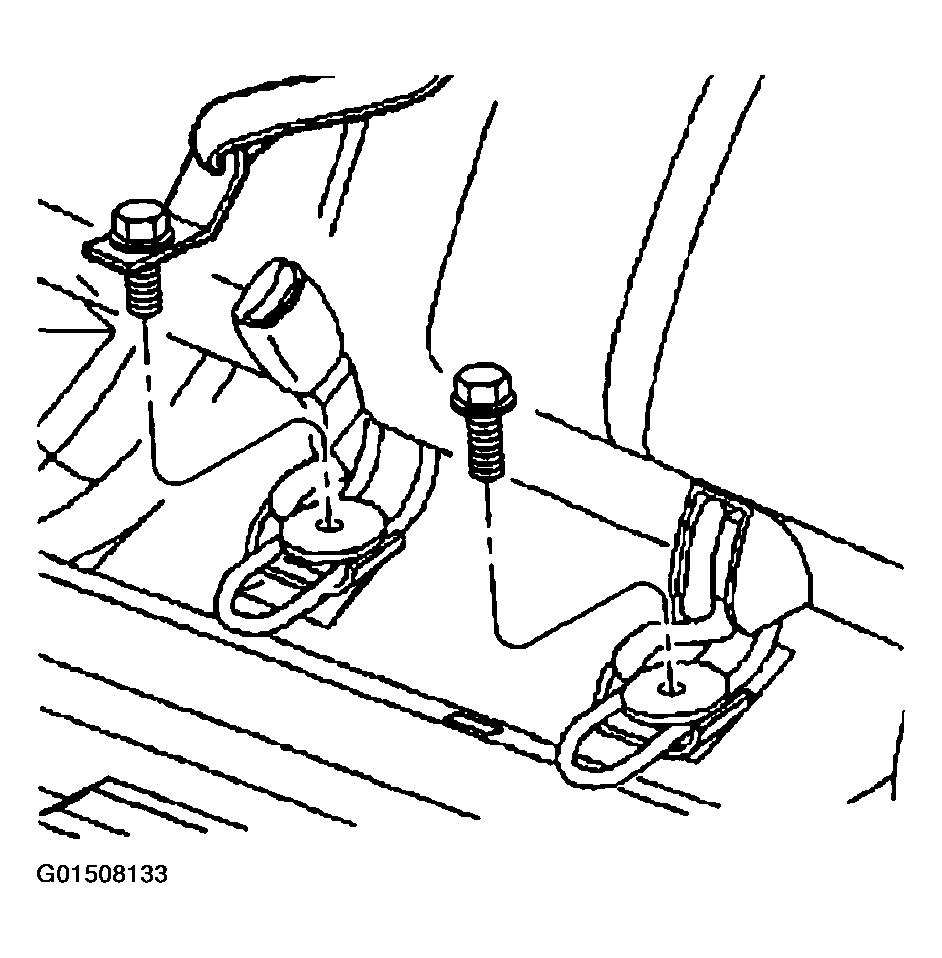

Fig 5: Installing Sunroof Control Module (5 Of 7)
Courtesy of GENERAL MOTORS CORP.
Align the upper center trim panel retainer, push inward in order to secure.
Reposition the passenger rear door opening weatherstrip.

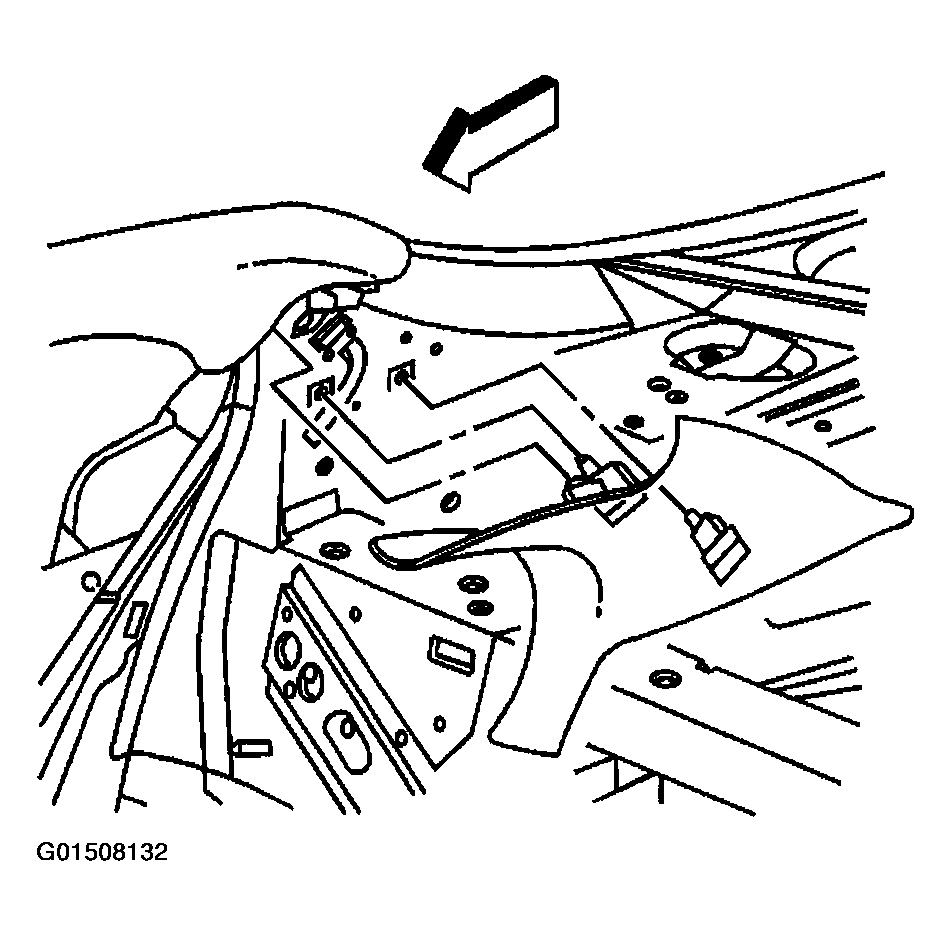

Fig 6: Installing Sunroof Control Module (6 Of 7)
Courtesy of GENERAL MOTORS CORP.
Install the passenger side rear assist handle (3). Refer to ASSIST HANDLE REPLACEMENT in Interior Trim.
Close the passenger rear door.

Fig 7: Installing Sunroof Control Module (7 Of 7)
Courtesy of GENERAL MOTORS CORP.
