Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Checks to see if steering angle sensor is centered.
  2. 3. Checks for specified voltage on the lateral accelerometer signal circuit.
  3. 4. Checks for specified voltage on the yaw rate signal circuit.

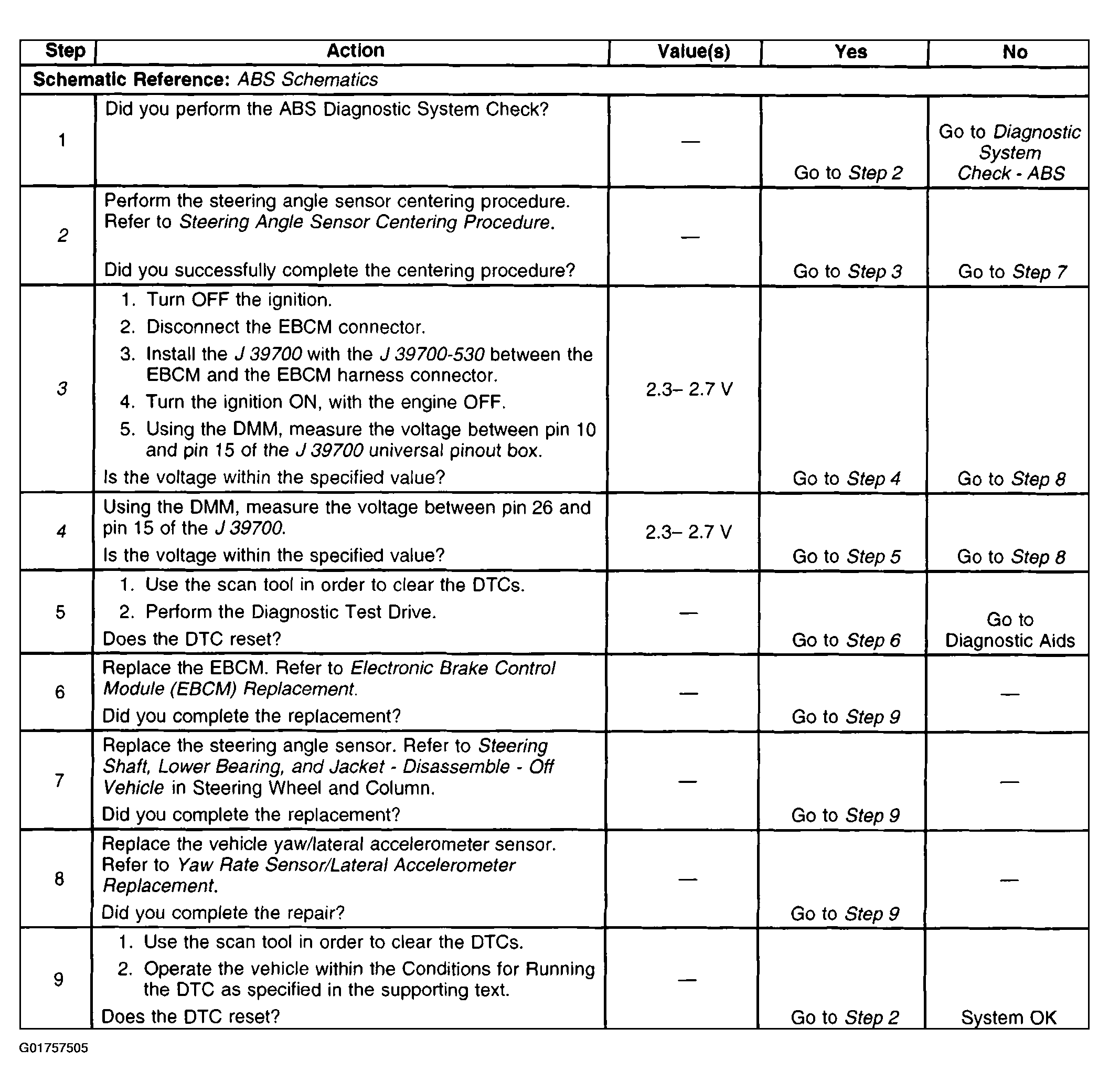

    Fig 1: DTC C0187
    G01757505Courtesy of GENERAL MOTORS CORP.
