Test Description

The numbers below refer to step numbers on the diagnostic table.

  1. 2. Checks if the IPC has the ability to turn the ABS Indicator on.

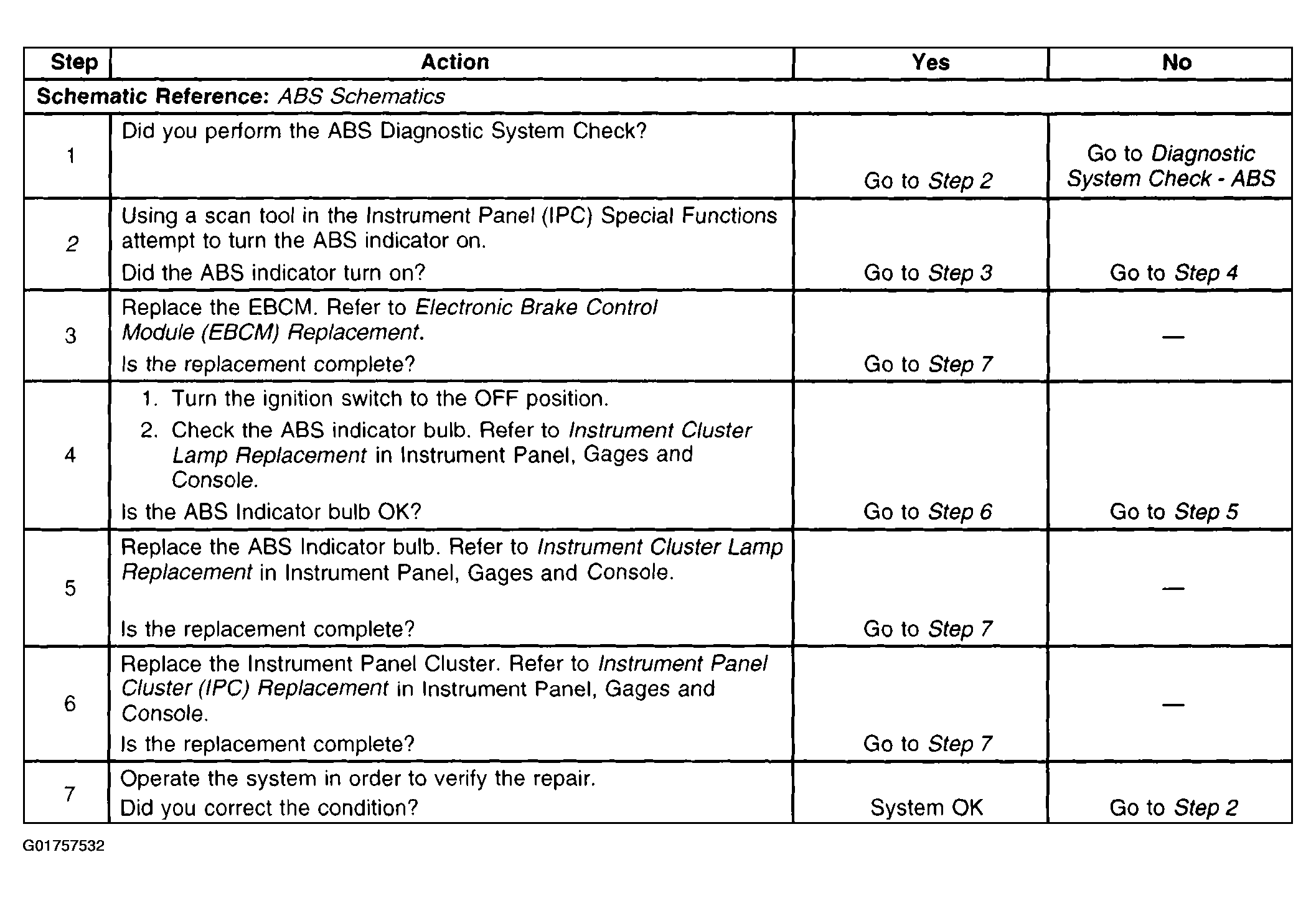

    Fig 1: ABS Indicator Inoperative
    G01757532Courtesy of GENERAL MOTORS CORP.
