Removal Procedure

  1. Remove the outside rear view mirror. Refer to Mirror Replacement - Power .
  2. Remove the glass run channel in the area of the front door weatherstrip retainer.
  3. Use a small flat-bladed tool to pull the front door window weatherstrip retainer from the front door while pulling the front door window weatherstrip upward.
  4. Remove the front door window weatherstrip retainer from the front door.

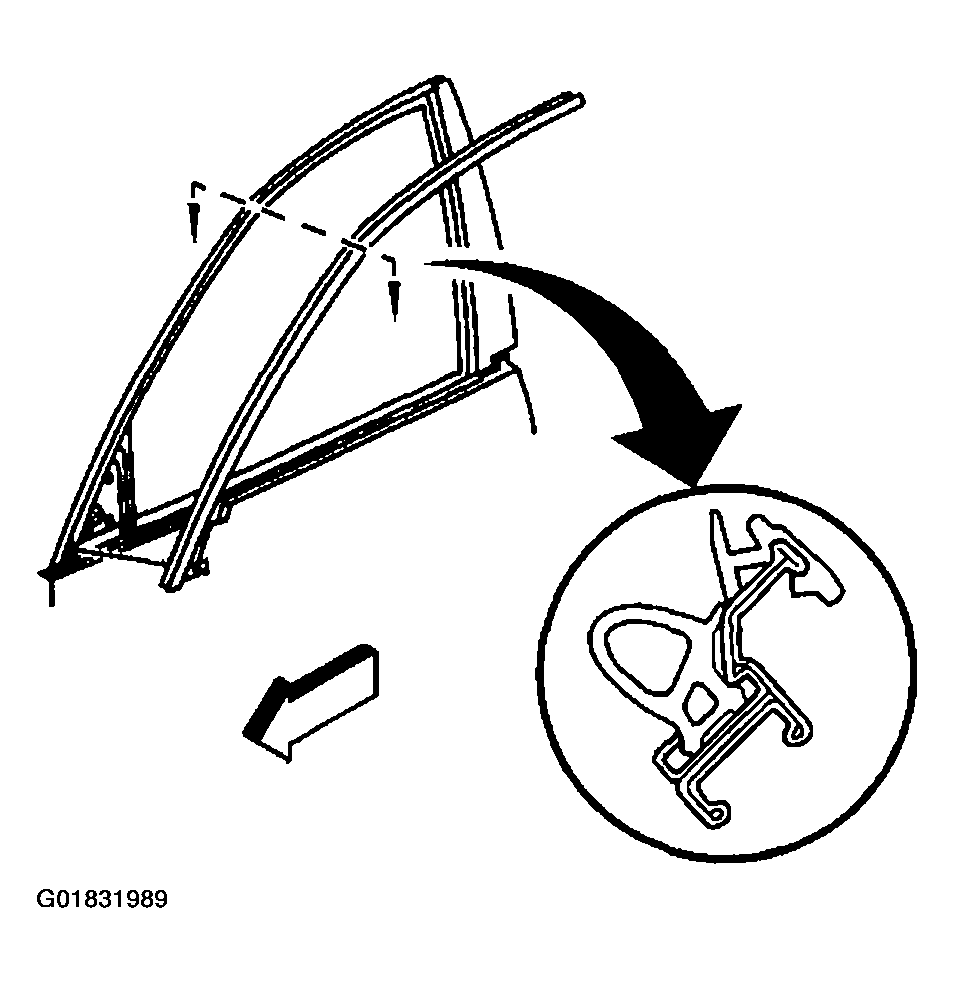

    Fig 1: Removing Front Door Window Weatherstrip Retainer From Front Door
    G01831989Courtesy of GENERAL MOTORS CORP.
