Removal Procedure

  1. Open the front door.
  2. Use the J 38778  to remove the lower half of the front door weatherstrip and retainers.
  3. Pull the front door weatherstrip from the track to remove the upper half of the front door weatherstrip.
  4. Remove the front door weatherstrip from the front door.

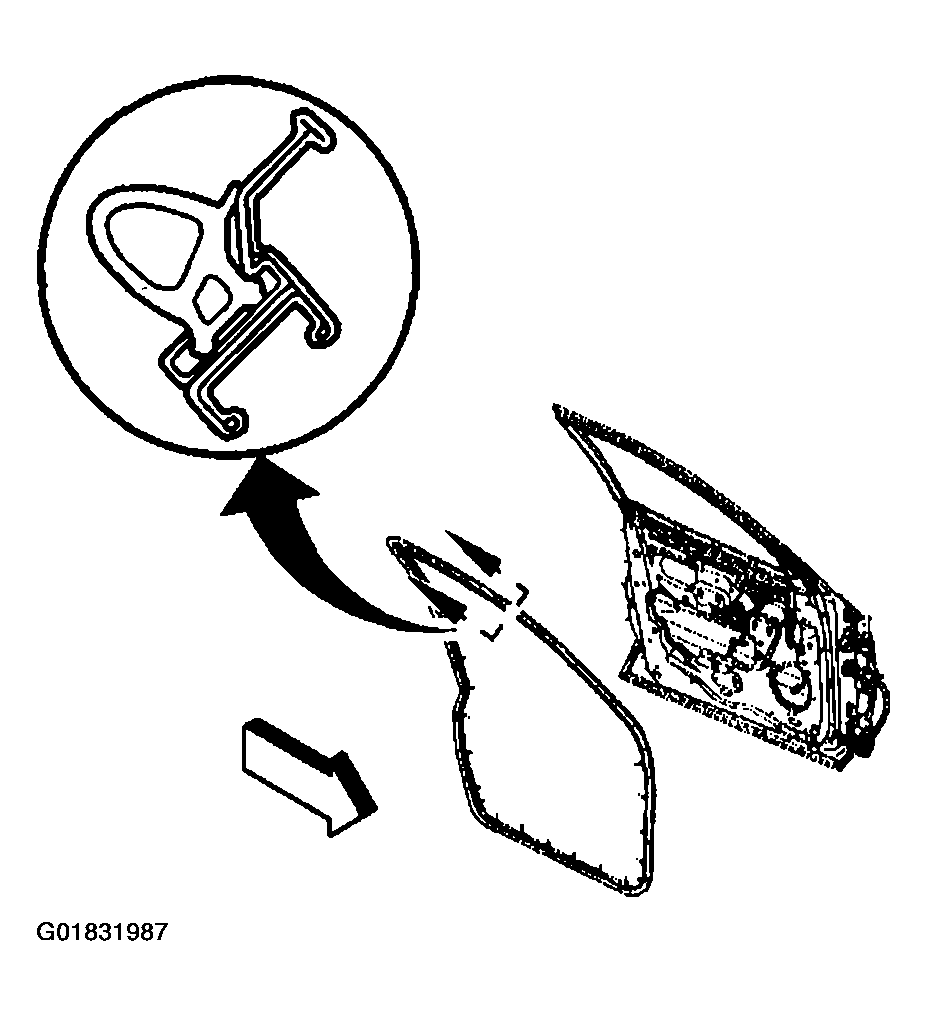

    Fig 1: Removing Front Door Weatherstrip
    G01831987Courtesy of GENERAL MOTORS CORP.
