Removal Procedure

  1. Lower the front door window to the full open position.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door
  3. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the outside rearview mirror. Refer to Mirror Replacement - Power .
  5. Remove the front door inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  6. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer
  7. Pull the front door window weatherstrip from the front door.

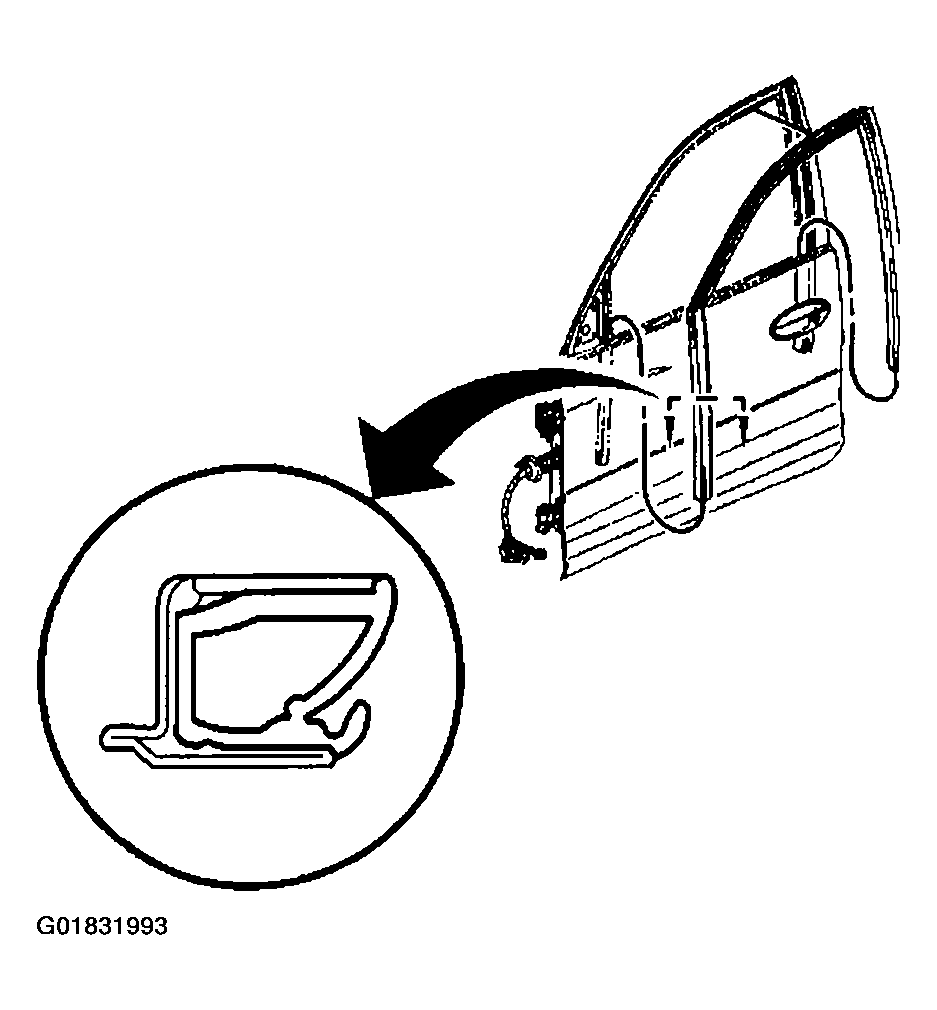

    Fig 1: Removing Front Door Window Weatherstrip From Front Door
    G01831993Courtesy of GENERAL MOTORS CORP.
