Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door radio speaker. Refer to SPEAKER REPLACEMENT - FRONT LOWER .
  3. Remove the front door inner handle water deflector.
  4. Pull the wire harness through the water deflector as you remove the deflector from the door.

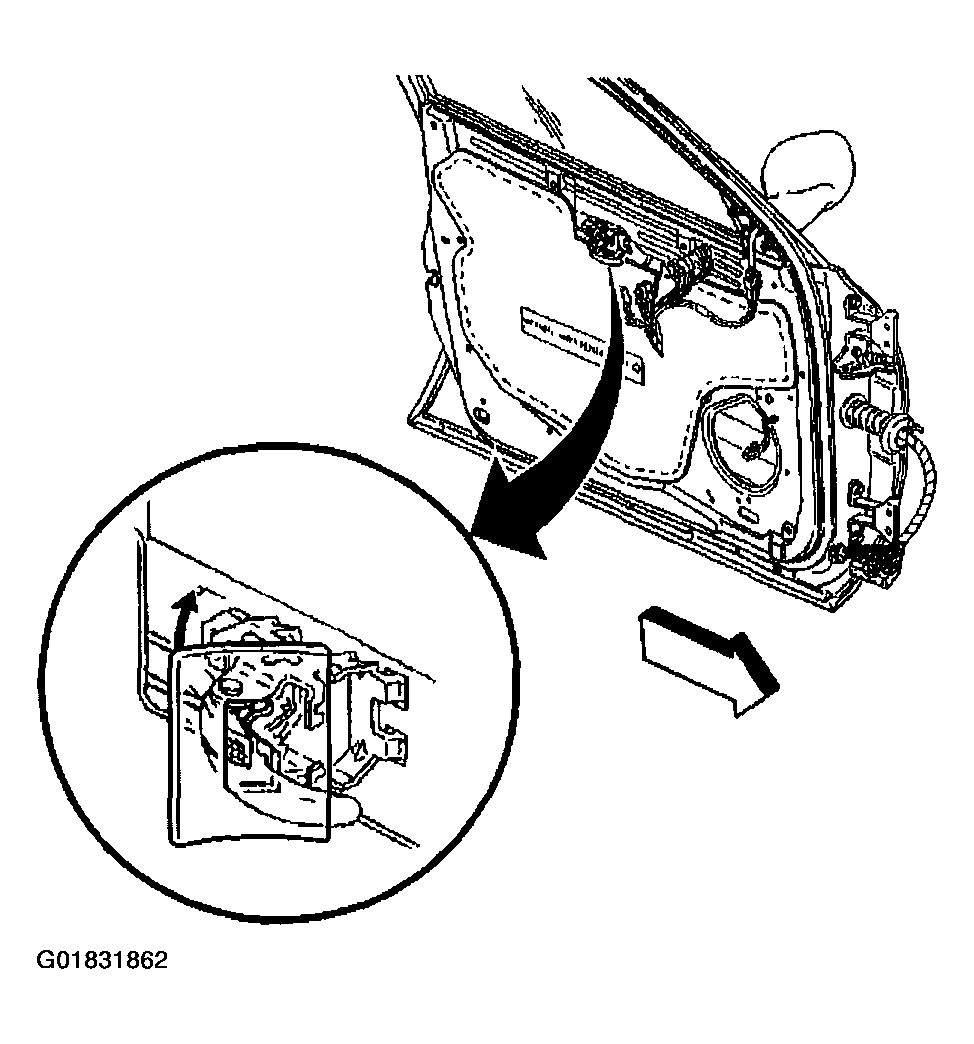

    Fig 1: Removing Front Door Water Deflector & Wire Harness
    G01831862Courtesy of GENERAL MOTORS CORP.
