Removal Procedure

CAUTION: Disconnect the power window switch when working inside the driver door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Important: When removing a door trim panel or switch plate, the ignition switch must be in the OFF position. This will eliminate the possibility of shorting out the switch if you use a flat-bladed tool, awl, or metal object to remove the switch from the harness.

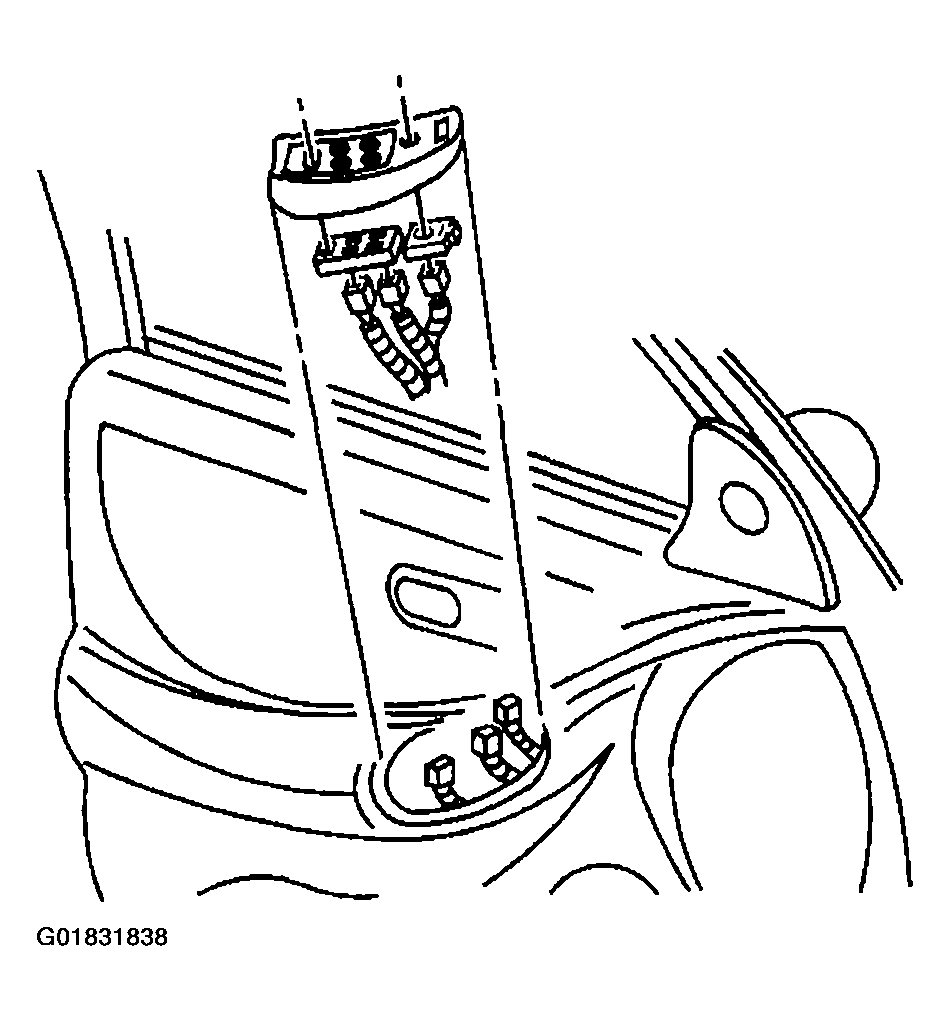

Fig 1: Removing Power Mirror, Window & Door Lock Switches From Switch Plate

Courtesy of GENERAL MOTORS CORP.

Important: Protect the trim panel at the point of insertion of the flat-bladed tool to avoid damaging the trim panel.

Use a small, flat-bladed tool to remove the power mirror, window and door lock switch plate.
From under the pull handle, insert the tool at the rear of the switch plate, press forward to release the retainer and lift up on the plate.
Slide the switch plate rearward to disengage the front tab and remove the plate from the door trim panel.
Disconnect the electrical connectors from the power mirror, window and door lock switches.
Use a small, flat-bladed tool in order to remove the power mirror, window and door lock switches from the switch plate.
Remove the power mirror, window and door lock switches from the switch plate.

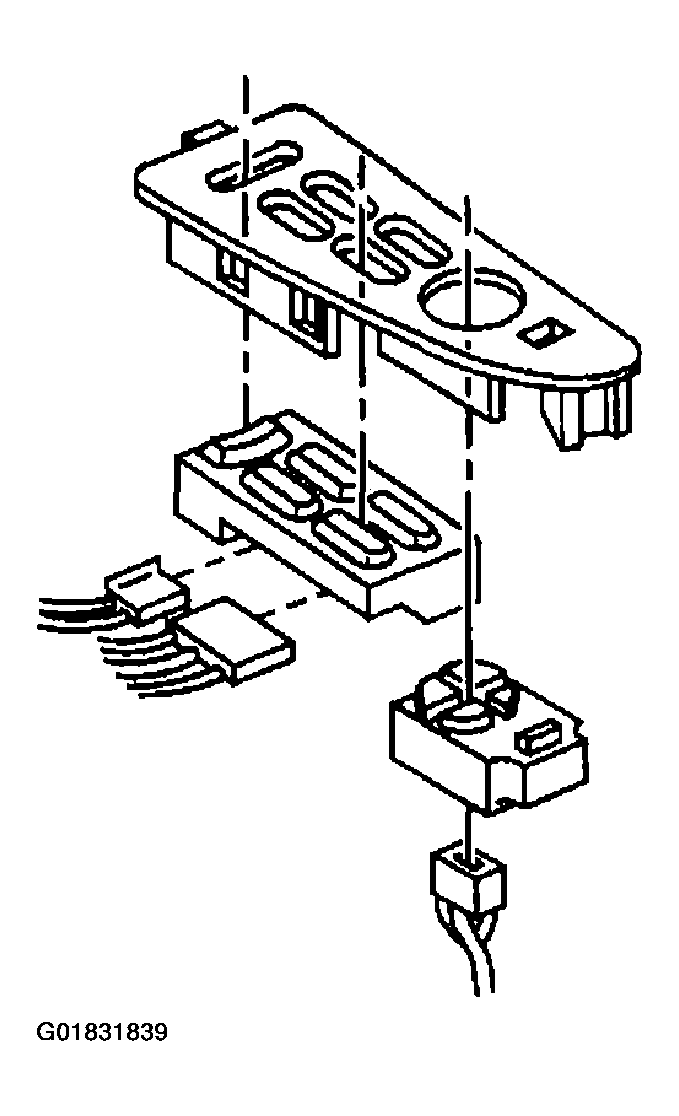

Fig 2: Removing Electrical Connectors From Power Mirror, Window & Door Lock Switches
Courtesy of GENERAL MOTORS CORP.
