Traction Control Switch (Century & Regal): Installation

1. Connect the electrical connector to the traction control switch.
2. Connect the electrical connectors to the seat heater switches.
3. Position the traction control/heated seat switch to the front floor console trim plate.
4. Install the traction control/heated seat switch into the console trim plate pressing in until the retainers are fully seated. See Fig 1 .

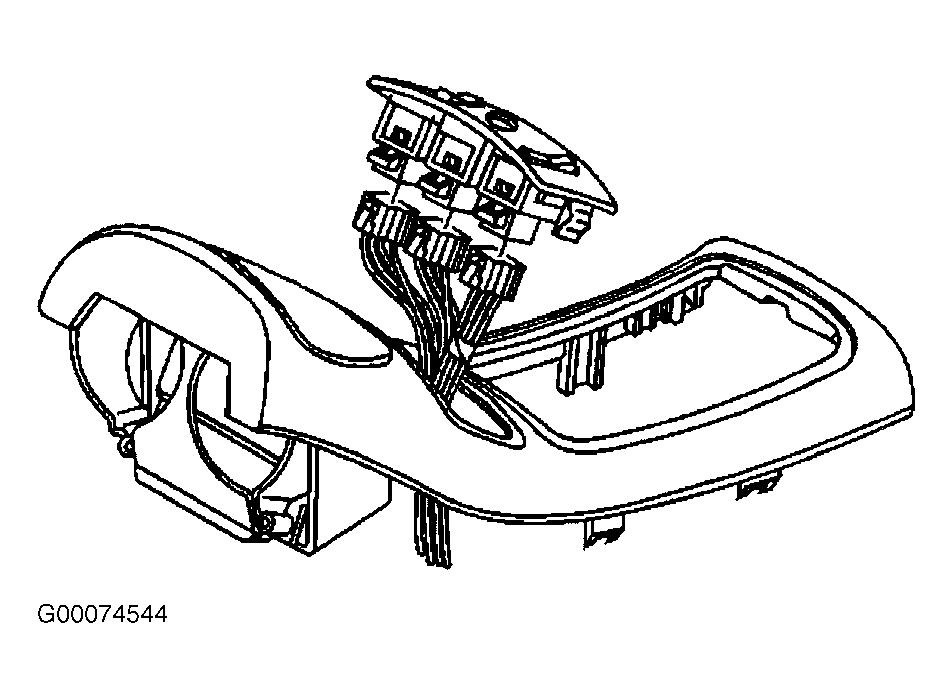

Fig 1: Removing & Installing Traction Control Switch

Courtesy of GENERAL MOTORS CORP.
