Trip Odometer Reset Switch Connector End View

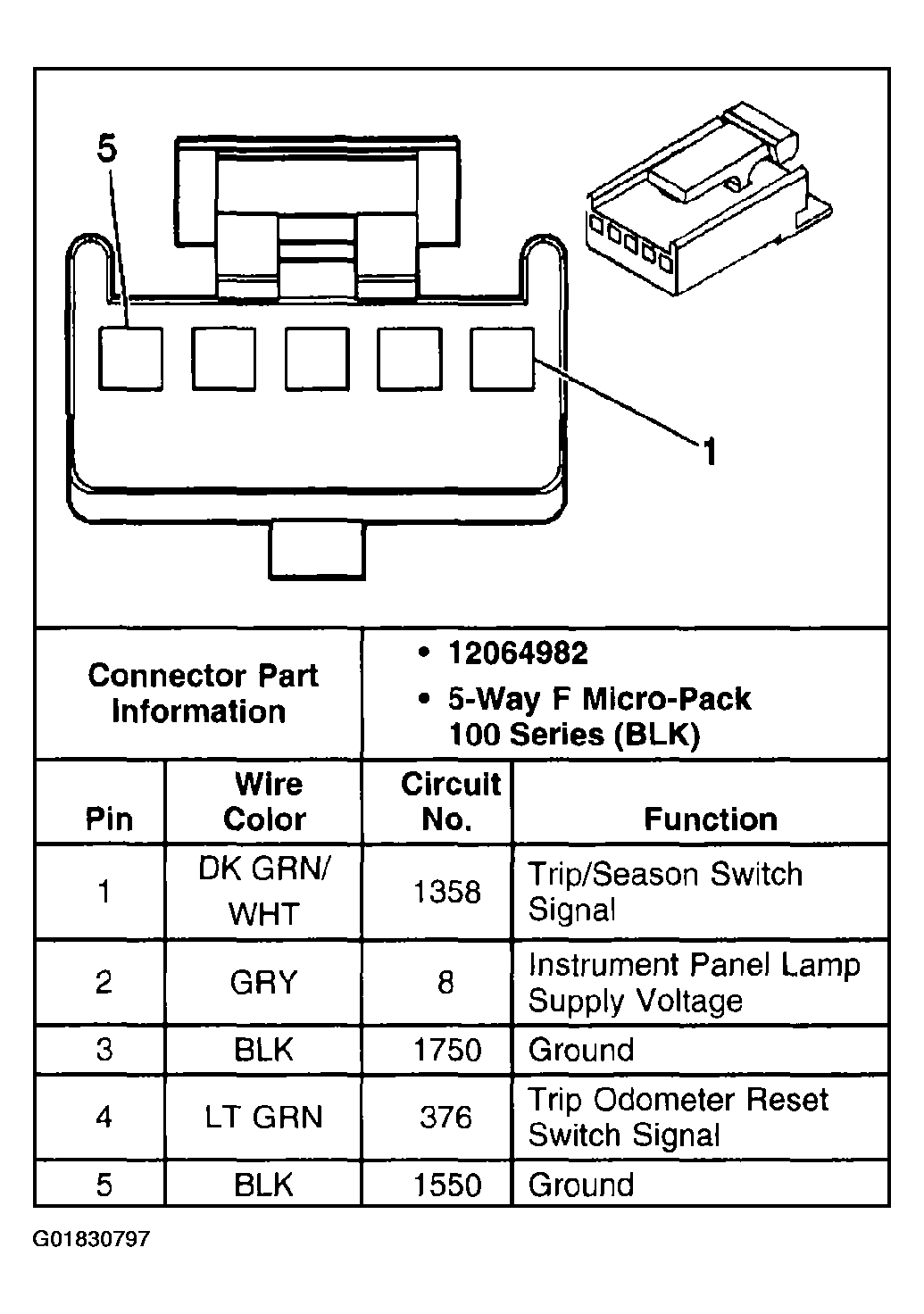

Fig 1: Trip Odometer Reset Switch

G01830797

Courtesy of GENERAL MOTORS CORP.
