Rear Compartment Lid Release Switch Connector End View

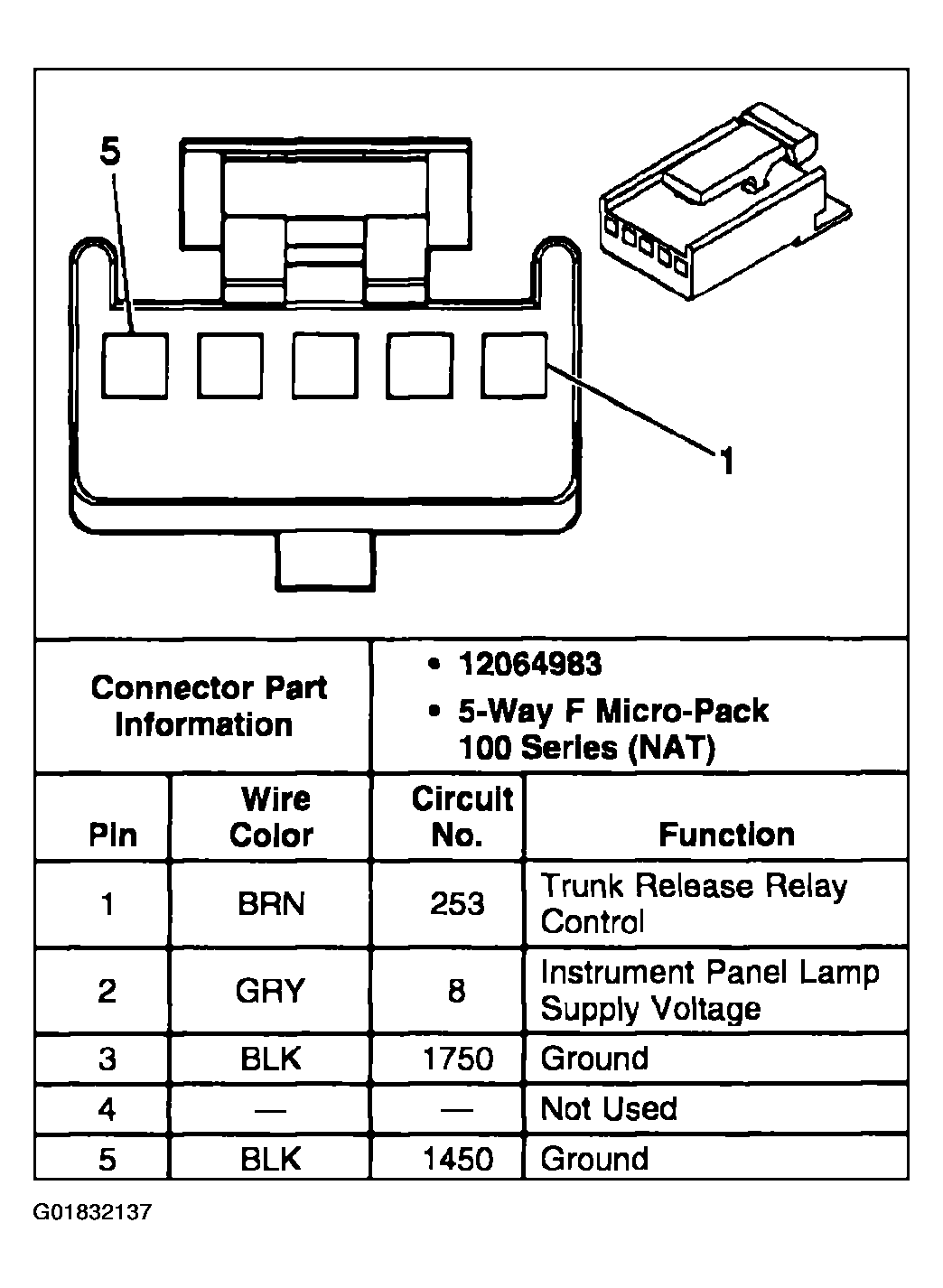

Fig 1: Rear Compartment Lid Release Switch

G01832137

Courtesy of GENERAL MOTORS CORP.
