Fuel Pump And Sender Assembly Connector End View

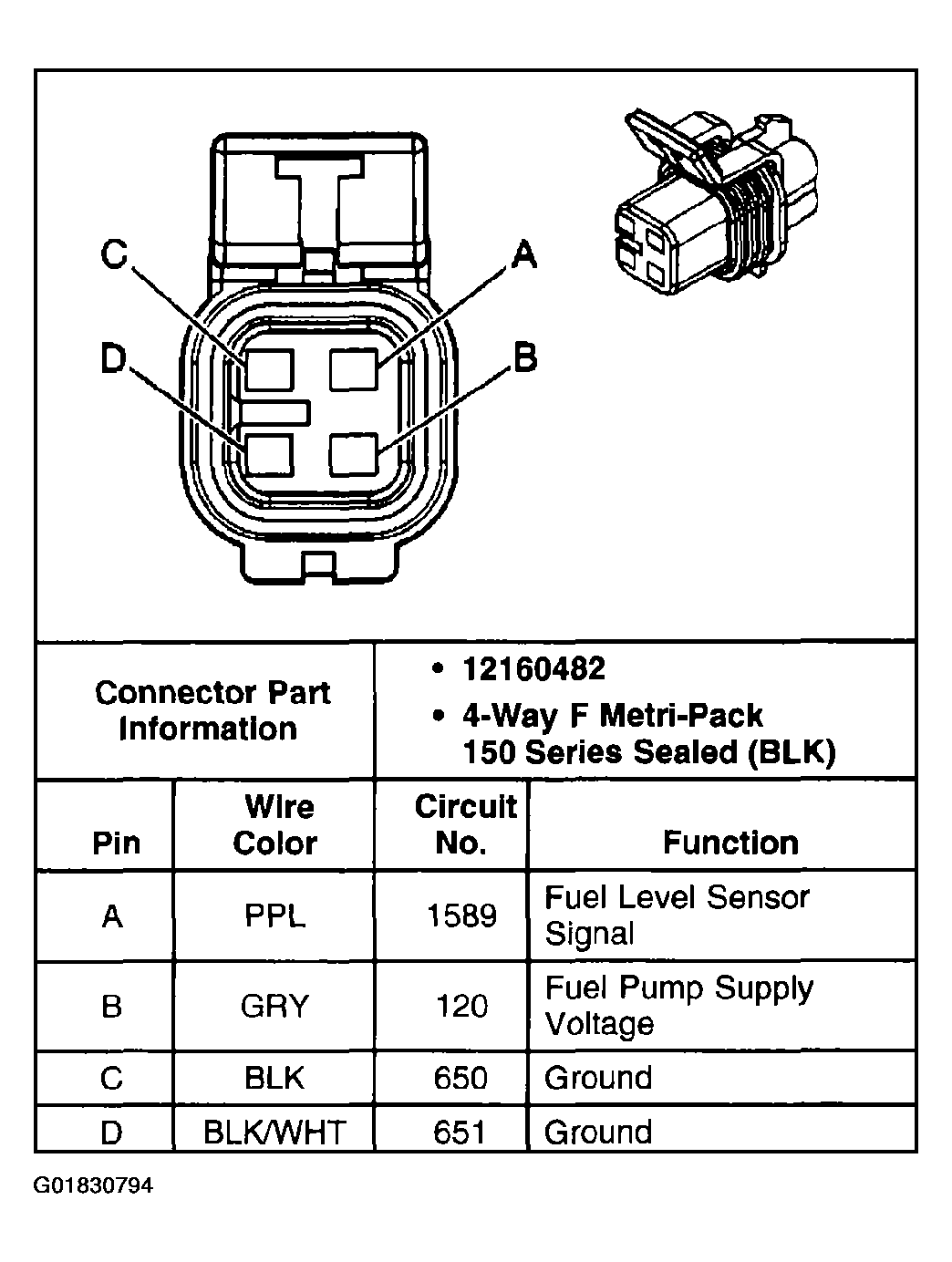

Fig 1: Fuel Pump And Sender Assembly

G01830794

Courtesy of GENERAL MOTORS CORP.
