Blower Motor Resistor Connector End View

Fig 1: Blower Motor Resistor

G98I03050

Courtesy of GENERAL MOTORS CORP.

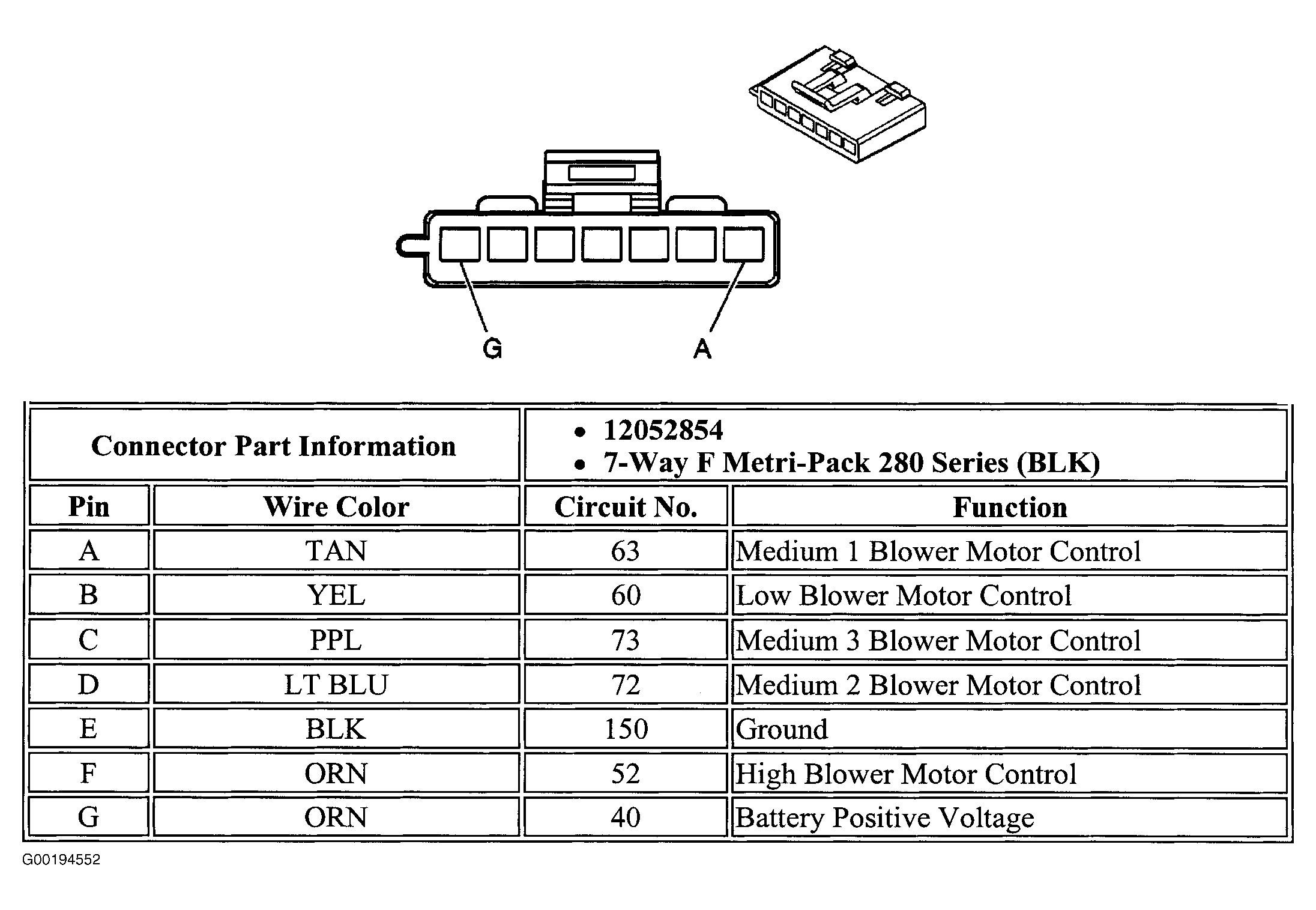

Fig 1: Blower Motor Resistor

G00194552

Courtesy of GENERAL MOTORS CORP.
