Retained Accessory Power (RAP) Component Views

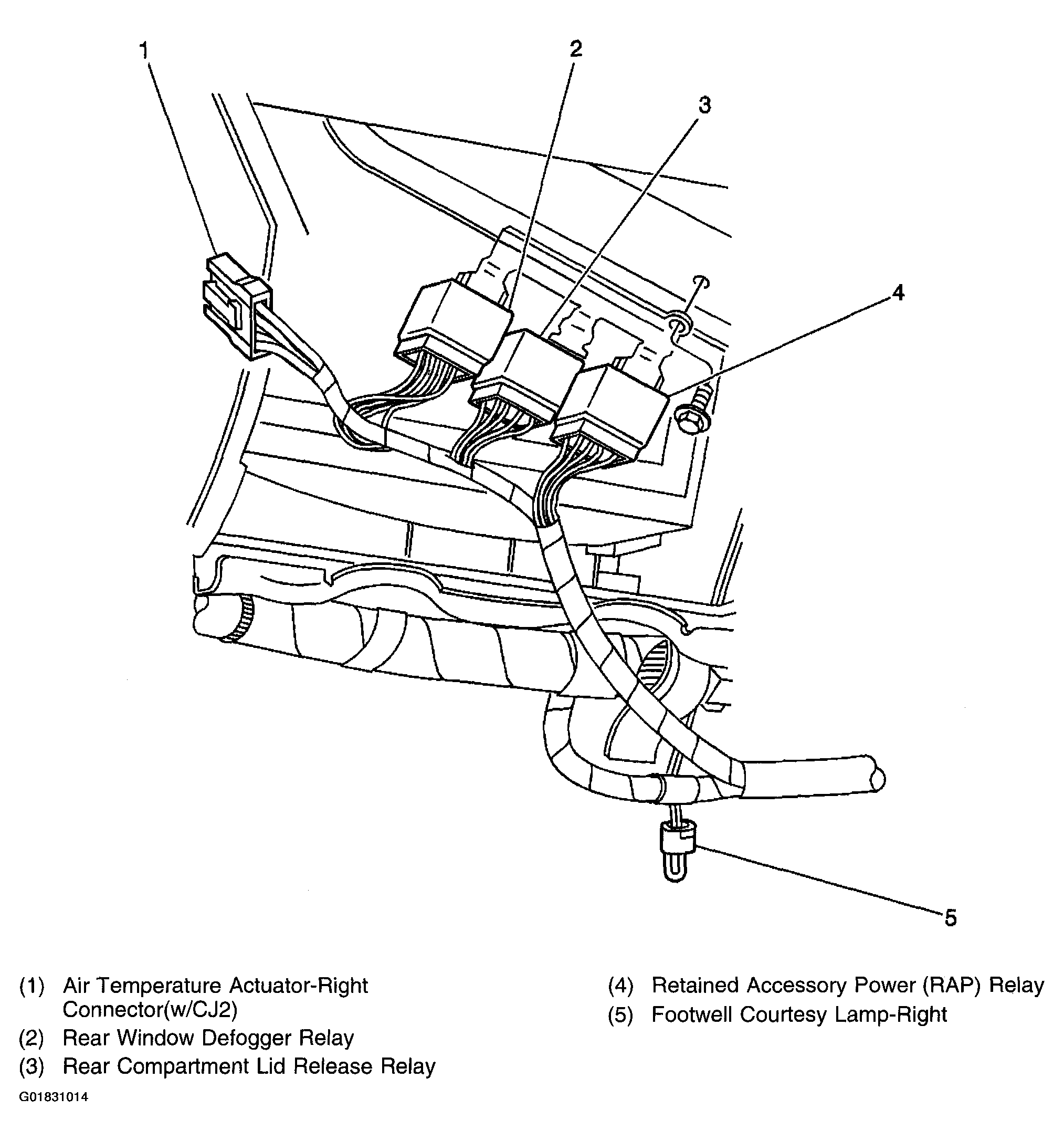

Fig 1: Right Side Of Instrument Panel Component View

G01831014

Courtesy of GENERAL MOTORS CORP.
