Removal Procedure

  1. Turn the ignition switch to the OFF position.
  2. Remove BPMV and EBCM as an assembly from the BPMV bracket. Refer to Brake Pressure Modulator Valve (BPMV) Replacement .
  3. Remove the 3 BPMV bracket nuts (1,2,3) attaching the BPMV bracket (4) to the wheel housing.
  4. Remove the BPMV bracket (4) from the vehicle.

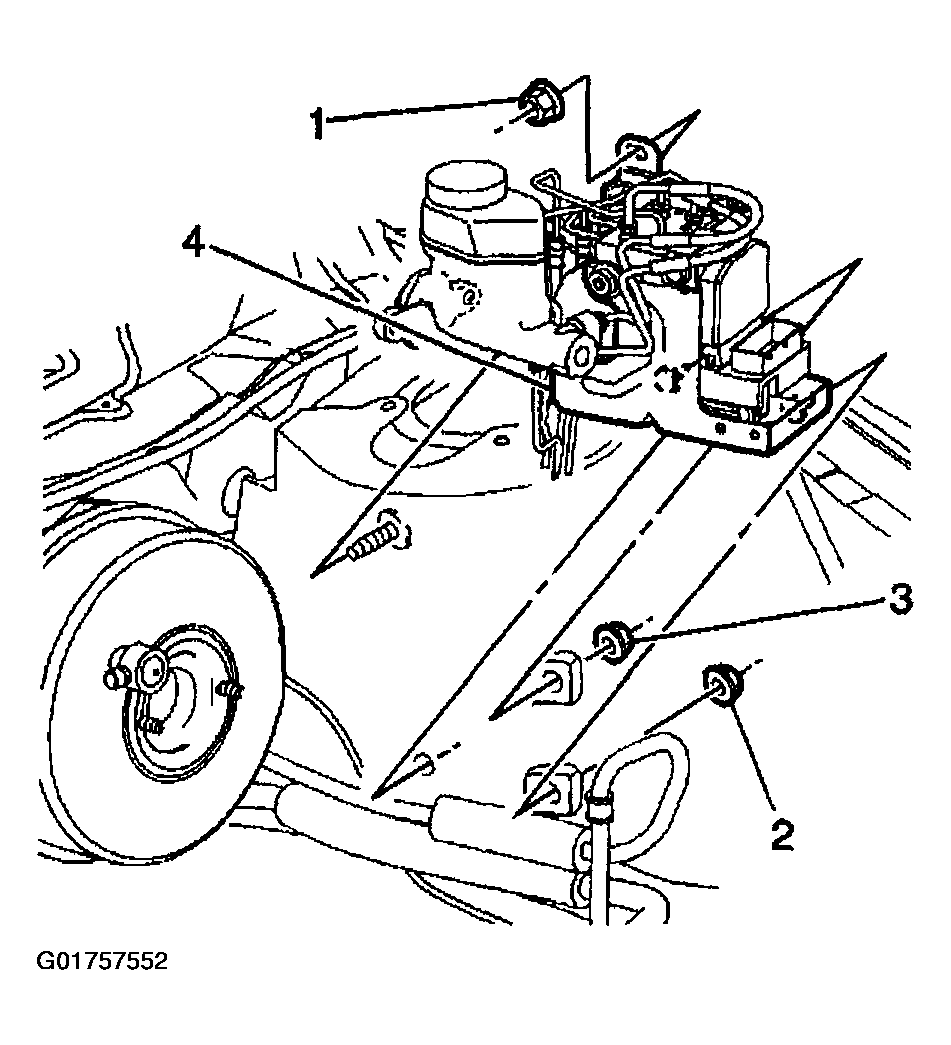

    Fig 1: Remove BPMV Bracket Nuts Attaching BPMV Bracket To Wheel Housing
    G01757552Courtesy of GENERAL MOTORS CORP.
