Test Description

The numbers below refer to step numbers on the diagnostic table.

  1. 2. Checks if the instrument panel cluster has the ability to turn the ABS indicator off or if the EBCM is sending an incorrect command to turn the ABS indicator on.

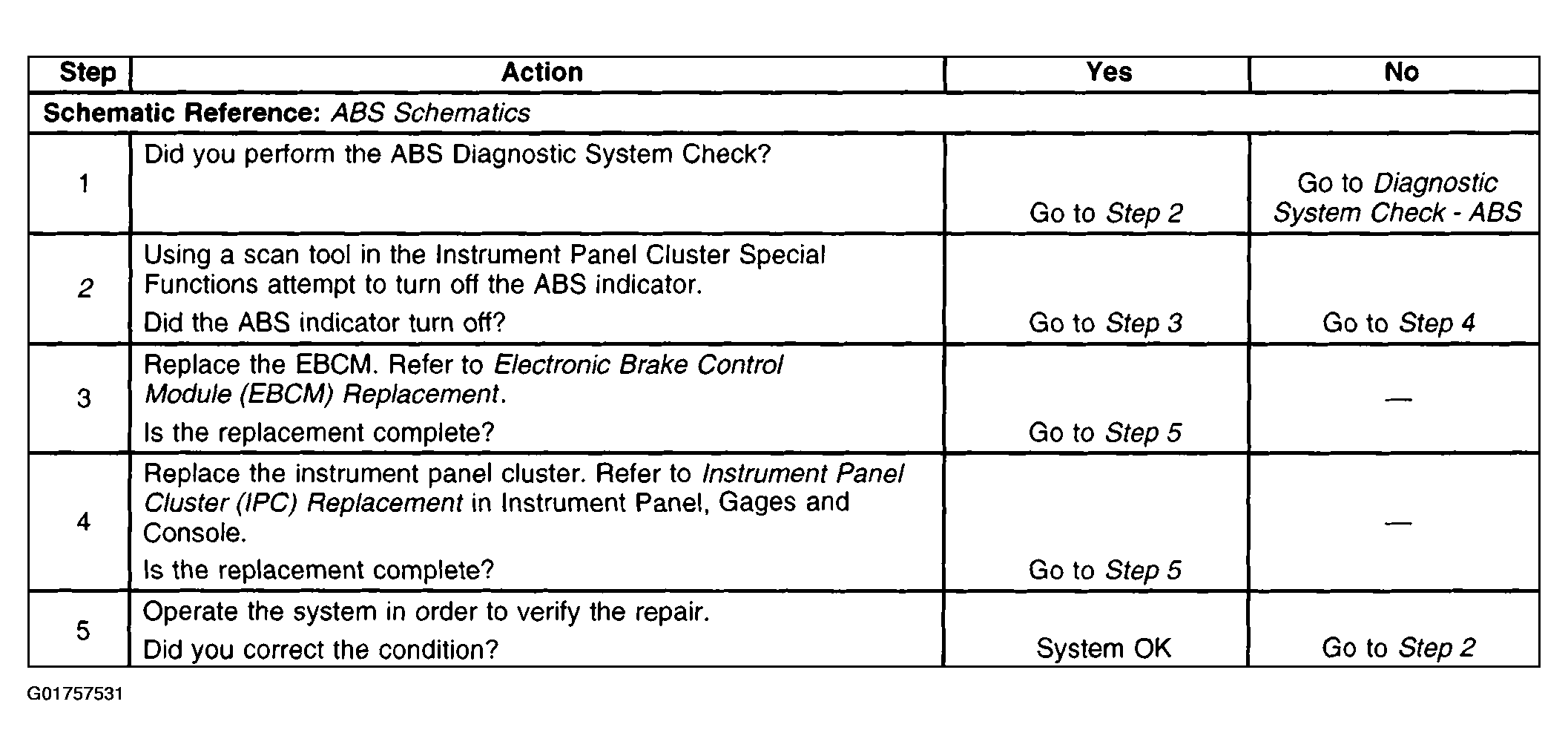

    Fig 1: ABS Indicator Always On
    G01757531Courtesy of GENERAL MOTORS CORP.
