Removal Procedure

  1. Open the rear door.
  2. Using J 36604  , remove the rear door hinge spring from the rear door hinge.
  3. Remove the door hinge spring from the vehicle.

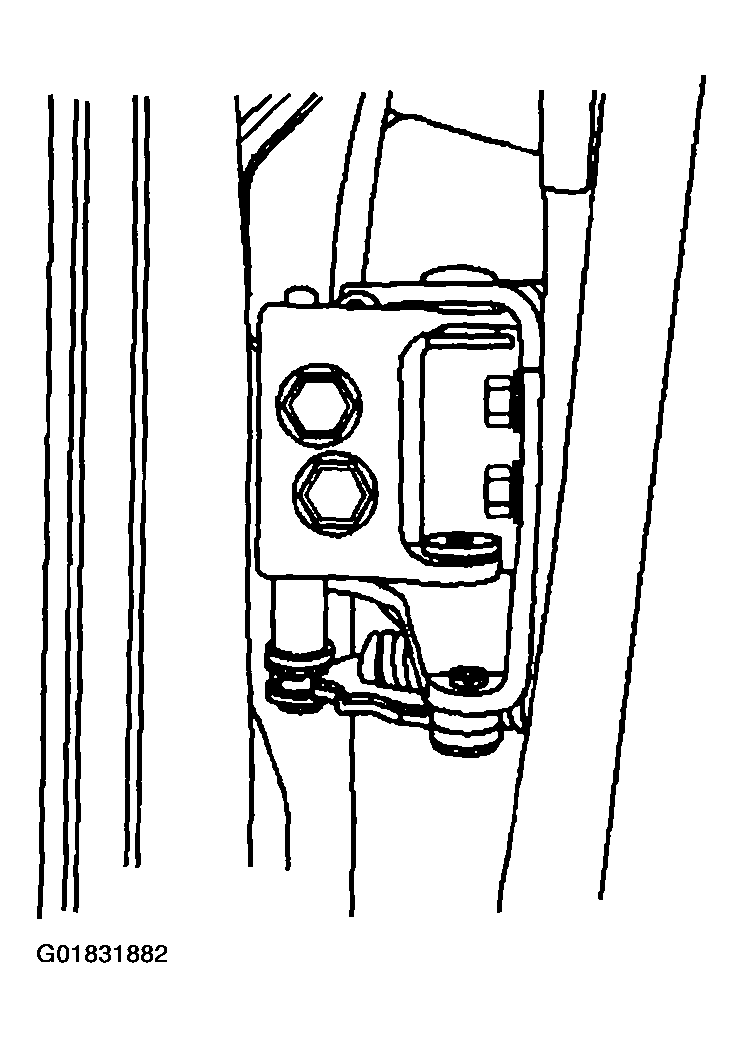

    Fig 1: Removing Rear Door Hinge Spring From Rear Door Hinge
    G01831882Courtesy of GENERAL MOTORS CORP.
