Home >> Oldsmobile >> 2002 >> Intrigue GL >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Door Replacement - Front >> Removal Procedure

Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door window belt inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  4. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  5. Remove the front door window. Refer to Window Replacement - Front Door .
  6. Remove the front door window weatherstrip. Refer to Weatherstrip Replacement - Front Door Window .

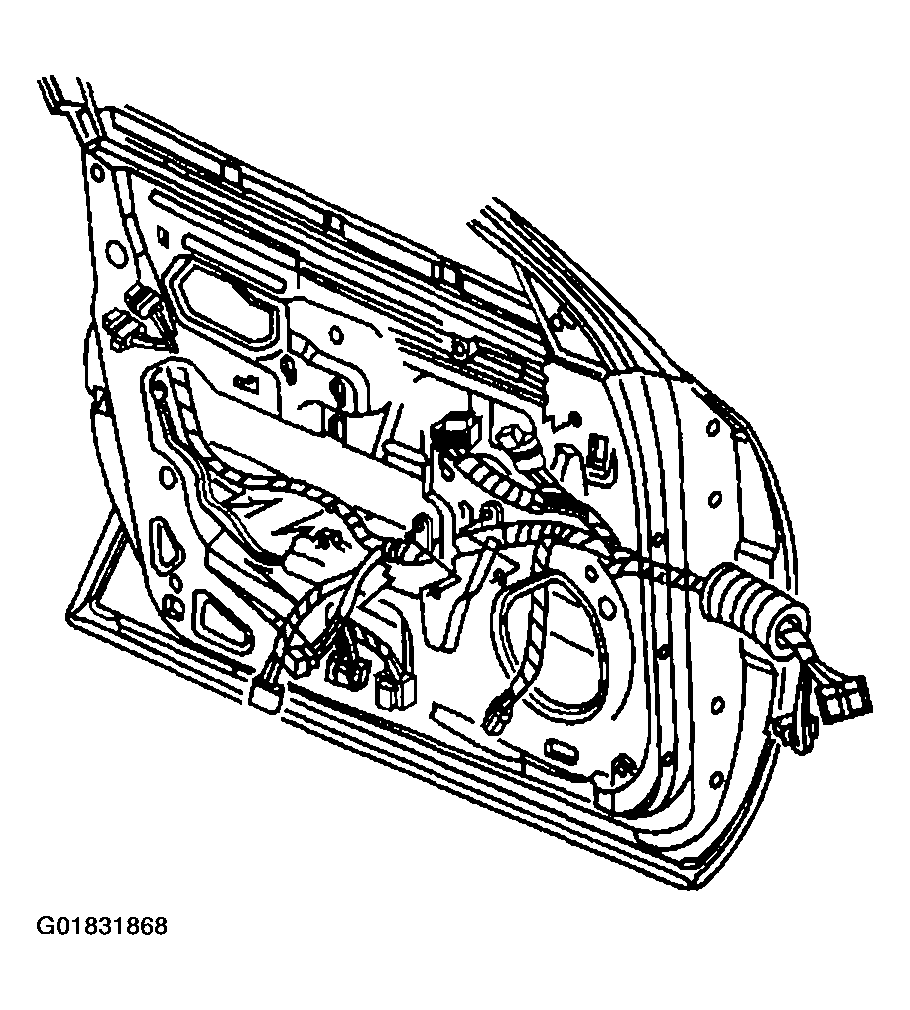

    Fig 1: Removing Front Door & Wiring Harness
    G01831868Courtesy of GENERAL MOTORS CORP.
  7. Remove the front door window regulator. Refer to Window Regulator Motor Replacement - Front Door .
  8. Remove the front door outside handle. Refer to Door Handle Replacement - Front Outside .
  9. Remove the front door inside handle. Refer to Door Handle Replacement - Front Inside .
  10. Remove the front door lock. Refer to Lock Replacement - Front Door .
  11. Remove the front door weatherstrip. Refer to Weatherstrip Replacement - Front Door .
  12. Remove the rubber conduit. Refer to Rubber Conduit Replacement - Front Door .
  13. Remove the front door wiring harness.
  14. Remove the front door bodyside moldings. Refer to MOLDING REPLACEMENT - BODY SIDE .
  15. Remove the front door.
