Removal Procedure

  1. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  2. Remove the front door window weatherstrip. Refer to Weatherstrip Replacement - Front Door .
  3. Slide the front door frame applique upwards.
  4. Remove the front door frame applique from the front door.

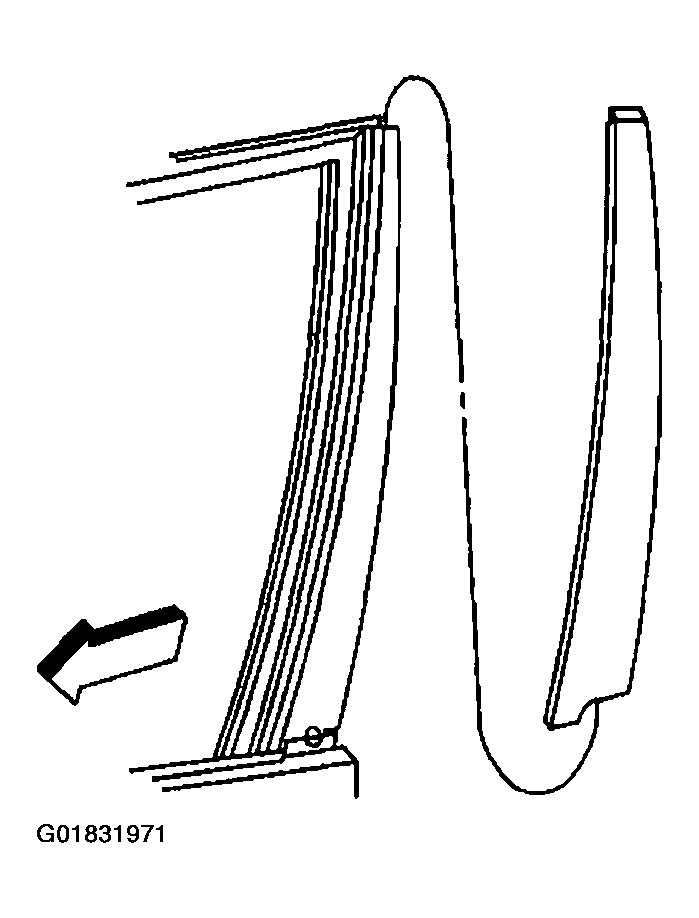

    Fig 1: Front Door Frame Applique
    G01831971Courtesy of GENERAL MOTORS CORP.
