Schematic and Routing Diagrams

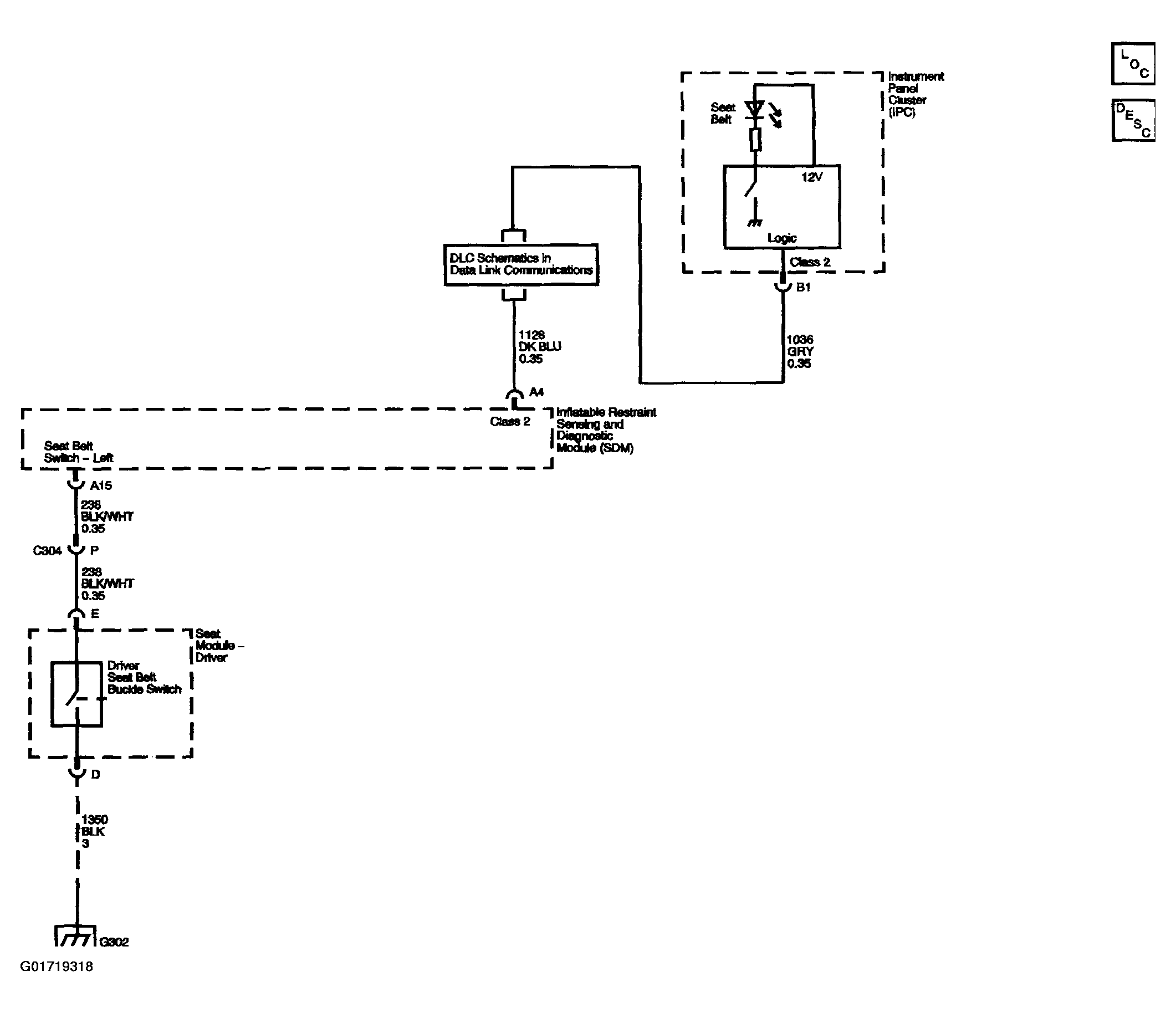

Fig 1: Seat Belt Schematics

G01719318

Courtesy of GENERAL MOTORS CORP.
