Propshaft Speed Sensor Connector End View - RR Transfer Case

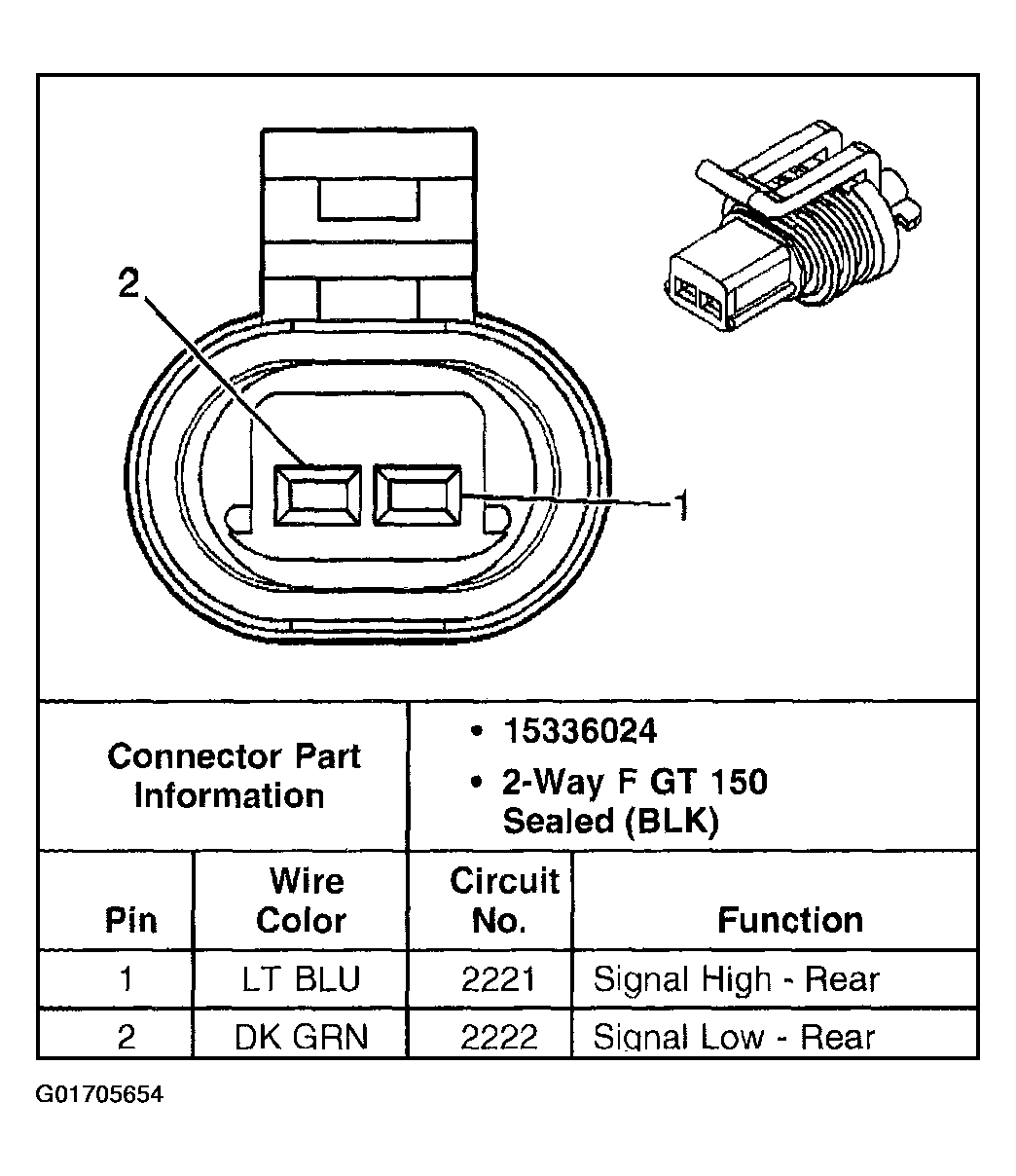

Fig 1: Propshaft Speed Sensor - RR Transfer Case

G01705654

Courtesy of GENERAL MOTORS CORP.
