Liftgate Module (LGM) Connector End View - C3

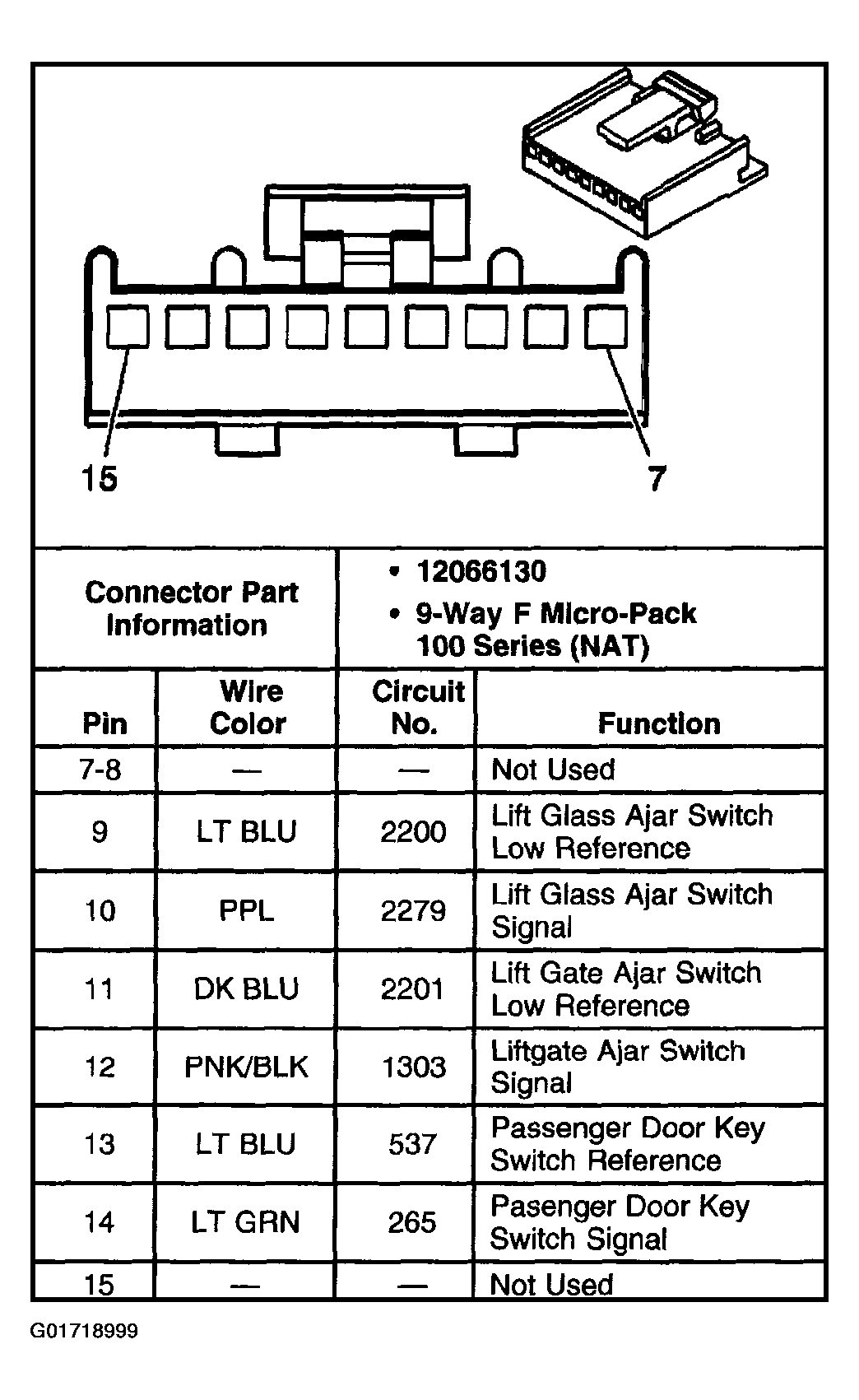

Fig 1: Liftgate Module (LGM) - C3

G01718999

Courtesy of GENERAL MOTORS CORP.
