Liftgate Module (LGM) Connector End View - C1

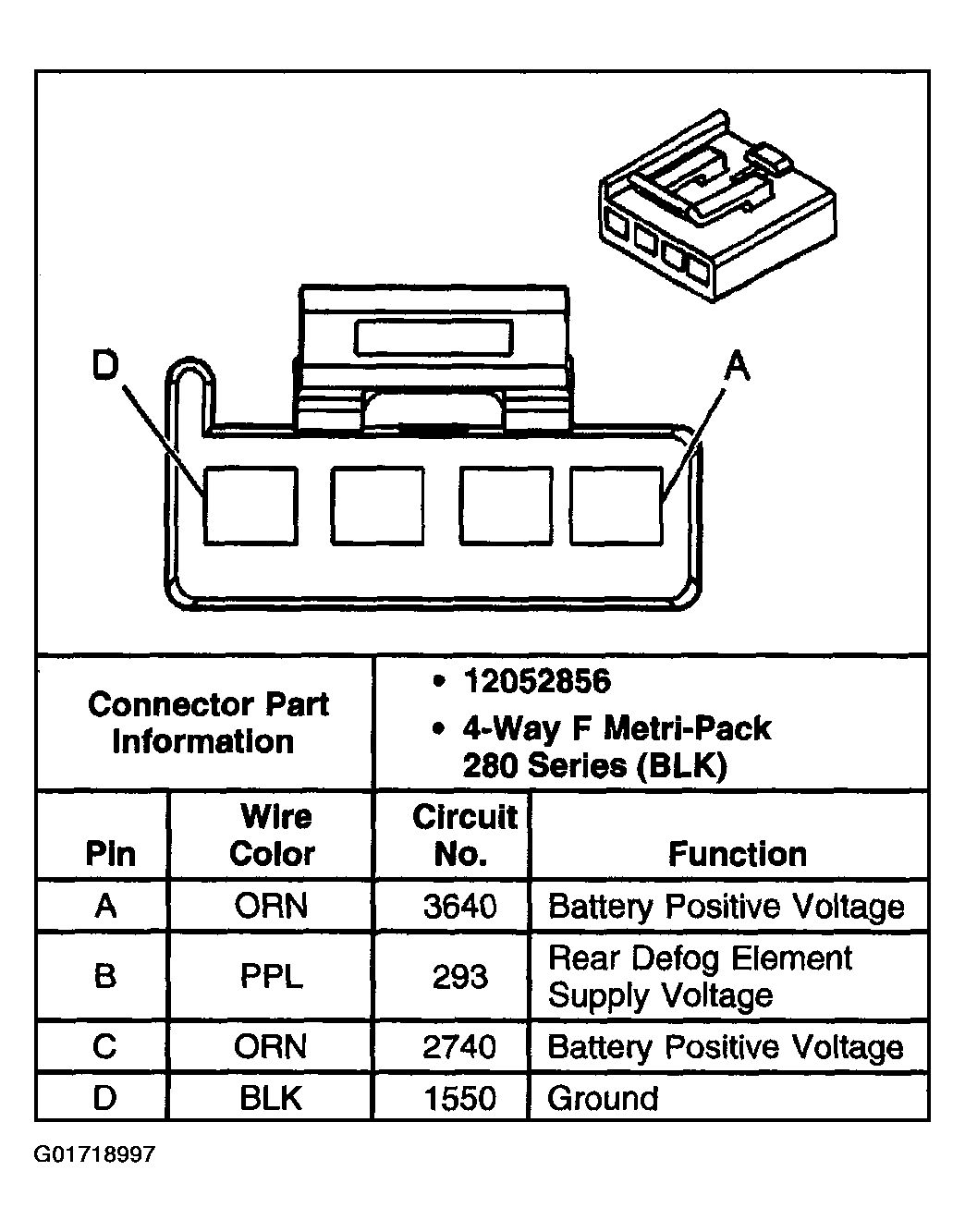

Fig 1: Liftgate Module (LGM) - C1

G01718997

Courtesy of GENERAL MOTORS CORP.
