Liftgate Ajar Switch Connector End View

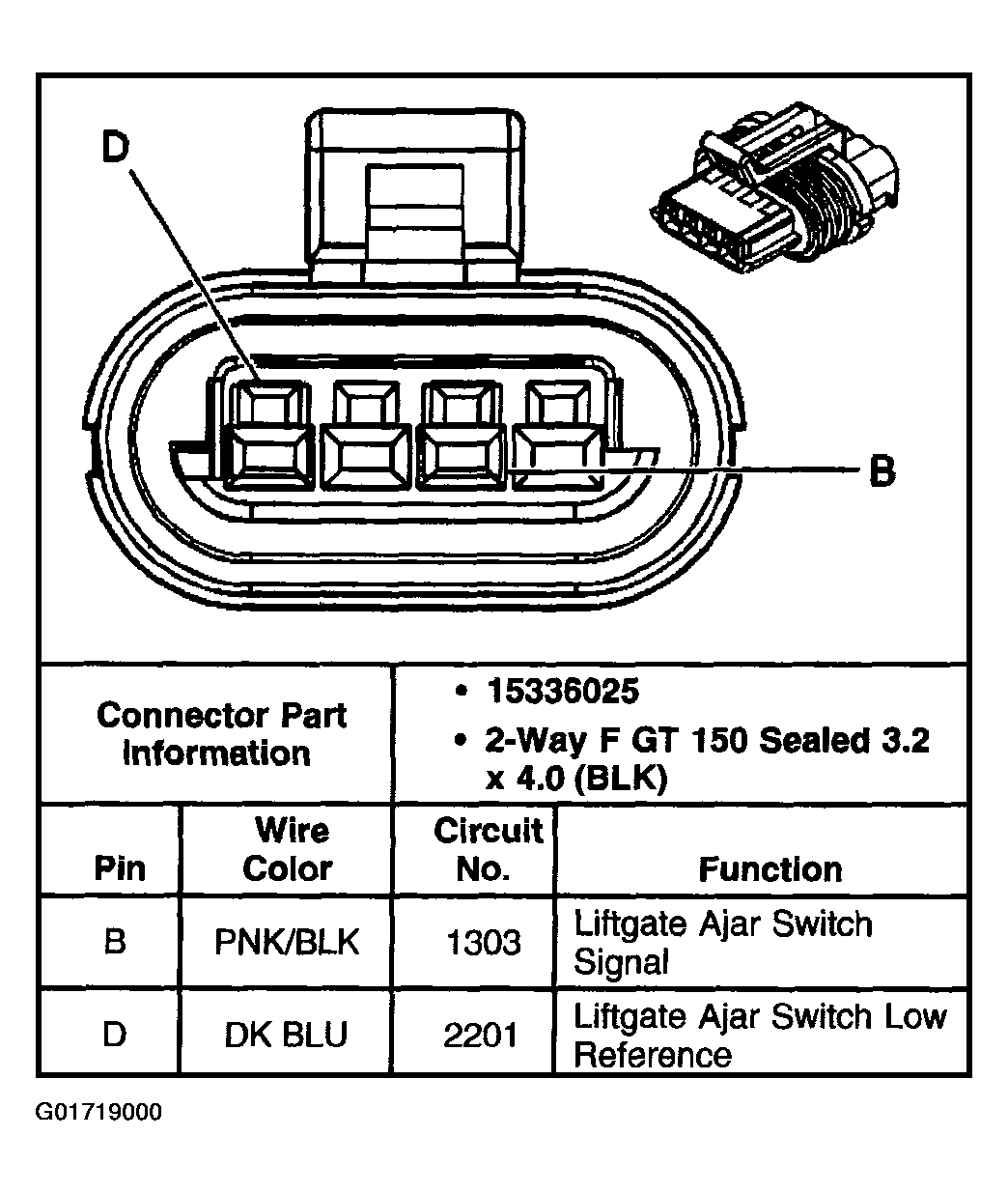

Fig 1: Liftgate Ajar Switch

G01719000

Courtesy of GENERAL MOTORS CORP.
