Front Axle Actuator Connector End View

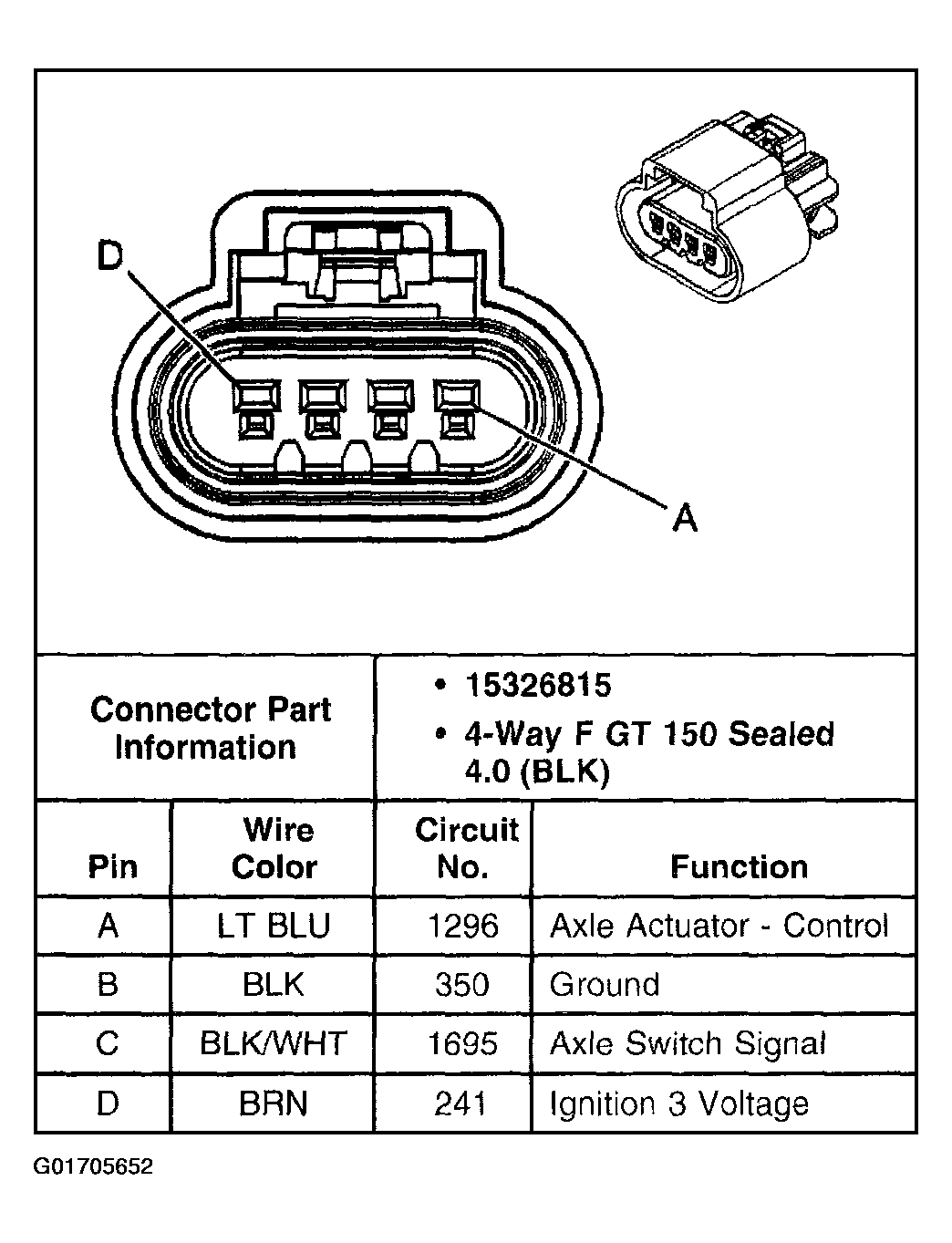

Fig 1: Front Axle Actuator

G01705652

Courtesy of GENERAL MOTORS CORP.
