Power Window Schematics

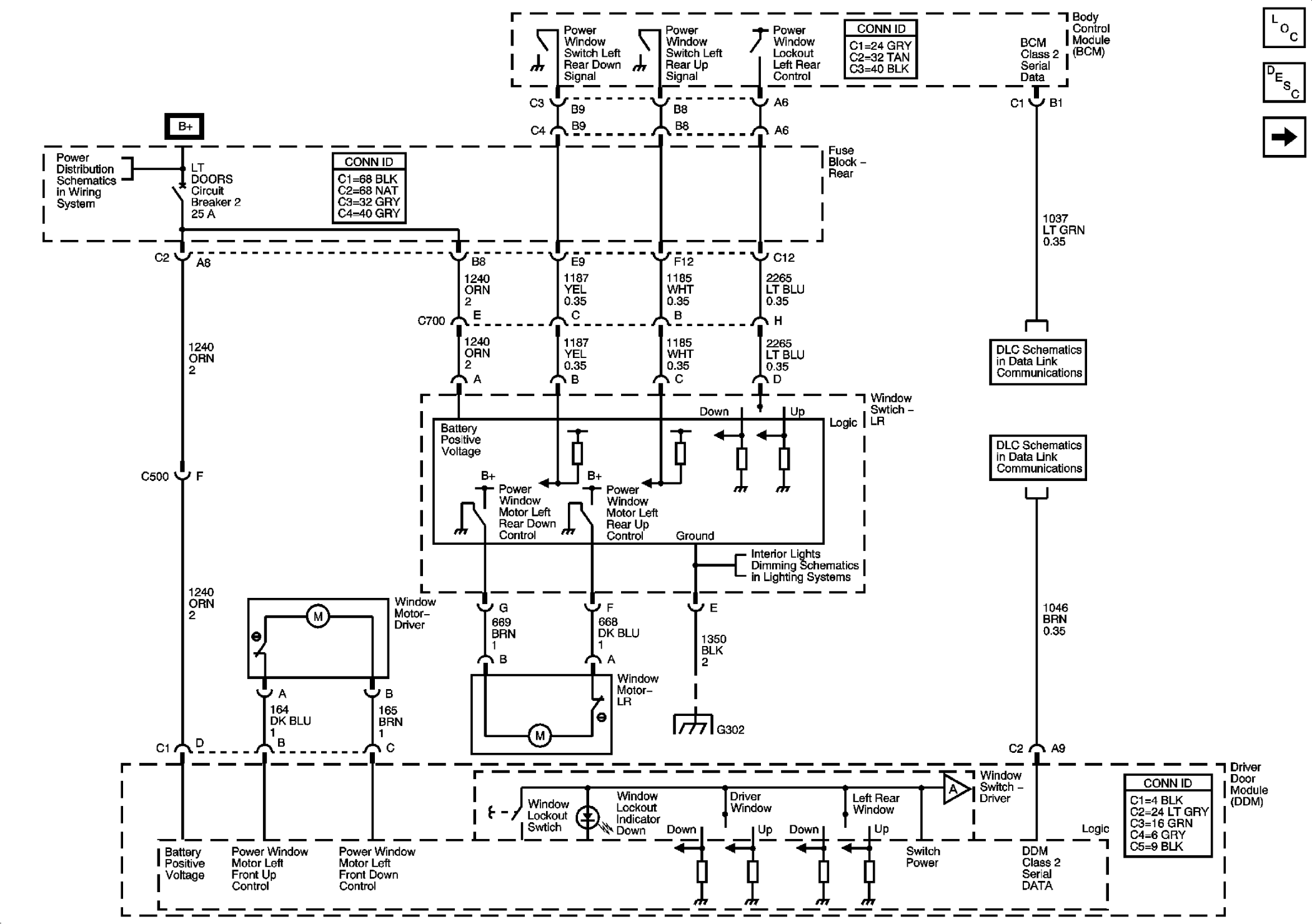

Fig 1: Power Window Schematics Left

GM743743

Courtesy of GENERAL MOTORS CORP.

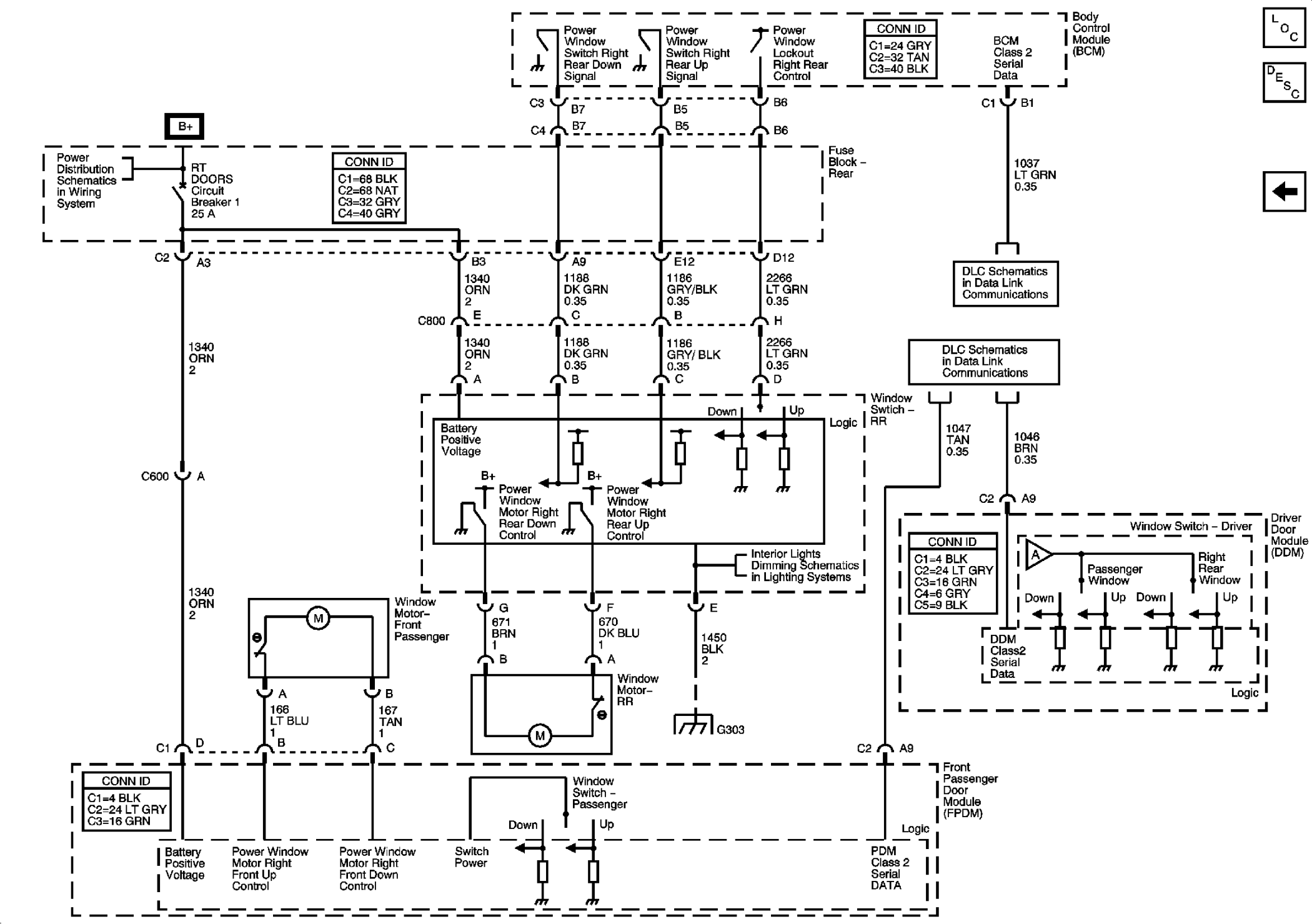

Fig 2: Power Window Schematics Right

GM890697

Courtesy of GENERAL MOTORS CORP.
