Door Lock/Indicator Schematics

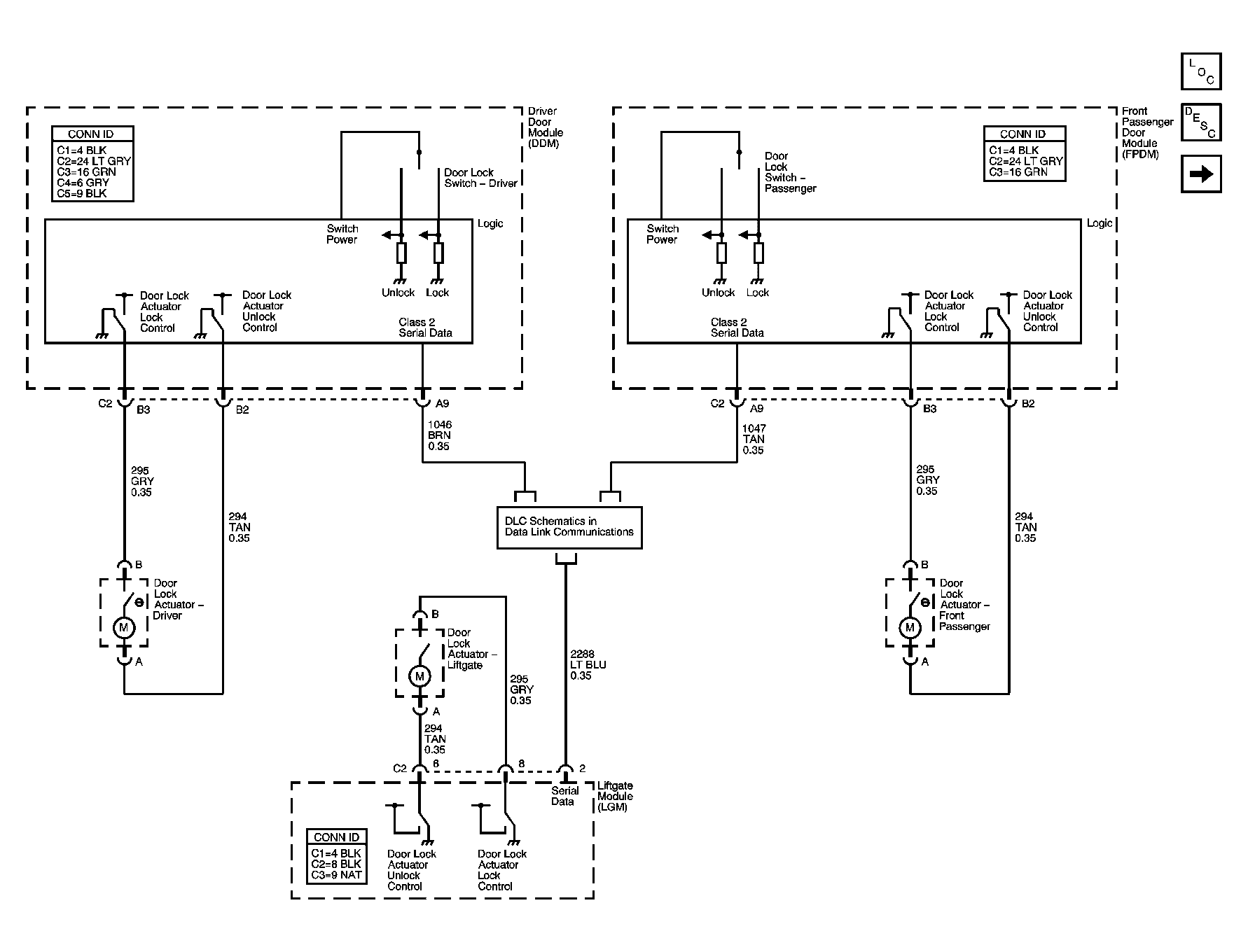

Fig 1: Door Lock/Indicator Schematics Front and Liftgate
GM743730Courtesy of GENERAL MOTORS CORP.

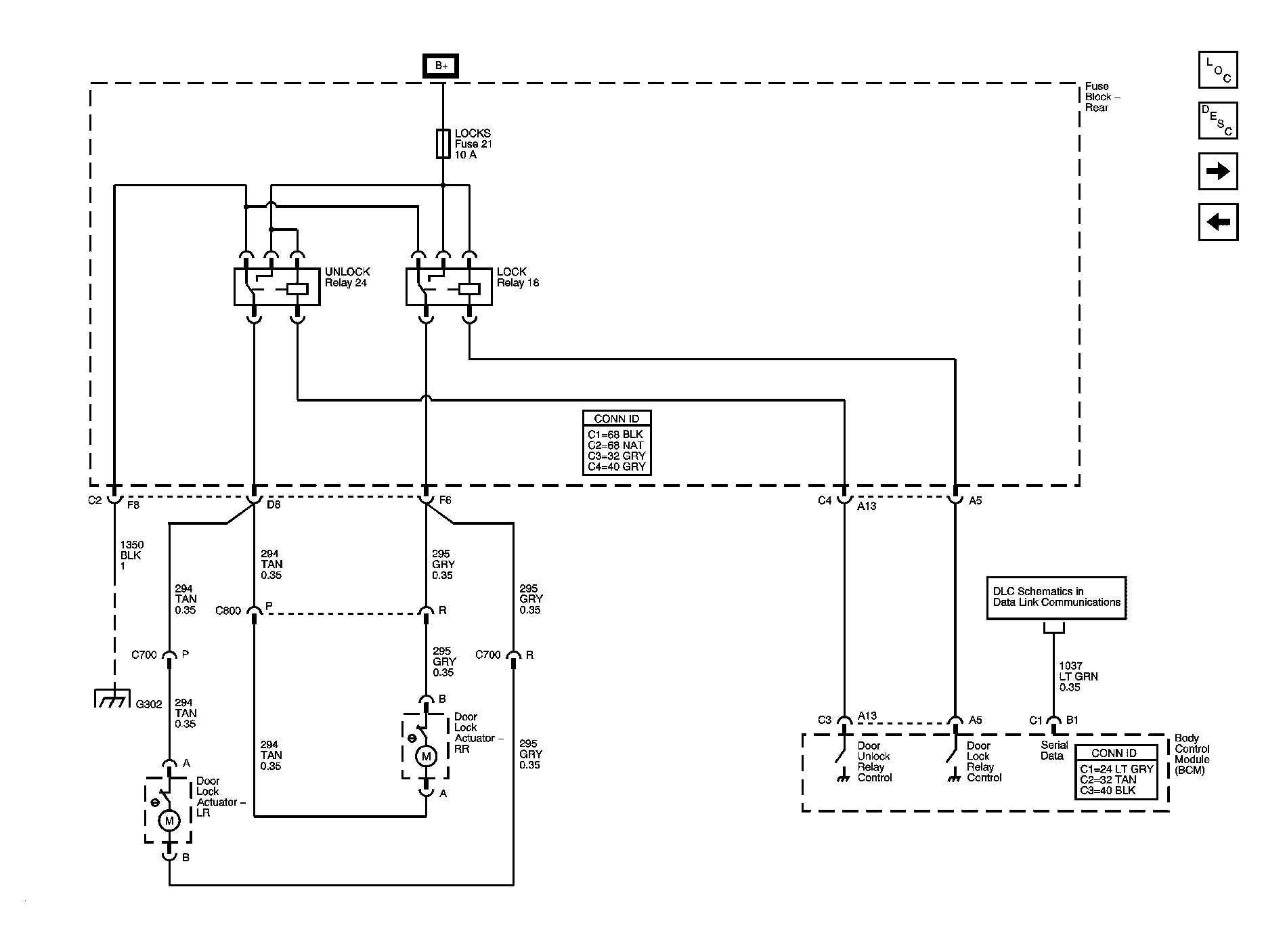

Fig 2: Door Lock/Indicator Schematics Rear
GM743731Courtesy of GENERAL MOTORS CORP.

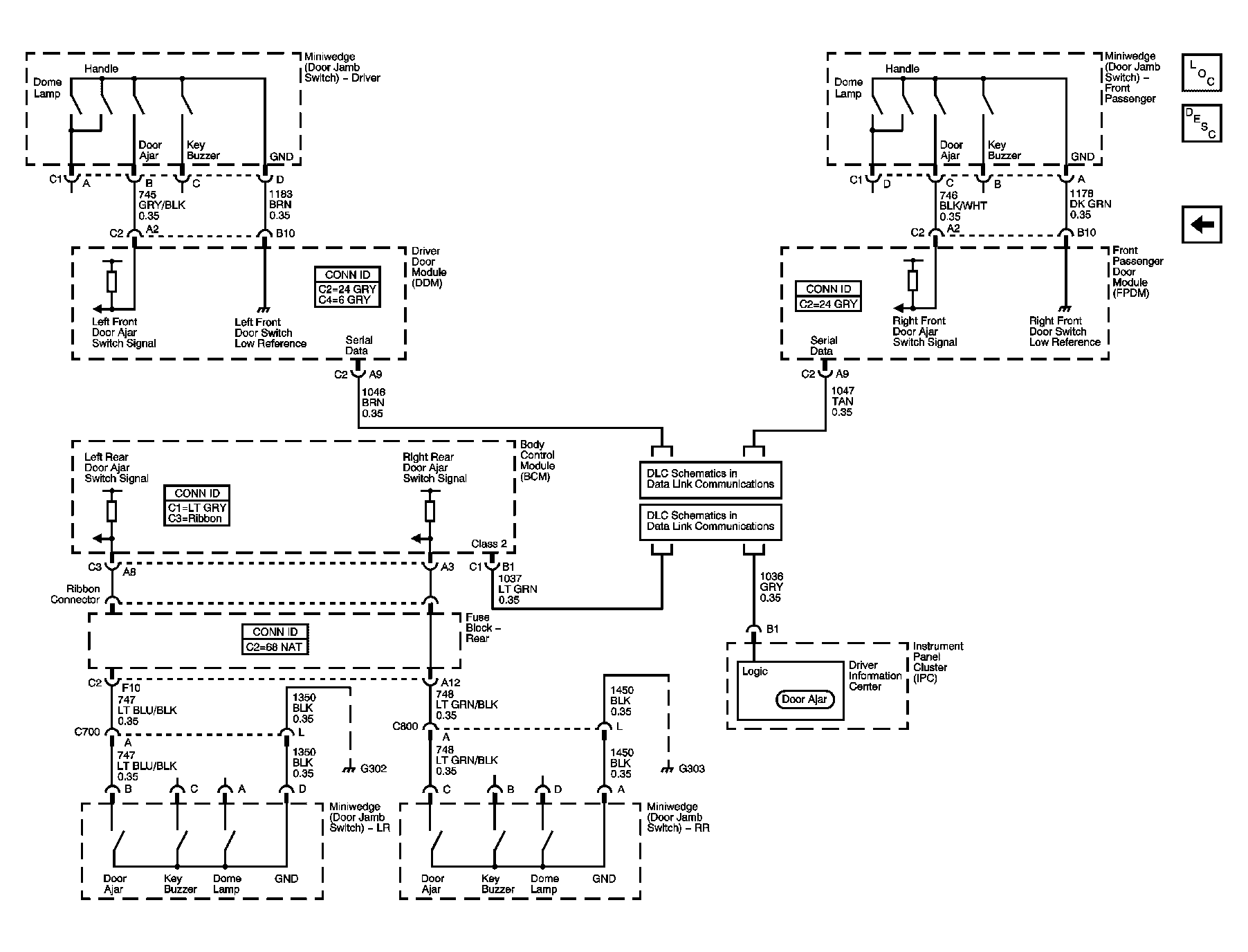

Fig 3: Door Ajar Warning Schematics
GM788120Courtesy of GENERAL MOTORS CORP.
