Removal Procedure

  1. Remove the 4 screws that retain the rear console to the roof panel.
  2. Lower the rear console from the headliner.
  3. Remove the rear console from the vehicle.

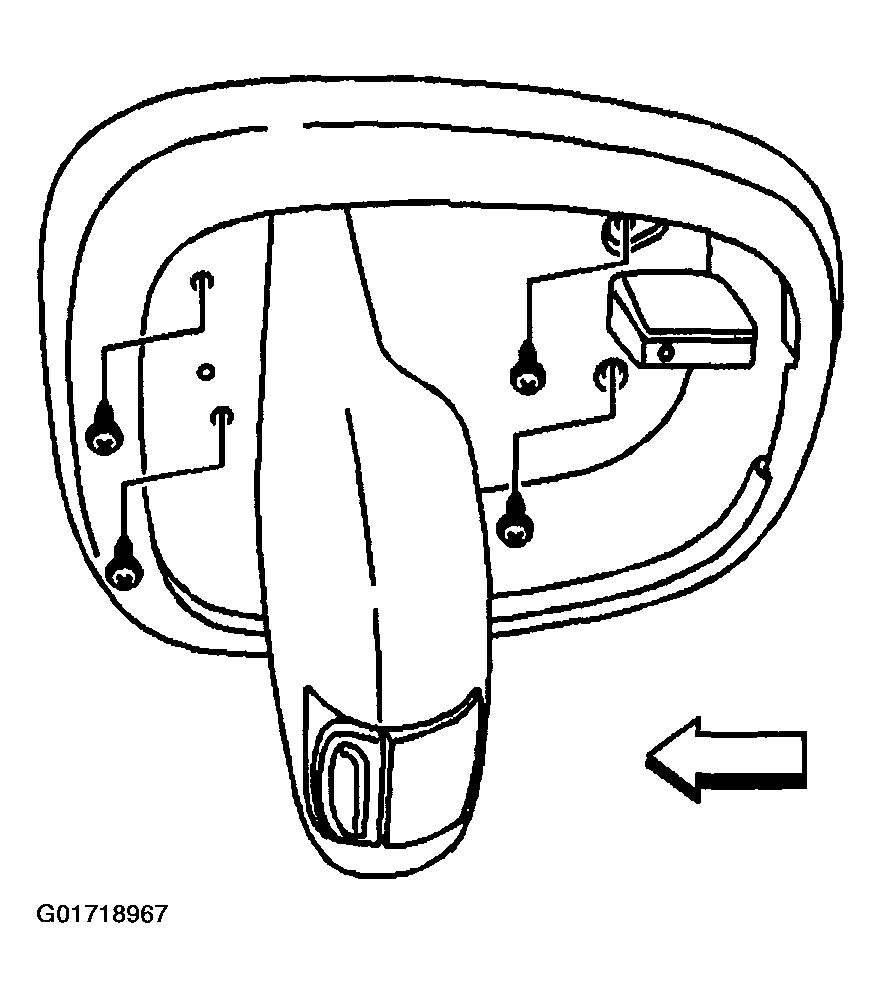

    Fig 1: Removing Rear Console Retaining Screws
    G01718967Courtesy of GENERAL MOTORS CORP.
