Schematic And Routing Diagrams

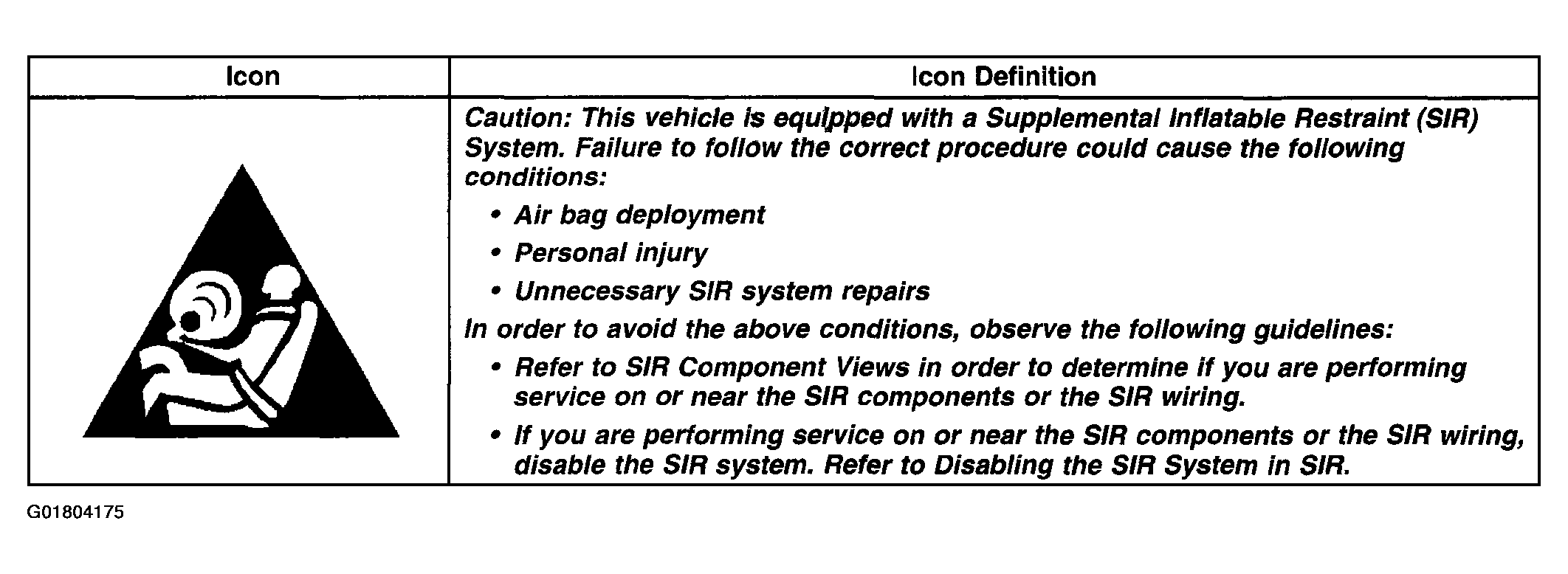

Fig 1: Seat Belt Schematic Icons

G01804175

Courtesy of GENERAL MOTORS CORP.

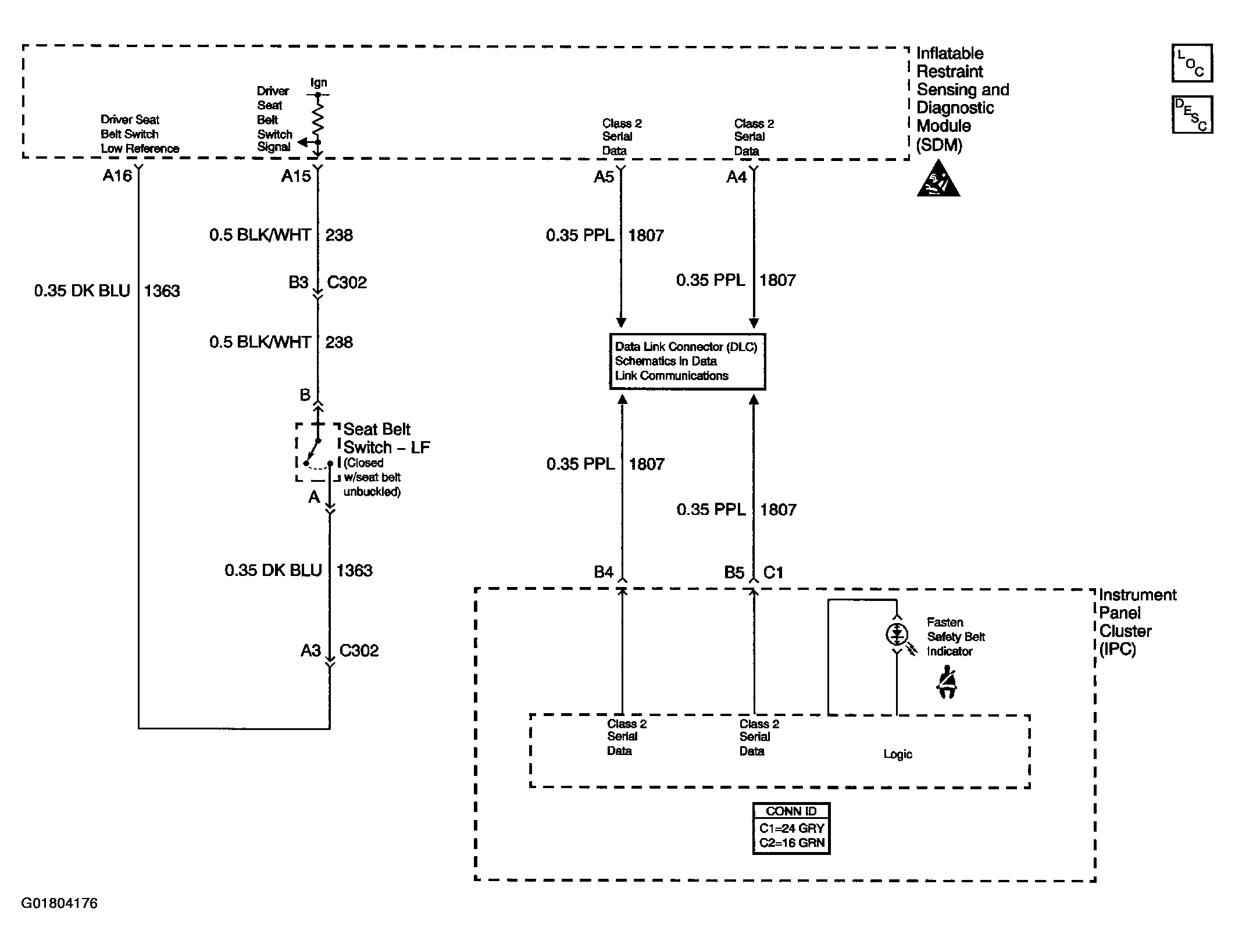

Fig 2: Seat Belt Schematics

G01804176

Courtesy of GENERAL MOTORS CORP.
