Vehicle Communication Integration Module (VCIM) Connector End View C1

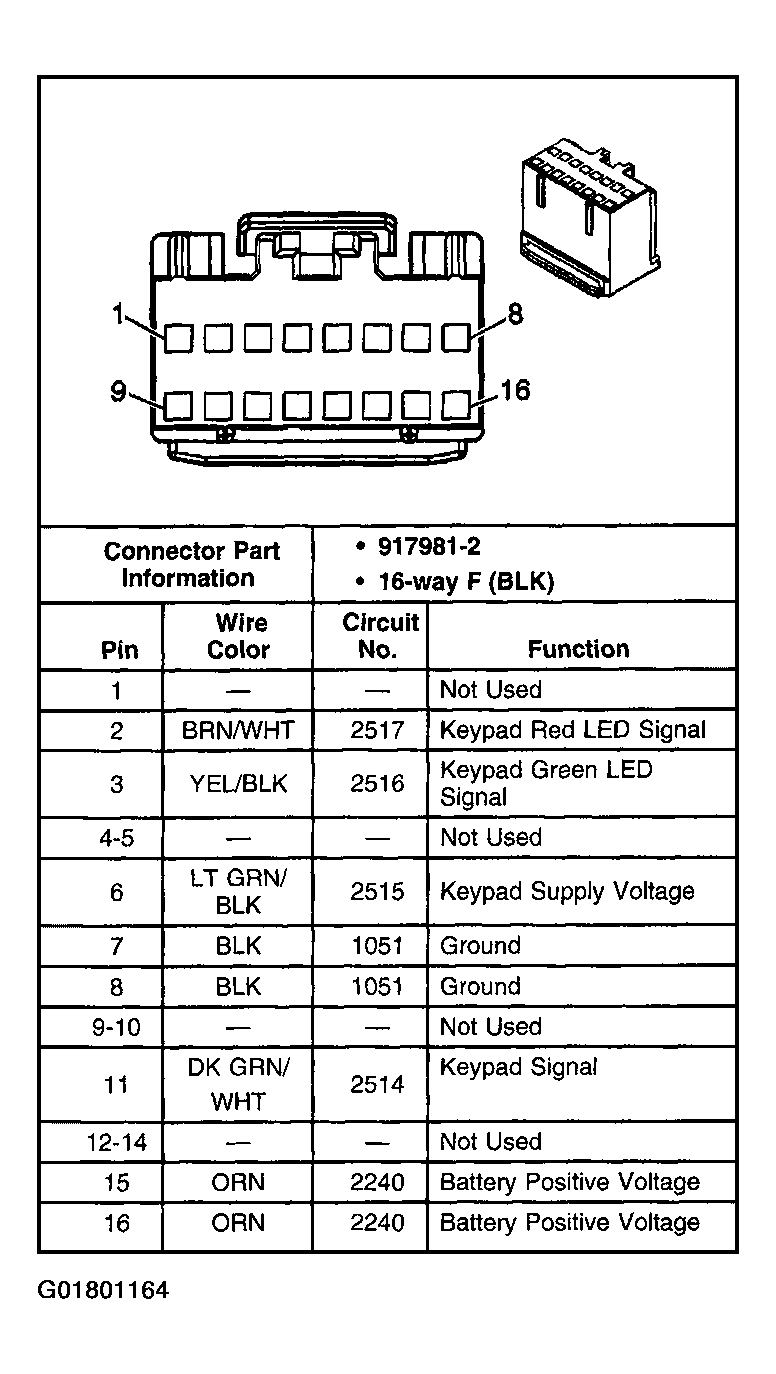

Fig 1: Vehicle Communication Integration Module (VCIM) C1

G01801164

Courtesy of GENERAL MOTORS CORP.
