Power Sunroof Express Module Connector End View C2

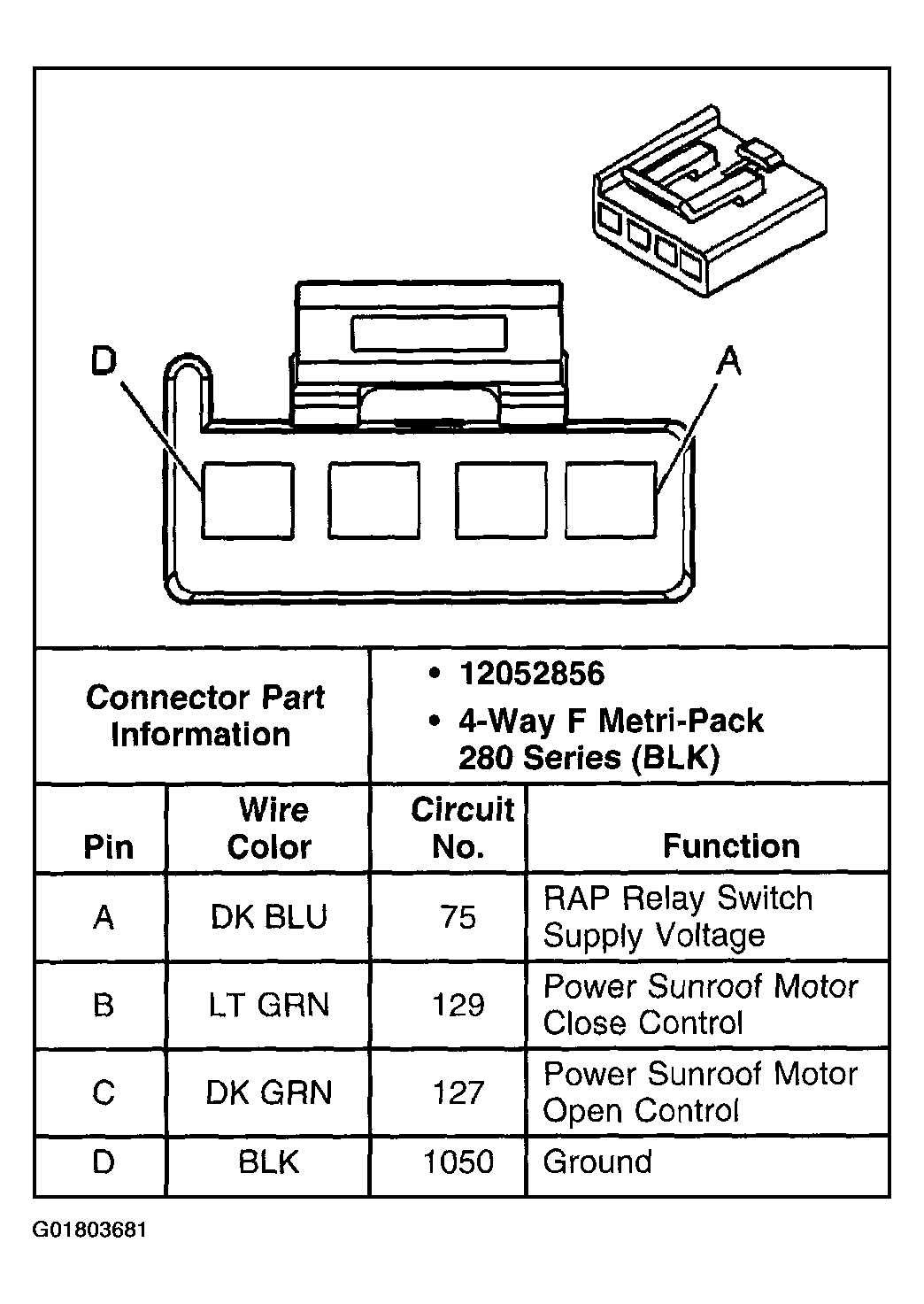

Fig 1: Power Sunroof Express Module C2

G01803681

Courtesy of GENERAL MOTORS CORP.
