Control Valve Body: Reassembly

To reassemble valve body components, reverse disassembly procedure. Ensure all components are installed in original locations.

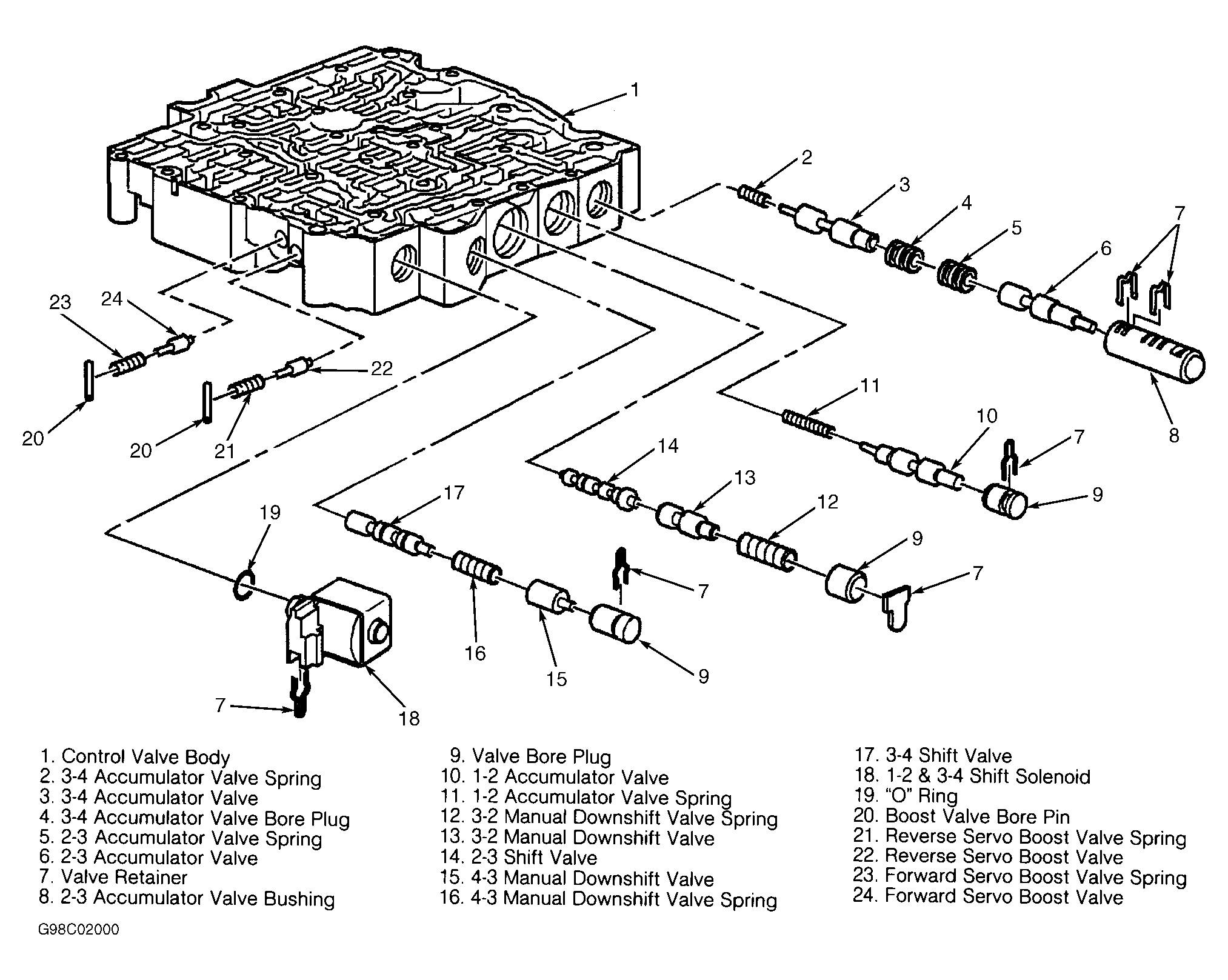

Fig 1: Exploded View Of Control Valve Body Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

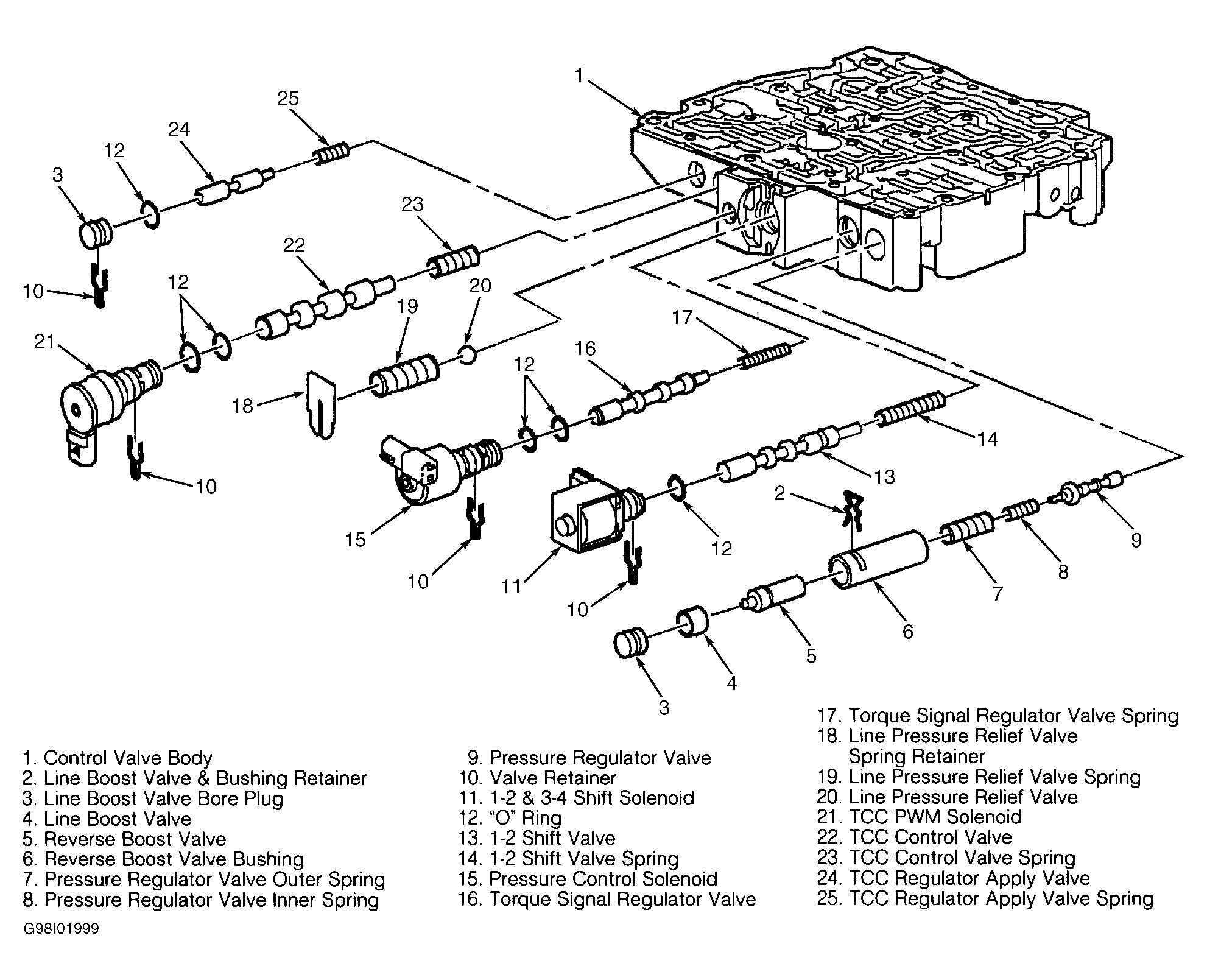

Fig 2: Exploded View Of Control Valve Body Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
