Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb(s) to the high-mounted stop lamp socket(s).
  2. Install the lamp socket(s) to the high-mounted stop lamp, then rotate clockwise to secure.

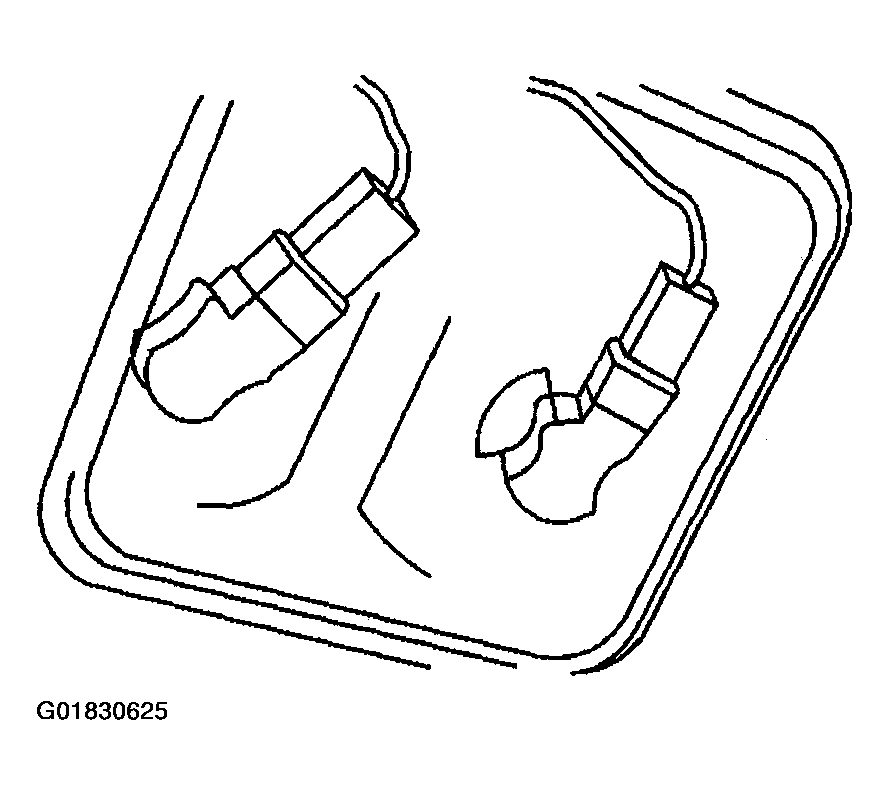

    Fig 1: Installing Lamp Sockets To High Mounted Stop Lamp & Bulbs
    G01830625Courtesy of GENERAL MOTORS CORP.
  3. Position the high-mounted stop lamp vent to the rear window panel.

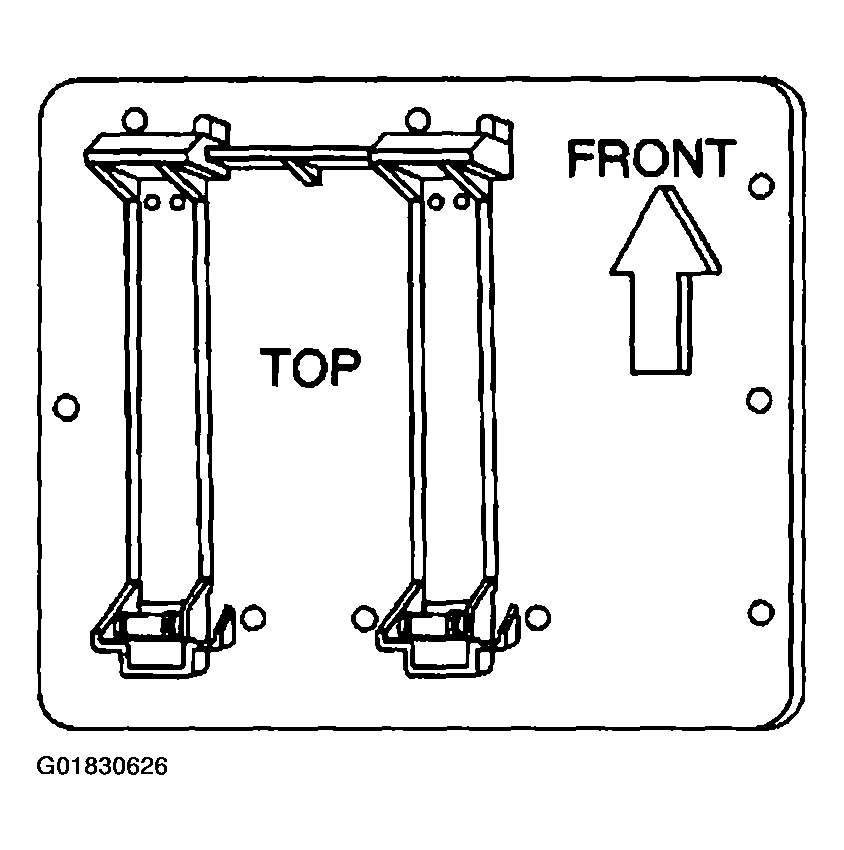

    Fig 2: Positioning High Mounted Stop Lamp Vent To Rear Window Panel
    G01830626Courtesy of GENERAL MOTORS CORP.
  4. Install the high-mounted stop lamp vent to the underside of the rear window panel pressing into place until fully seated.
  5. Close the rear compartment.

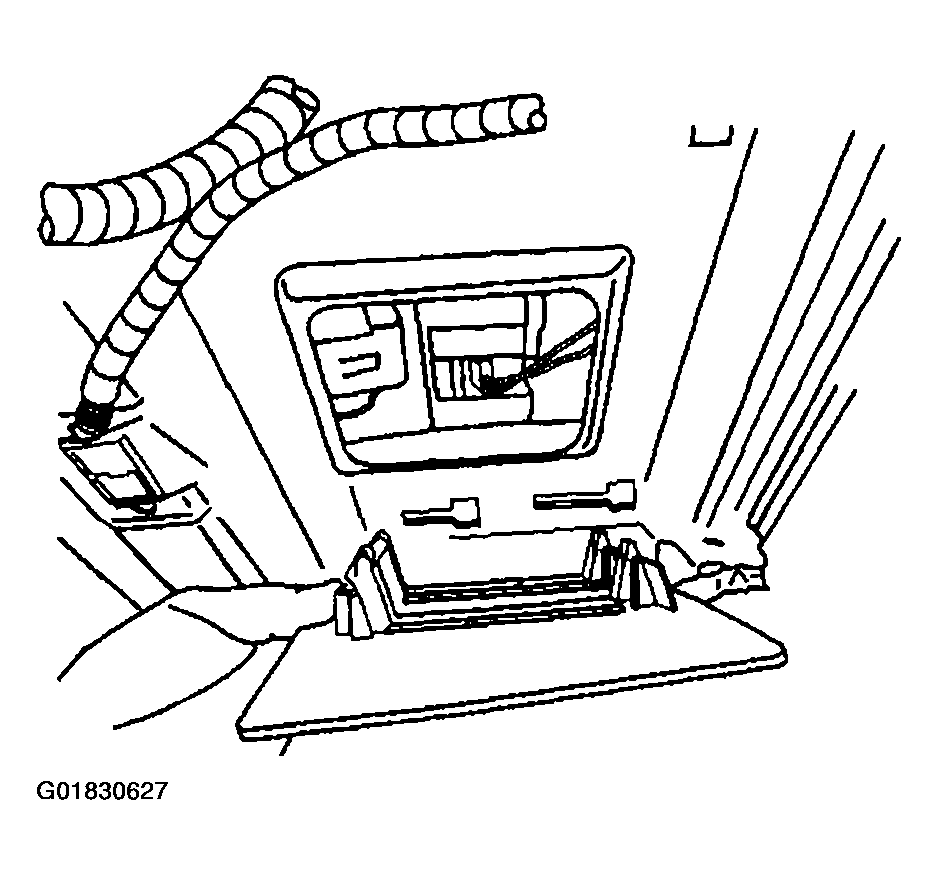

    Fig 3: Installing High Mounted Stop Lamp Vent
    G01830627Courtesy of GENERAL MOTORS CORP.
