Test E: Power Windows Are Inoperative From Left Front Switch

To perform test, see Fig 1 .

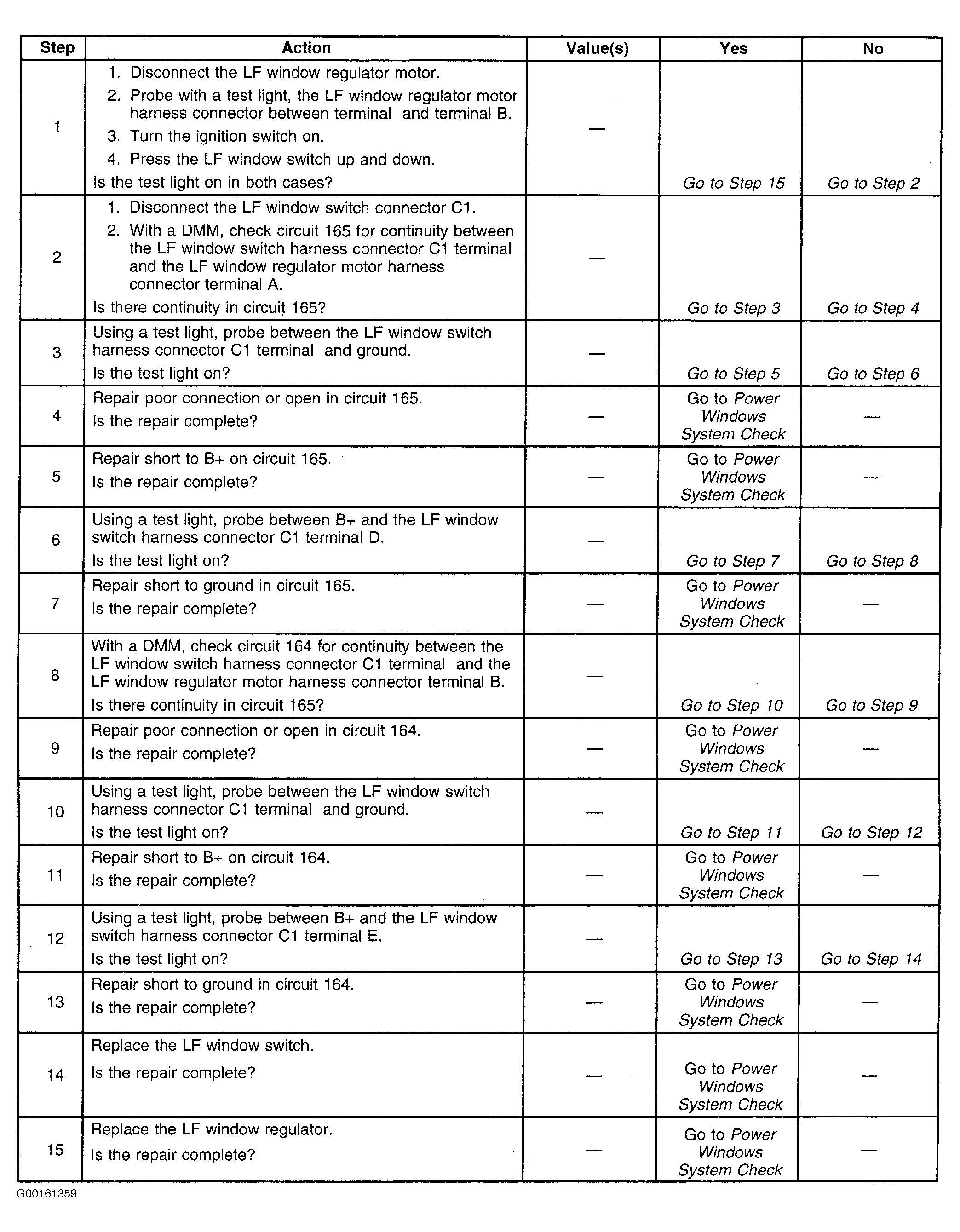

Fig 1: Power Windows Are Inoperative From Left Front Switch

G00161359

Courtesy of GENERAL MOTORS CORP.
