Removal & Installation (Front)

  1. Remove the door trim panel. Refer to DOOR TRIM PANEL REPLACEMENT .
  2. Remove water deflector. Disconnect electrical connectors. Remove door lock actuator screws. Remove door lock module nuts/bolts. Remove door lock module from door. To install, reverse removal procedure. Tighten door lock module nuts/bolts to 89 INCH lbs. (10 N.m).

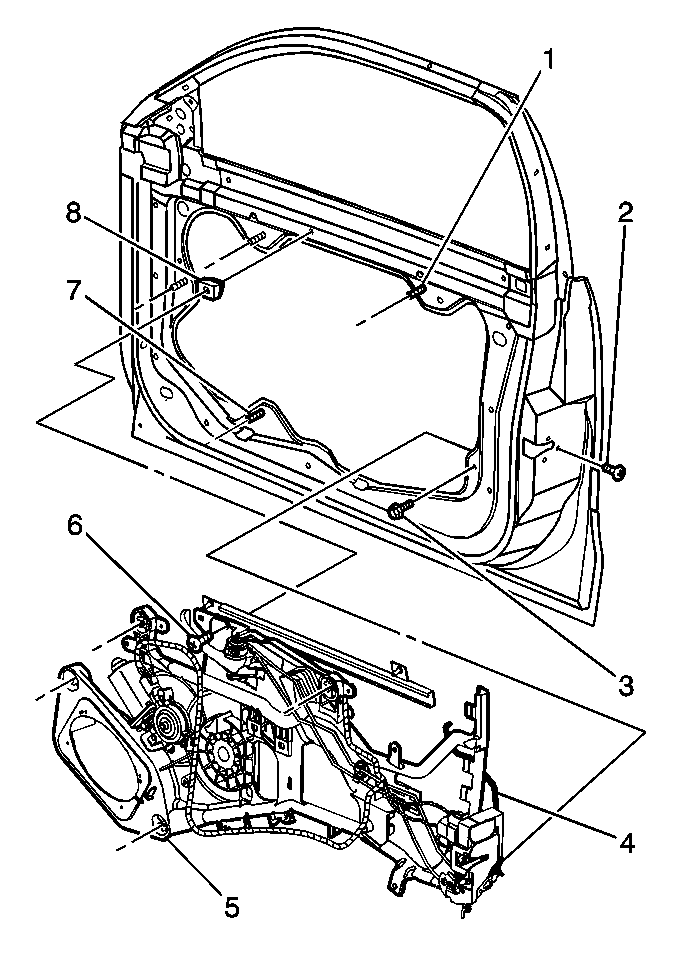

    3. Fig 1: View of Door Control Module (Includes Window Motor)
    GM276372Courtesy of GENERAL MOTORS CORP.
